Figure 5-5 shows a PC at a remote location connected to 4 nodes through a Public Switched Telephone
Network. Each of the four nodes is connected via a different communication path.
Figure 5-6 shows a PC at a remote location connected to 4 nodes, where all nodes are in the same
network. The nodes communicate Network Management configuration information via the Facility
Data Link.
* Null modem cable may be required.
** Public Switched Telephone Network
PC
MODEM
RS232 cable
MODEM
NODE 1
MODEM
NODE 2
MODEM
NODE 3
MODEM
NODE 4
*
*
*
*
PSTN **

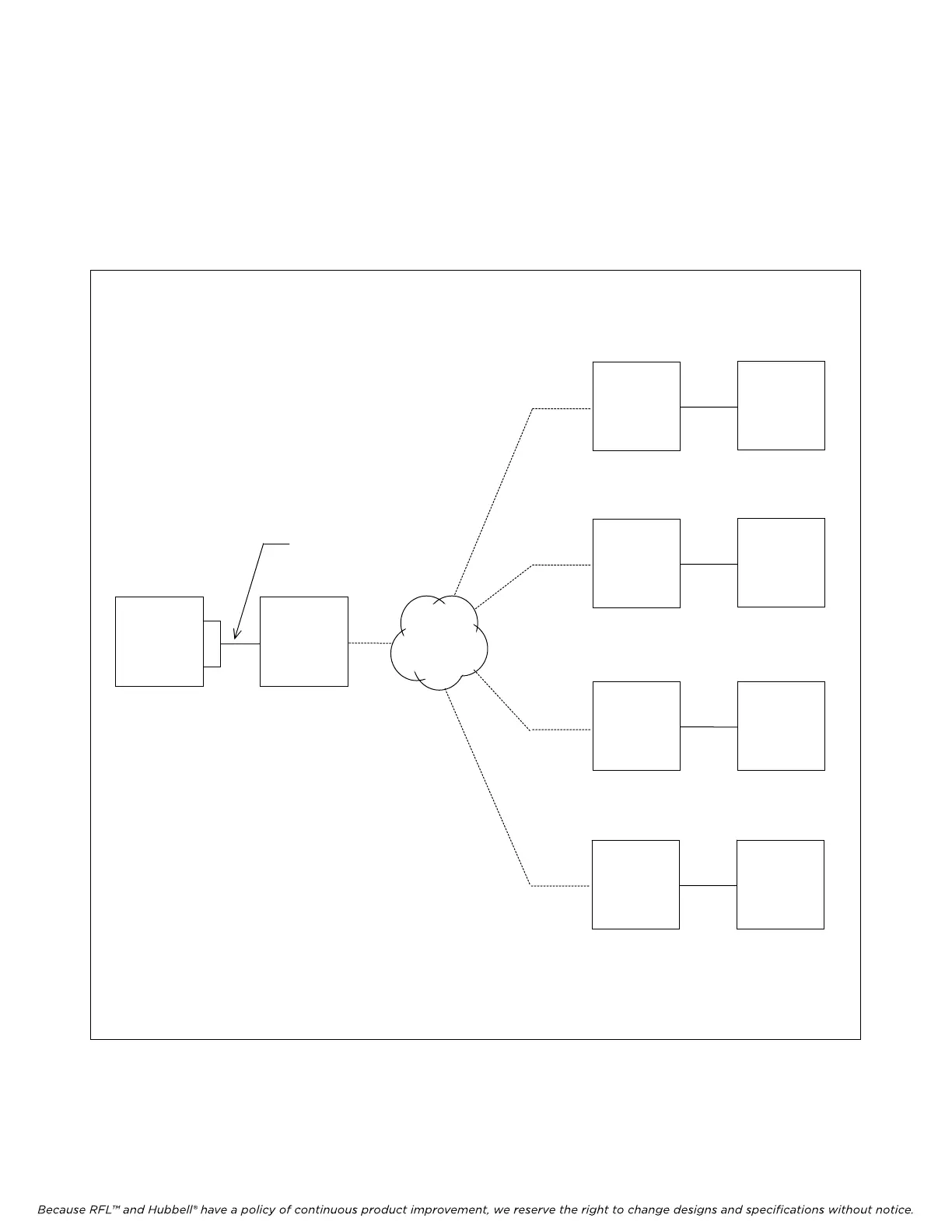

Figure 5-5. PC at a remote location connected to 4 nodes, where each node is a different network
