2.4.1 SYSTEM STATUS INDICATORS AND THE ACO SWITCH
When the IMUX 2000 M-DACS Shelf front door is closed, four LED indicators are visible. These
LEDs are labeled: POWER, NORMAL, ALERT, and ALARM, as shown in Figure 2-28, and indicate
the operational status of the M-DACS multiplexer at a glance. Table 2-14 gives a description of these
indicators and also includes a description of the power supply fail indicator and the alarm cutoff
switch.
POWER
NORMAL
ALERT
ALARM
Intelligent Multiplexer
IMUX 2000
RFL Electronics Inc.

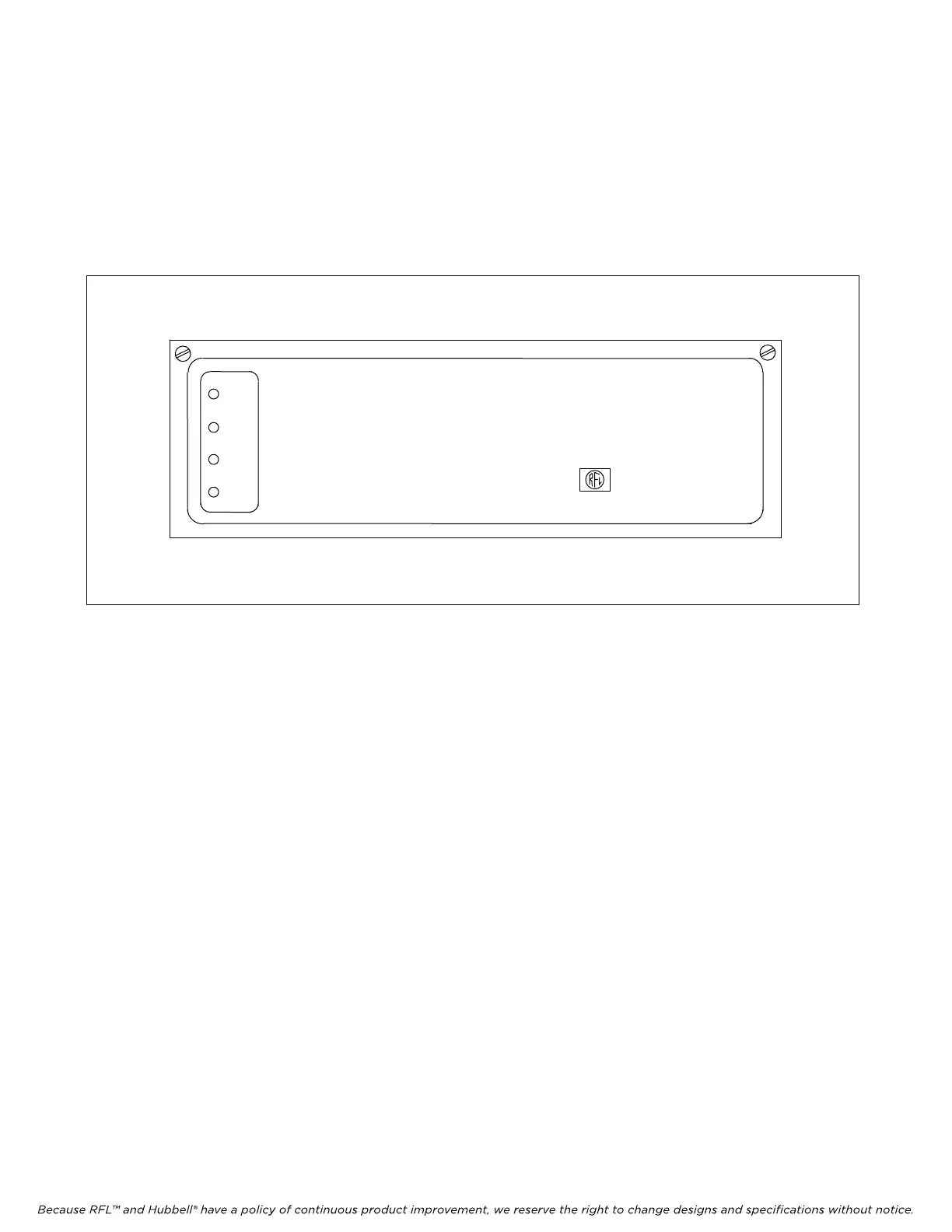

Figure 2-28. Front view of M-DACS shelf with door closed, showing the system status indicators
