5.5.3.7.7 CM4 CONFIGFURATION AND STATUS WINDOW
The CM4 Configuration and Status window is shown in Figure 5-29. This is where the user can view or
change CM4 settings. Refer to Table 5-2 in paragraph 5-7 for a list of CM4 parameters. The user can
change parameters by making selections in the control boxes. The actual values appear immediately to
the right of the control boxes.When finished with either viewing or changing both DI-A and DI-B CM4
settings, click on E
xit to return to the Display/Change Node window as shown in Figure 5-16. To view
the settings of the VF5A card, first click on VF5C and then click on View. This will bring you to the
Configuration and Status window for the VF5C card as shown in Figure 5-30.

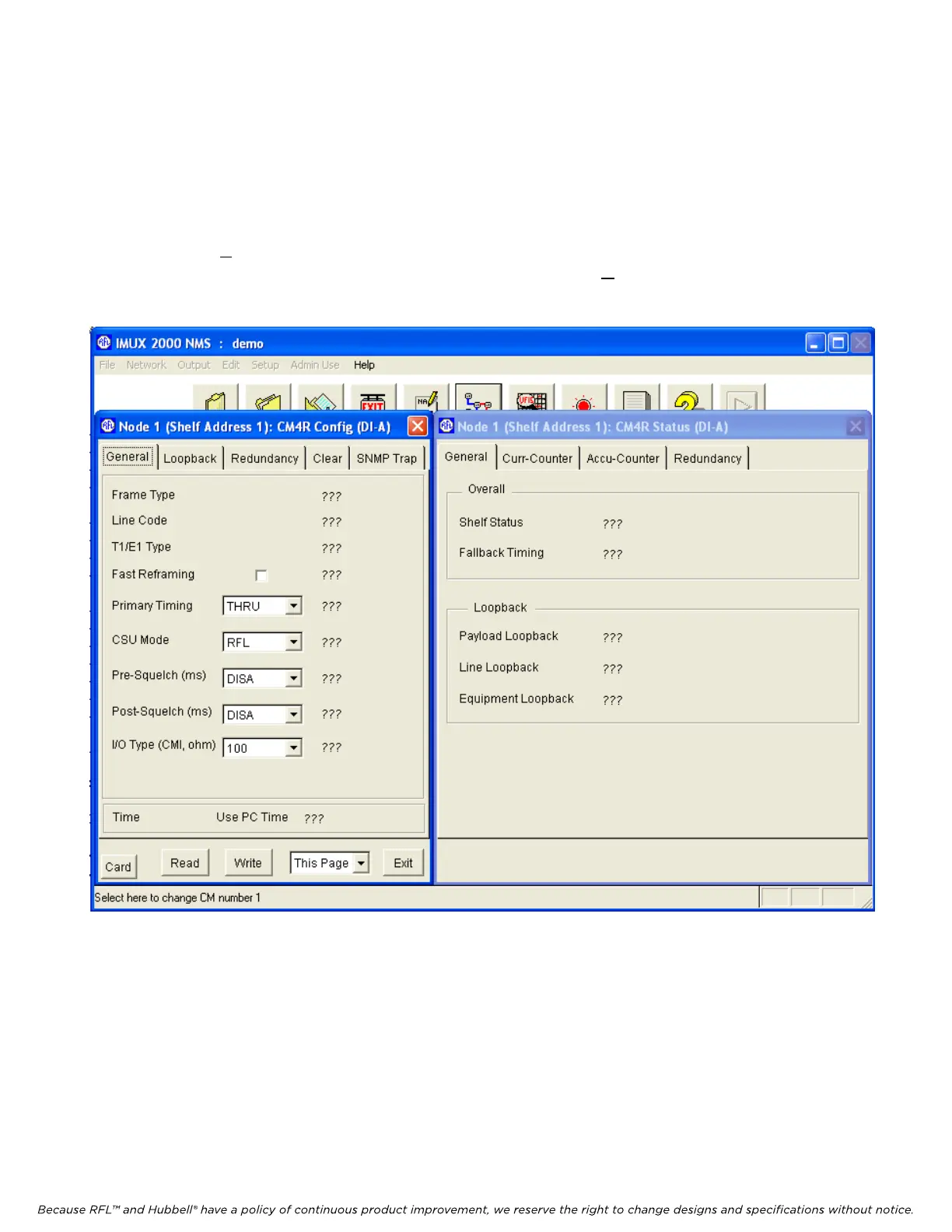

Figure 5-29. CM4 Configuration And Status Window
