RFL Electronics IMUX 2000 - Figure 7-8. CM4 Front Panel LED Indicators

To Next Page

To Previous Page

Because RFL™ and Hubbell® have a policy of continuous product improvement, we reserve the right to change designs and speciﬁcations without notice.

M-DACS-T1 RFL Electronics Inc.

G G G

LOOP INT EXT

G Y R

TX LPBK ERR

G Y R

RX BPV FRM

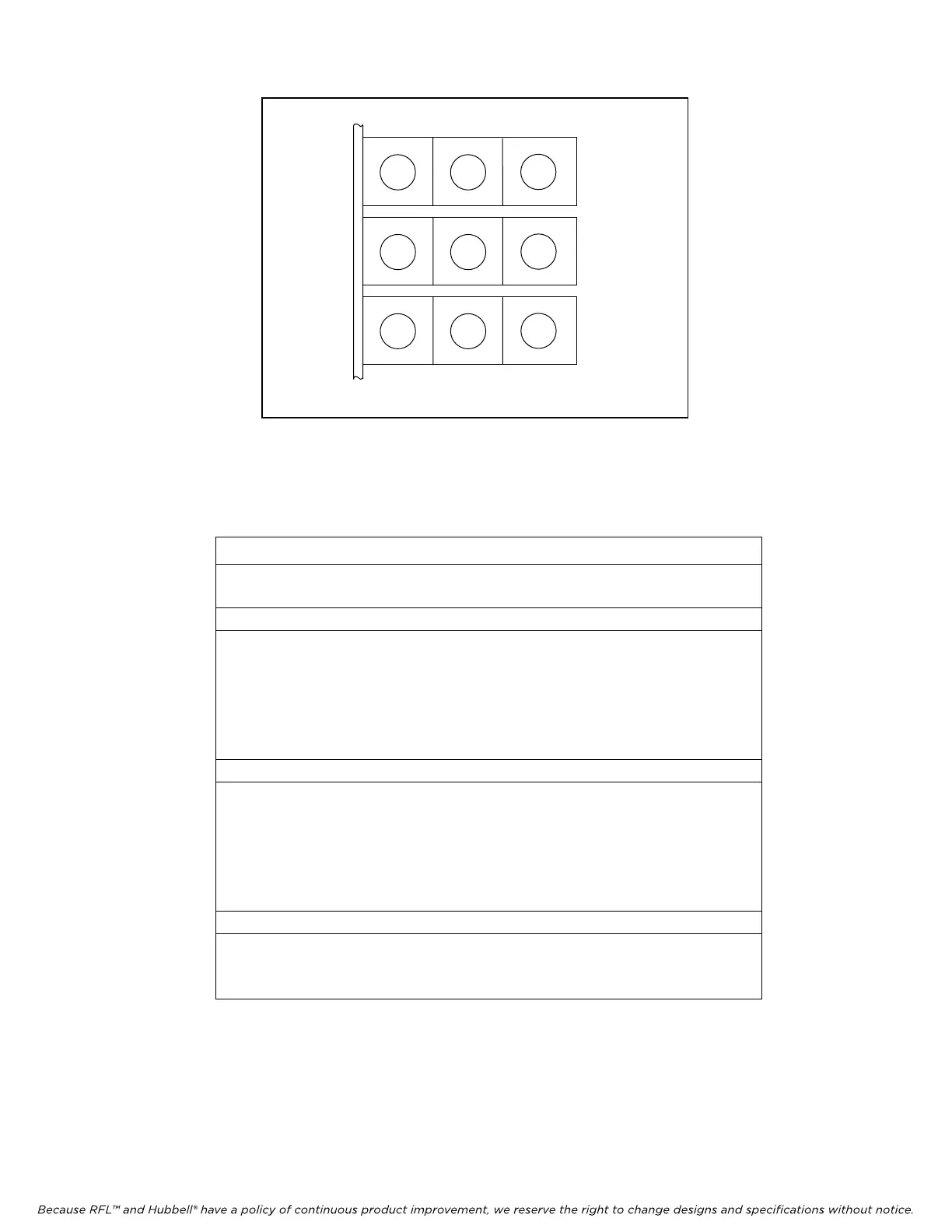

Figure 7-8. CM4 front panel LED indicators

Table 7-1. Indicator status during M-DACS multiplex

r loopback

Module LED Indicator

T1 Port Loopback

(1)

DACS Module DS1 ON

DS2 ON

CM4 D/I-A RX and TX ON

LOOP ON (2)

INT and EXT OFF

FRM OFF

ERR and BPV OFF

LPBK OFF

CM4 D/I-B RX and TX ON

LOOP ON (2)

INT and EXT OFF

FRM OFF

ERR and BPV OFF

LPBK OFF

Power supply NORMAL ON

ALERT OFF

ALARM OFF

1. Electrical or fiber optic.

2. In a drop/insert multiplexer, the LOOP indicator actually indicates THRU

timing.

October 25, 2004 7-16 (973) 334-3100
