5.5.3.7 THE DISPLAY/CHANGE NODE WINDOW
The Display/Change Node window shown in Figure 5-16 is entered from the Network View window
as described in the previous paragraph. As its name implies, the Display/Change Node window has
two main functions. First, it displays the node number, the node address, the communication path used,
the node type, and a list of all cards and modules at the node. In addition to this the user can enter a
Site ID name at the top of the window. Its second function is to allow the user to change card settings
by going into a sub-window for each card or module.
To view the settings of the DACS module in the M-DACS multiplexer, click on the DACS-R button.
This will bring you to the Configuration and Status window for the DACS module as shown in Figure
5-17.

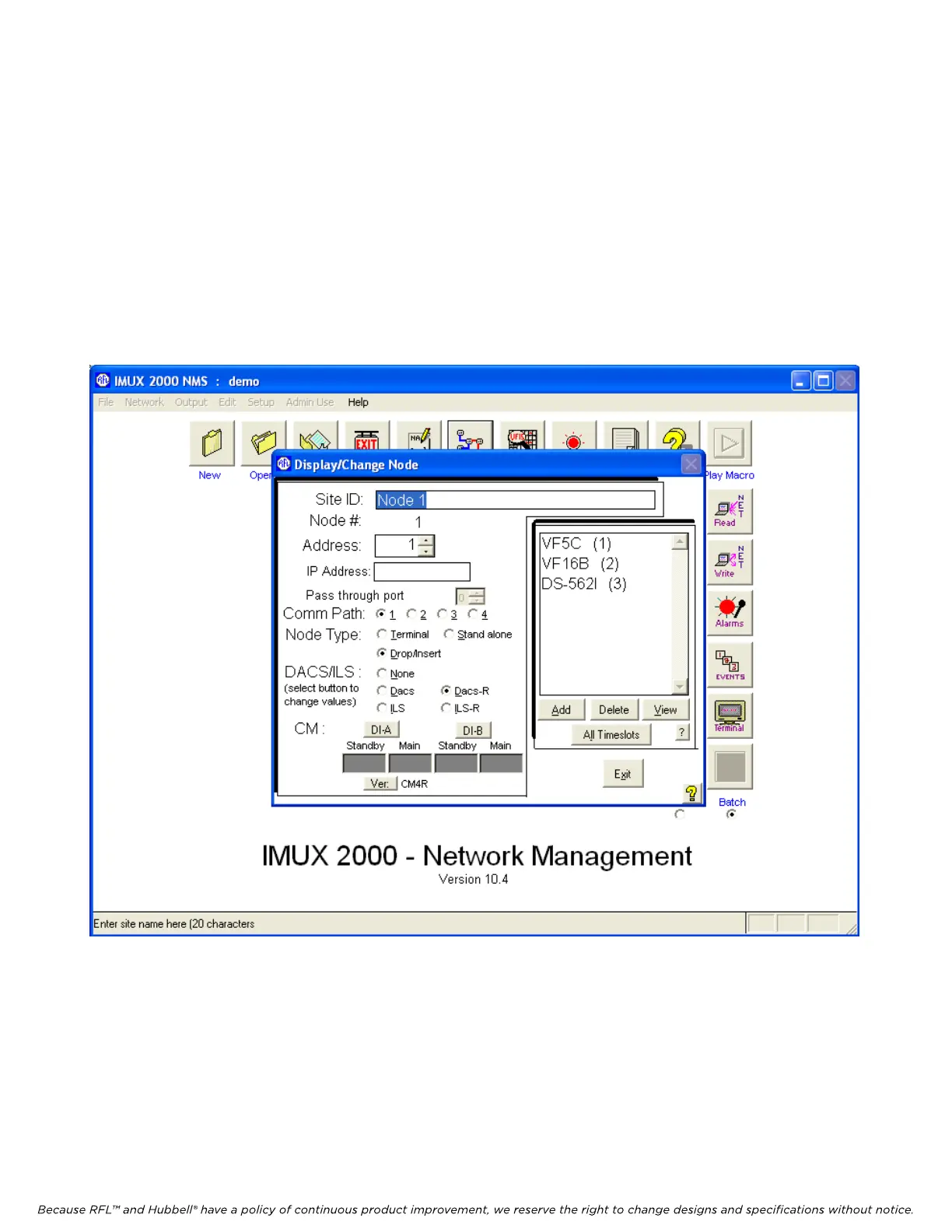

Figure 5-16. Display/Change Node window for node 1
M-DACS-T1 RFL Electronics Inc.
February 28, 2006 5-24 (973) 334-3100
