RFL Electronics IMUX 2000 - Figure 2-12. Front and Rear Views of M-DACS Shelf

To Next Page

To Previous Page

Because RFL™ and Hubbell® have a policy of continuous product improvement, we reserve the right to change designs and speciﬁcations without notice.

5 4 3 2 1

P.S. MAIN

OFF

P.S. REDUNDANT

COM

+ R

- R

PHYSICAL SLOTS 6 - 18 AVAILABLE

FOR MODULE ADAPTERS

COMMUNICATION I/O MODULE

LINE I/O

OIA

POWER SUPPLY ALARM I/O MODULE

M-DACS SHELF REAR VIEW

1300SM

LED

Fibe

INTF

T1/E1

MA260

MA240

TIMING

RS-232

1300SM

LED

Fibe

INTF

T1/E1

MA260

MODULE A

DAPTERS

M-DACS SHELF FRONT VIEW

5.25 in

(13.3 cm)

CHA

NNEL MODULES

MAIN POWER SUPPLY

REDUNDANT POWER SUPPLY (OPTIONAL)

FRAMER

PROCESSOR

Note: There is no slot available at position 3.

CM4 - DI/A

CM4 - DI/B

PHYSICAL SLOTS 6 - 18 AVAILABLE

FOR CHANNEL MODULES

2 3 4 5 6 18

DACS MODULE

19 in

(48.3 cm)

T1/E1

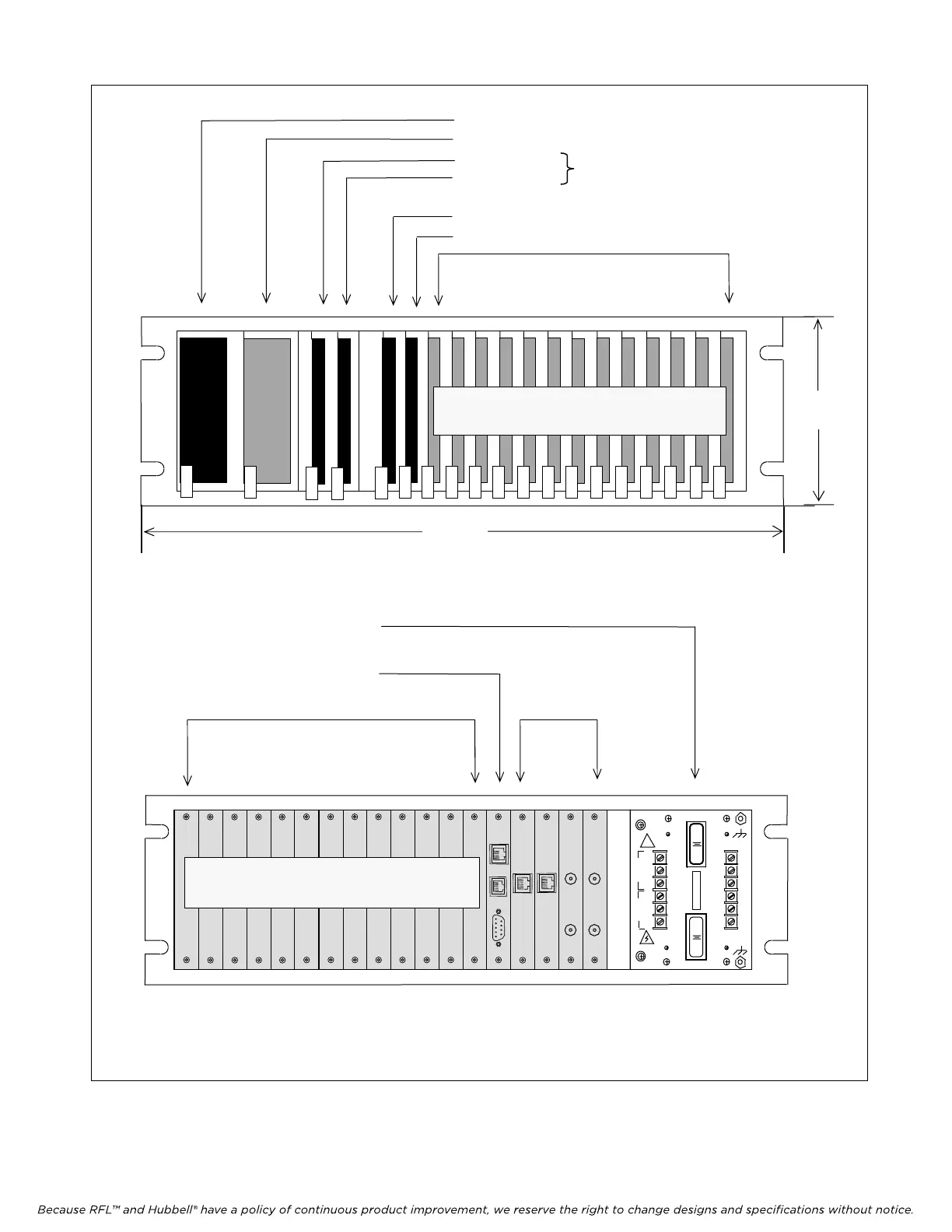

Figure 2-12. Front and rear views of M-DACS shelf

M-DACS-T1 RFL Electronics Inc.

October 16, 2012 2-23 (973) 334-3100

Main Page
