IMUX 2000 T1/E1 MDACS
4

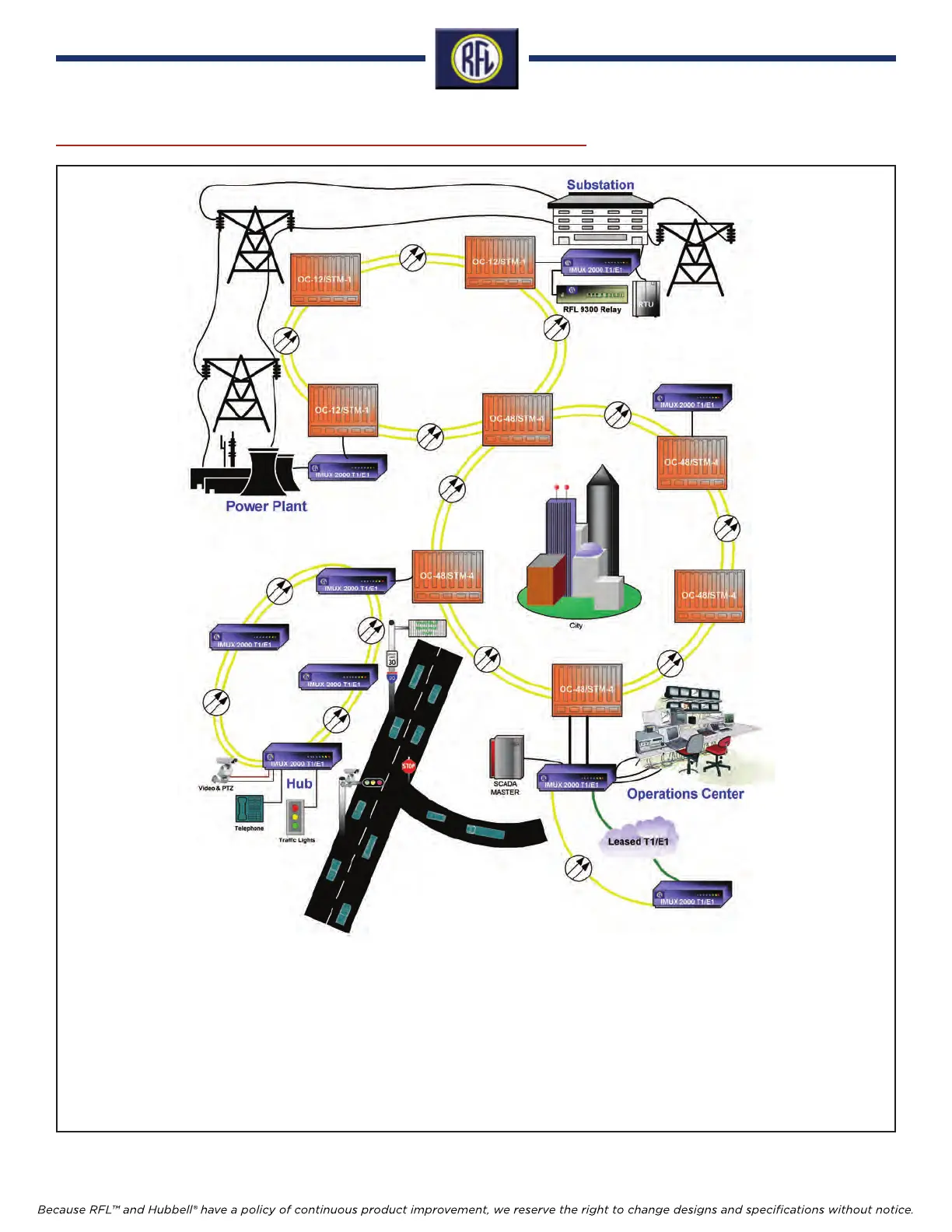

Above is an example of a typical utility / traffic system solution. It is made up of two SONET/SDH rings as the communi-
cations backbone. The IMUX 2000 T1/E1 MDACS’ are configured to work in a Point-to-Point, Star and Stand-Alone 2-
Fiber Loop topology over the SONET/SDH system.
The IMUX 2000 T1/E1 MDACS carries RTU and phone circuits from several substations to the operations center. It also
carries current differential relay data between substations.
The IMUX 2000 T1/E1 MDACS carries roadside signals, transmission data from vehicle loop detectors, compressed
digital video, camera control, toll collection information, status and alarm reporting, voice and data traffic signal controls
back to the operations center.
Application Solutions ...
