Table 6. Connector J1 pin assignments for the MA-410I Module adapter
Pin No. Signal Name
1 Chassis
2 TX Data A
3 Control A
4 Rx Data A
5 Indicate A
6 Signal Timing A
8 Signal Ground
9 Tx Data B
10 Control B
11 Rx Data B
12 Indicate B
13 Signal Timing B
15-Pin
Connector
Connector J1
(See Table 6
for pin assign-
mens)
Item Function Setting
DIP Switch S1 Selects DCE or DTE mode DCE:
S1-1 to S1-4 toward “DCE”
DTE: S1-1 to S1-4 toward “DTE”
Item
Function Setting
R2 Receive data/timing (factory adjustment)
output level adjust
S1
DTE DCE

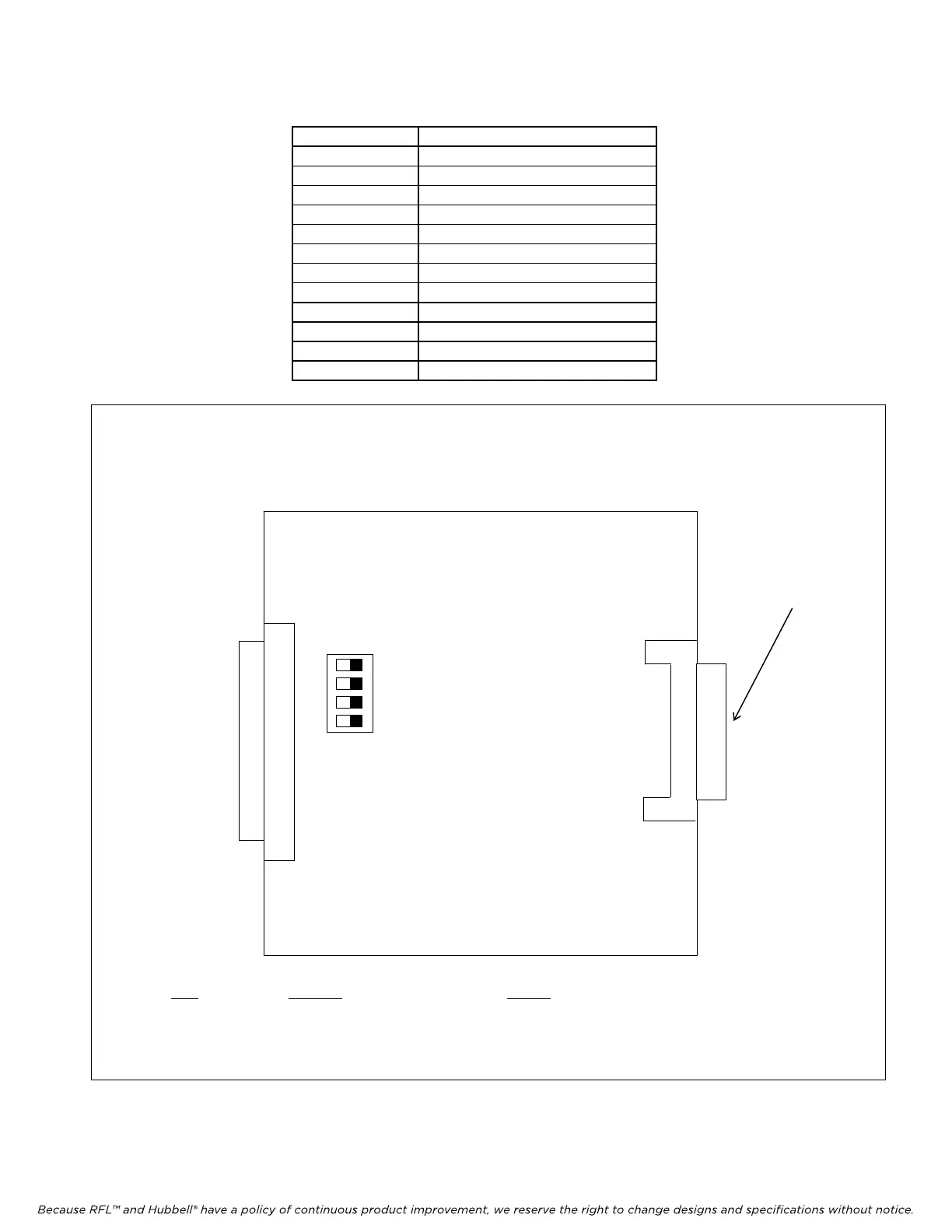

Figure 6. Controls and Indicators, MA-410I Module adapter
