SHORT HAUL FIBER INTERFACE (MA-600)
The MA-600 is a Short Haul Fiber Interface Module that can be used with the RFL DS562NC
Synchronous Data Module. The Short Haul Fiber Interface Module is a single width module, and
consists of an input section (detector) and an output section (emitter). The module is mounted at the
rear of an RFL IMUX 2000 chassis, directly opposite the DS-562NC module. The input power
requirement is +5 Volts at 175 mA maximum from the chassis supply. The input drive signals are TTL
logic-level, generated by the DS-562NC. The Short Haul Fiber Interface (MA-600) can only occupy
one time slot at a data rate of 64kbps.
Table 12. Short Haul Fiber Interface Module, Characteristics
Assembly
Number
Type Wavelength/
Mode
Connector
Type
Receiver
Sensitivity (average)
Tx Power (average) Typical
Distance
9547-600 LED
Emitter/
Detector
850 nm/
multimode
ST -26dBm -14dBm to -21dBm
into 50µm fiber
-11dBm to -18dBm
into 62.5µm fiber.
Up to 1km
(0.6 mi.)
1
2
3
4

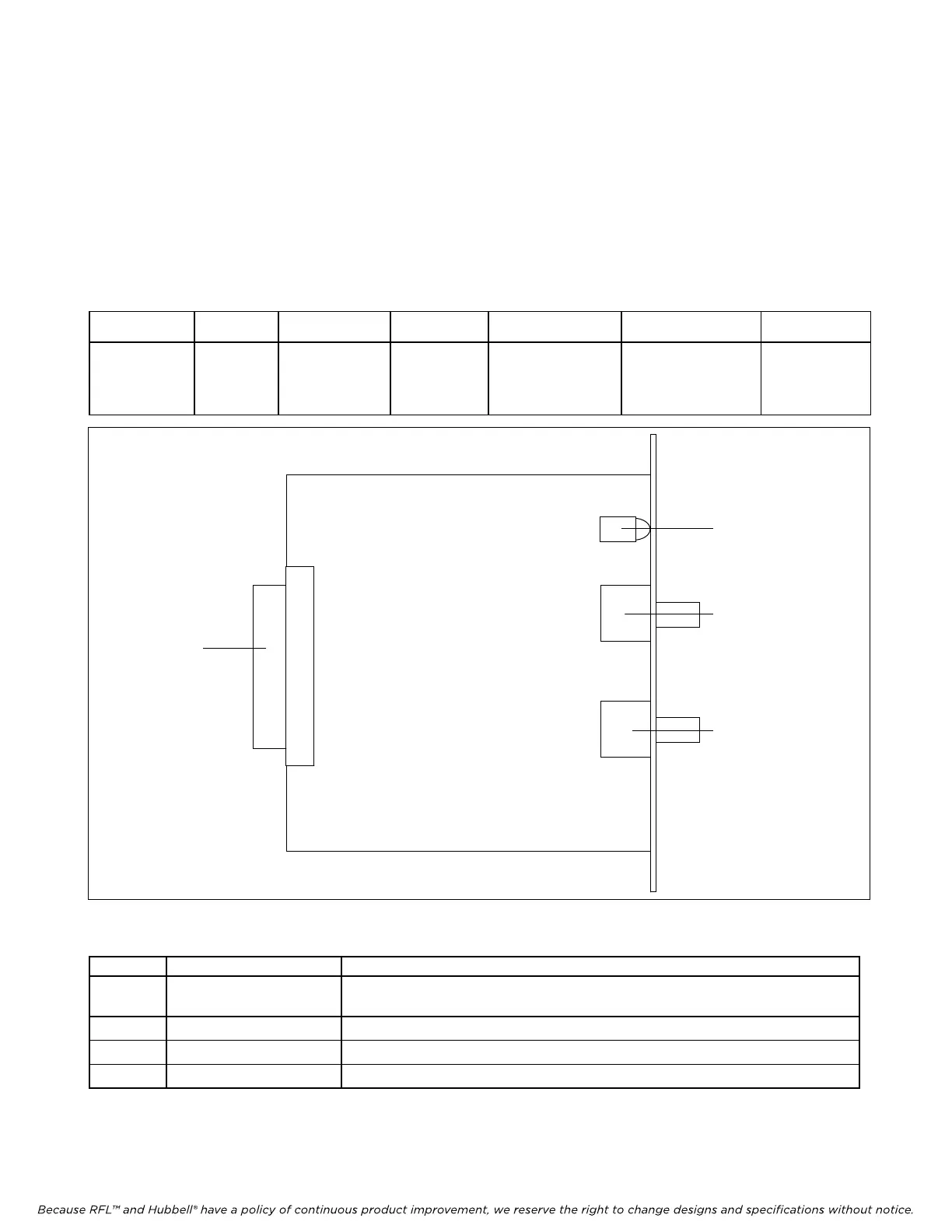

Figure 8. Controls and indicators, MA-600 Module Adapter
Table 13. Short Haul Fiber Interface Module, Controls and indicators
Item
Name/Description Function
1 JP1 Connector Motherboard connector (connects to the IMUX 2000 motherboard directly behind the
DS-562NC module)
2 DS2 Fiber Data LED Lights green when data (transitions) is present at the fiber optic receiver
3 U7 Fiber Optic Detector Connects to fiber optic cable from remote end
4 DS1 Fiber Optic Emitter Connects to fiber optic cable to remote end
