Table 16. MA-427 LAN Bridge SW2 Settings
Switch
Num
b
er
Switch
Default
Settings
Switch Options
1 MODE 0 Up*
Down = Not applicable
Up = Indicates 10Mb half duplex when it is the only mode set to
the UP position. When combined with MODE 4 in the UP
position, indicates 10Mb full duplex.
2 MODE 1 Down*
3 MODE 2 Down*
4 MODE 3 Down*
Future application.
5 MODE 4 Up
Down = Setting for 10Mb half duplex.
Up = Combined with mode 0 in the UP position creates setting
for 10Mb full duplex.
6
WMODE
(WAN)
Down**
Down = Synchronous.
Up = Asynchronous.
7 FILTER*** Up
Down = Filter and forward (bridge) ON.
Up = Filter and forward (bridge) OFF.
8
COMPR***
(Compression)
Down
Down = Compression OFF.
Up = Compression ON
Notes:
* Unless it is necessary to change from full to half duplex, do not change the MODE 0-4 settings from
their default.
** To ensure proper operation with the DS-562NC, do not change the WM
ODE setting from the default.
*** The compression and filter settings must be the same as their corresponding switch on the far side of the
network.
SW2
J1
MA-427
MA-427
R
X
Piano Switch Top View
T
X
W
A
N
UP
TX/RX
LINK
LINK LED
L
A
N
LAN TX/RX
LED
Default positions
shown, see
Table 16 above
1
2
3
45
6
78

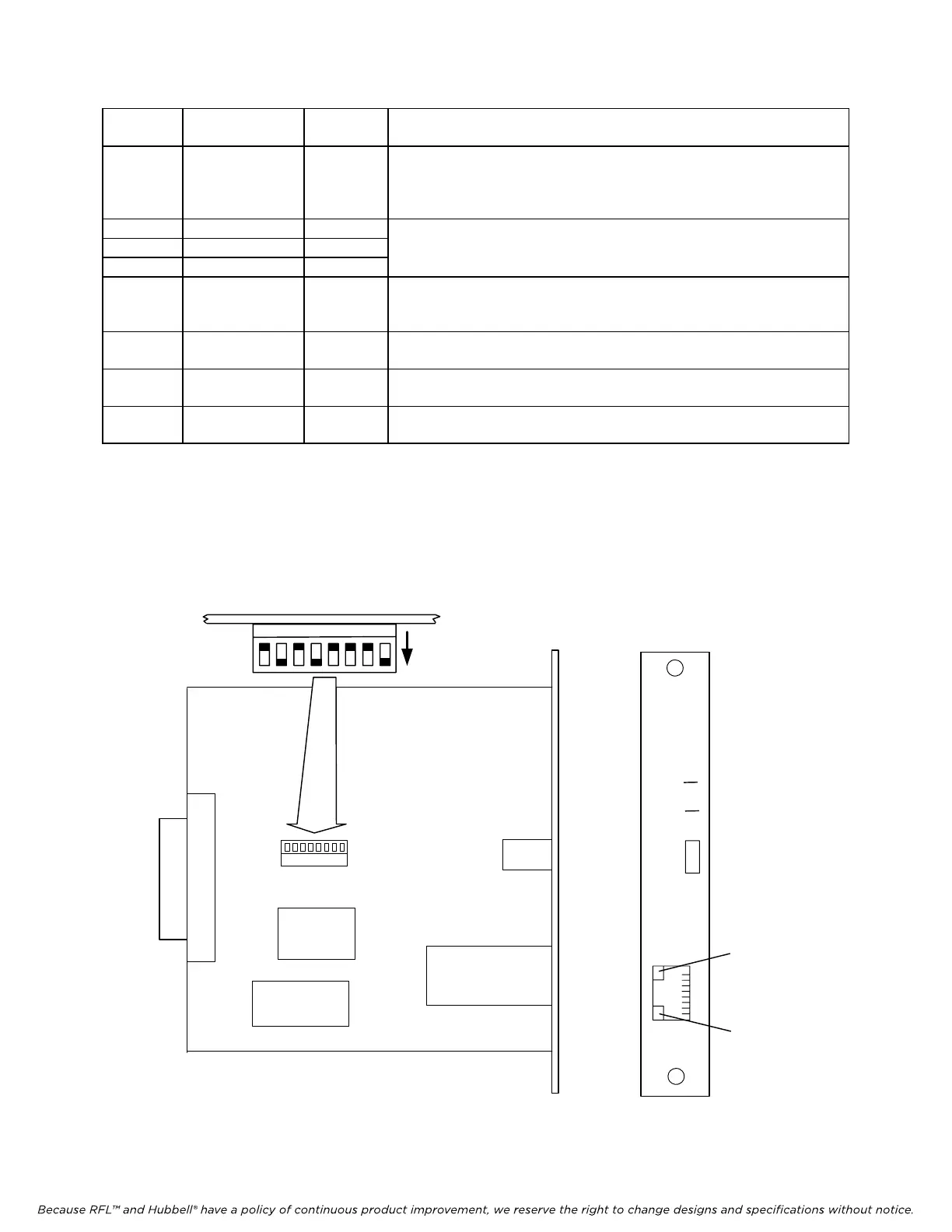

Figure 12. MA-427 LAN Bridge Module Adapter
