Type I Interface

-48V

Battery

Detector

Ground

Detector

E E

Trunk Circuit

VF-5C

Type III Interface

Battery

Detector

Ground

Detector

Trunk Circuit

VF-5C

-48V

Ferrod

Sensor

98Ω 38Ω

Ground

Detector

Ground

Detector

E E

Trunk Circuit

VF-5C

-48V

Type V Interface

Battery

Detector

Ground

Detector

E E

Trunk Circuit

VF-5C

-48V

Type II Interface

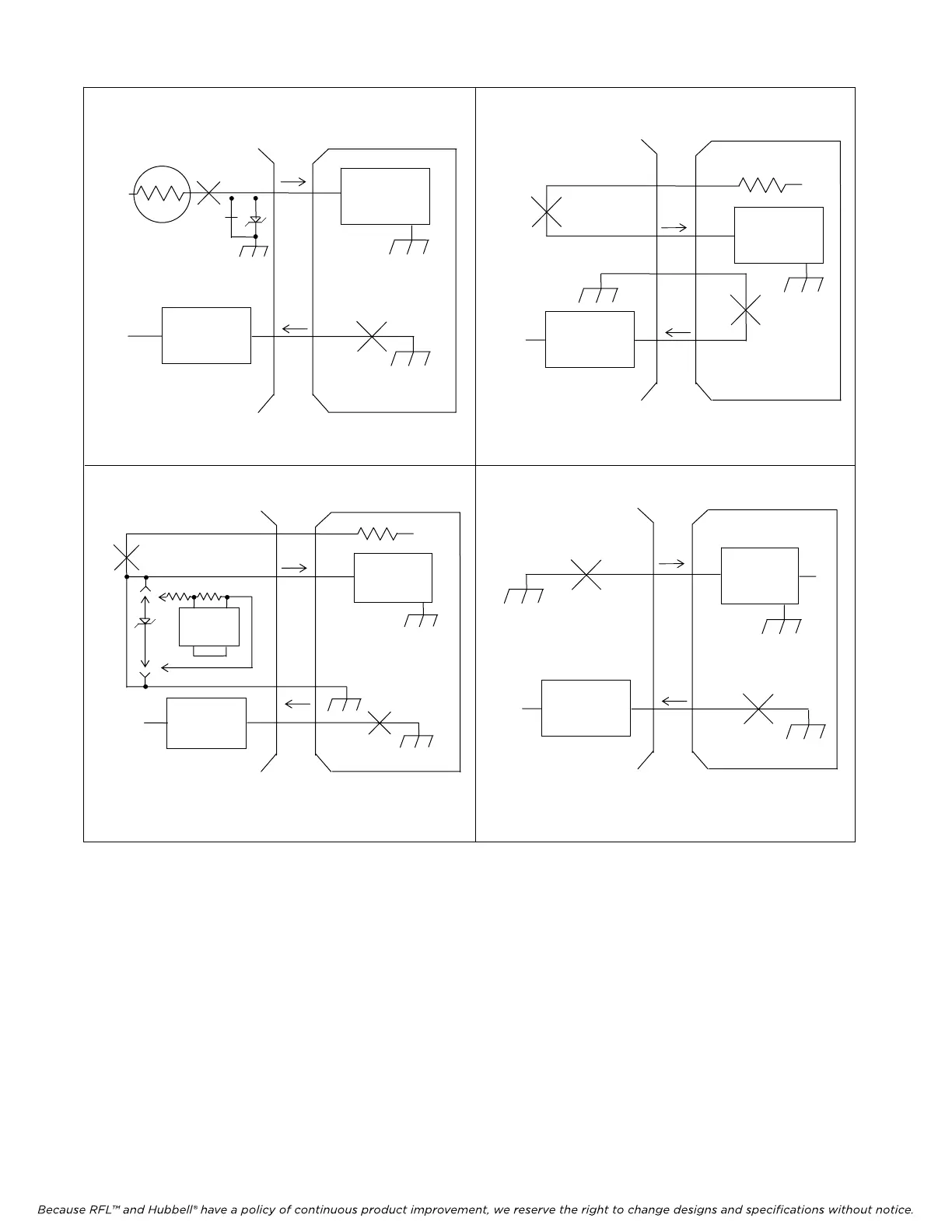

Figure 15. E&M signaling types

RFL VF-5C RFL Electronics Inc.

Oct

ober 8, 2012 29 (973)

334-3100
