Because RFL™ and Hubbell® have a policy of continuous product improvement, we reserve the right to change designs and speciﬁcations without notice.

MA-324 The MA-324 accepts a 50-pin Telco connector (Amphenol 57-30500

or equivalent, as shown in Figure 5.) One MA-324 Module Adapter

is used for each RFL VF-6I module and occupies two rear slots in

the IMUX 2000E chassis. The MA-324 is used to convert one of the

4-wire outputs (Channel 1) from 4-wire to 2-wire. The other 4-wire

output is not used. The impedance is 600 Ohms, the frequency

response is ±2dB from 200Hz to 3000Hz, and the transformer loss

(hybrid loss) is ≅ 4.0dB.

Pin No. MA-324 Pin Functions

1 Ring

3 SG

7 M

26 Tip

28 E

32 SB

Note: All unlisted pins are not used.

MA-324

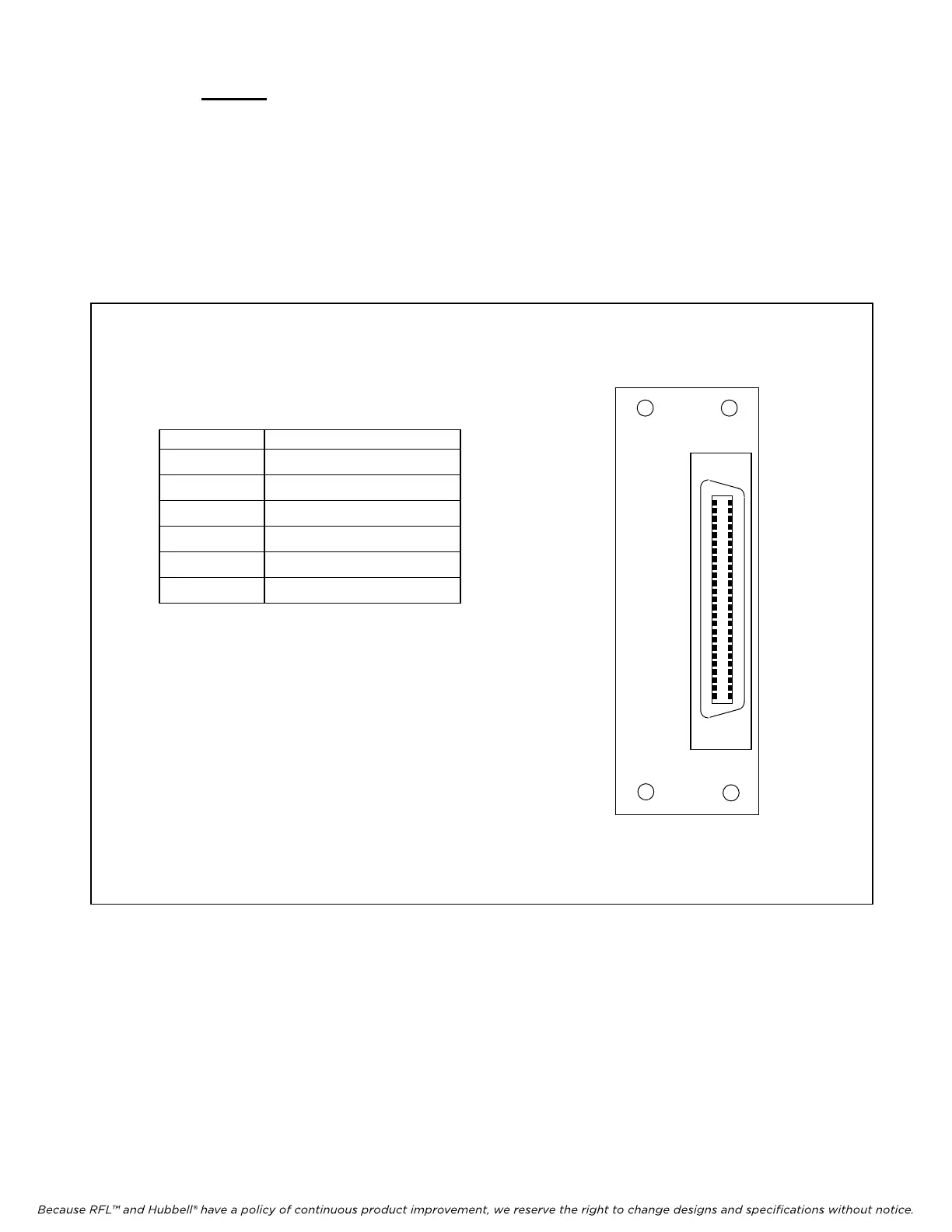

Figure 4. MA-324 Module Adapter

RFL VF-6I RFL Electronics Inc.

December 15, 2011 7 (973)

334-3100
