24Vdc

Power Supply

IMUX

Status Output

(dry contact)

Equipment

Output

(dry contact)

Wetting

Voltage Supply*

Destination

Equipment

Input

IMUX

Status Input

(10 - 30 Vdc)

* Wetting voltage for the Status Module output is determined by the input voltage requirements of

the destination equipment. The Status Output module will work with any wetting voltage up to a

maximum of 150 Vdc (400mA @ 150 Vdc, 1A @ 24 Vdc).

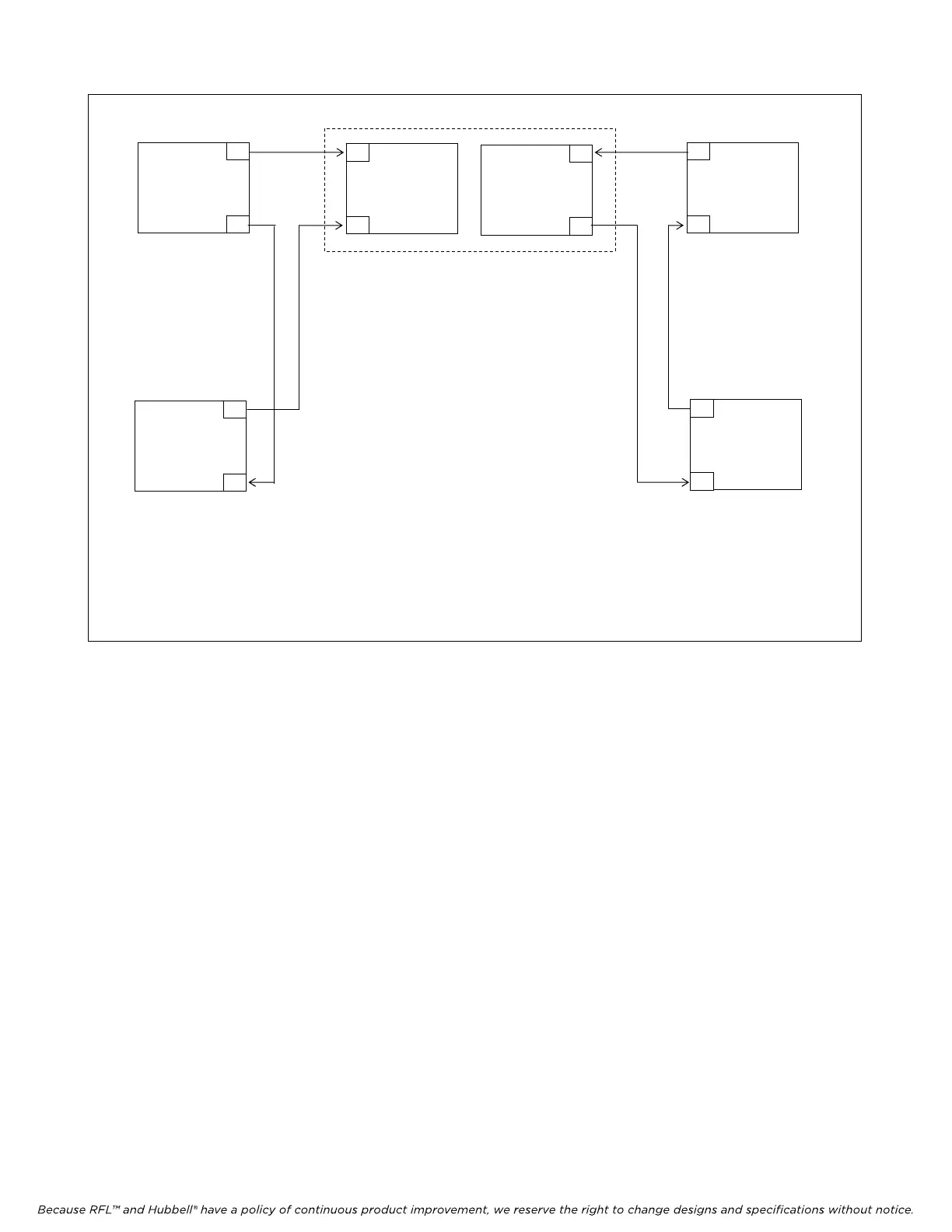

Figure 1. Typical connections to/from IMUX 2000 Status Module card

RFL Status Module RFL Electronics Inc.

July 15, 2007 5 (973)

334-3100
