RFL Status Module RFL Electronics Inc.
July 15, 2007 7 (973)
334-3100
1 +INPUT1
2 -INPUT1
3 +INPUT2
4 -INPUT2
5 +INPUT3
6 -INPUT3
7 +INPUT4
8 -INPUT4
9 +INPUT5
10 -INPUT5
11 +INPUT6
12 -INPUT6
13 +INPUT7
14 -INPUT7
15 +INPUT8
16 -INPUT8
MA603
IN IN
+INPUT9 17
-INPUT9 18
+INPUT10 19
-INPUT10 20
+INPUT11 21
-INPUT11 22
+INPUT12 23
-INPUT12 24
+INPUT13 25
-INPUT13 26
+INPUT14 27
-INPUT14 28
+INPUT15 29
-INPUT15 30
+INPUT16 31
-INPUT16 32
16 Input
1 OUTPUT1
2 OUTPUT1
3 OUTPUT2
4 OUTPUT2
5 OUTPUT3
6 OUTPUT3
7 OUTPUT4
8 OUTPUT4
9 OUTPUT5
10 OUTPUT5
11 OUTPUT6
12 OUTPUT6
13 OUTPUT7
14 OUTPUT7
15 OUTPUT8
16 OUTPUT8
MA604
OUT OUT
OUTPUT9 17
OUTPUT9 18
OUTPUT10 19
OUTPUT10 20
OUTPUT11 21
OUTPUT11 22
OUTPUT12 23
OUTPUT12 24
OUTPUT13 25
OUTPUT13 26
OUTPUT14 27
OUTPUT14 28
OUTPUT15 29
OUTPUT15 30
OUTPUT16 31
OUTPUT16 32
16 Output
1 OUTPUT1
2 OUTPUT1
3 OUTPUT2
4 OUTPUT2
5 OUTPUT3
6 OUTPUT3
7 OUTPUT4
8 OUTPUT4
9 OUTPUT5
10 OUTPUT5
11 OUTPUT6
12 OUTPUT6
13 OUTPUT7
14 OUTPUT7
15 OUTPUT8
16 OUTPUT8
MA605
IN OUT
+INPUT1 17
-INPUT1 18
+INPUT2 19
-INPUT2 20
+INPUT3 21
-INPUT3 22
+INPUT4 23
-INPUT4 24
+INPUT5 25
-INPUT5 26
+INPUT6 27
-INPUT6 28
+INPUT7 29
-INPUT7 30
+INPUT8 31
-INPUT8 32
8 Input/8 Output
1 +INPUT1
2 -INPUT1
3 +INPUT2
4 -INPUT2
5 +INPUT3
6 -INPUT3
7 +INPUT4
8 -INPUT4
9 +INPUT5
10 -INPUT5
11 +INPUT6
12 -INPUT6
13 +INPUT7
14 -INPUT7
15 +INPUT8
16 -INPUT8
MA606
OUT IN
OUTPUT1 17
OUTPUT1 18
OUTPUT2 19
OUTPUT2 20
OUTPUT3 21
OUTPUT3 22
OUTPUT4 23
OUTPUT4 24
OUTPUT5 25
OUTPUT5 26
OUTPUT6 27
OUTPUT6 28
OUTPUT7 29
OUTPUT7 30
OUTPUT8 31
OUTPUT8 32
8 Output/8 Input

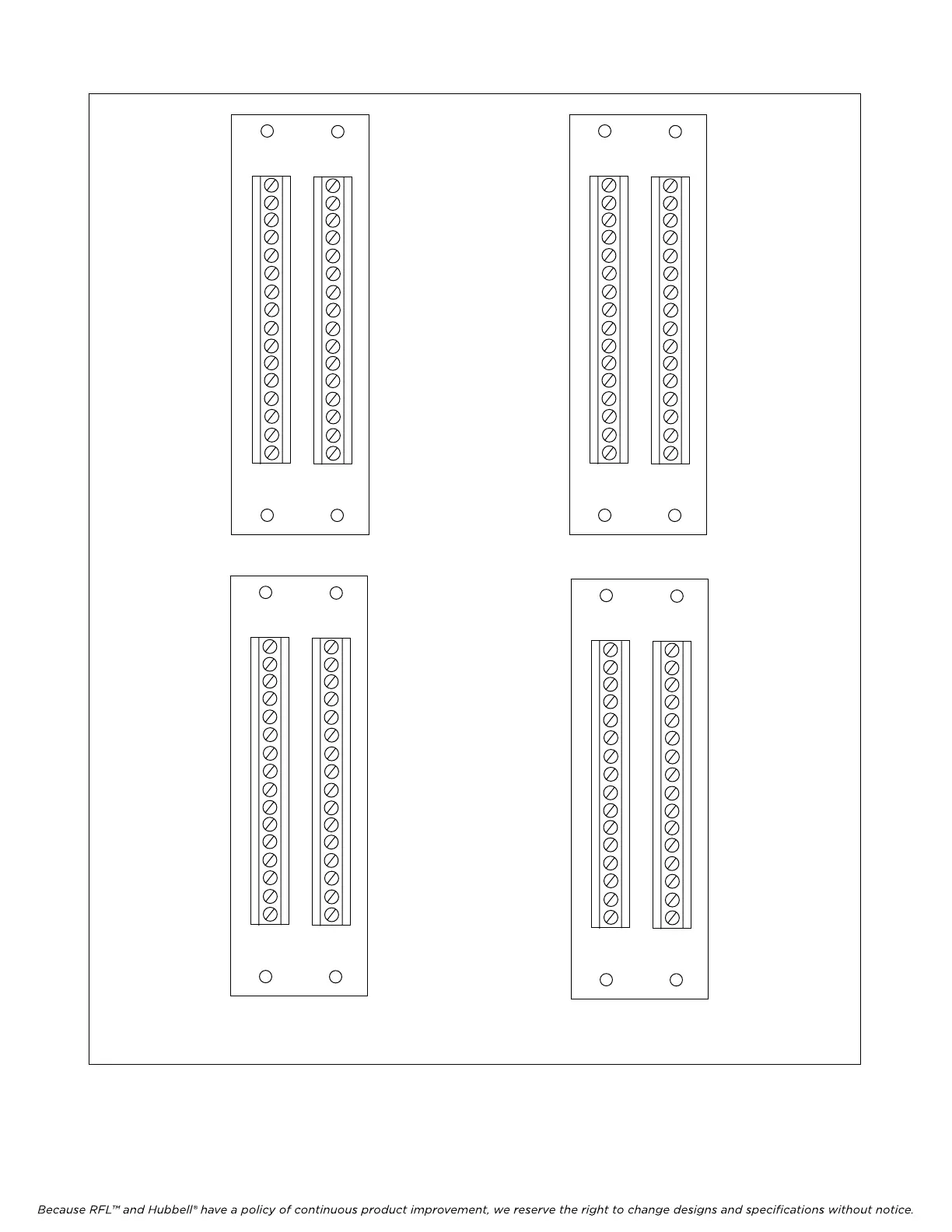

Figure 3. Panel
view of Module Adapters MA-603, MA-604, MA-605 and MA-606
