TONER SUPPLY MOTOR
SM 3-27 B121 Series/B259 Series
Replacement
Adjustment
3.7 TONER SUPPLY MOTOR
1. Copy tray ( 3.3.3)
2. Open the front door.
3. Toner bottle holder ( 3.6.1)

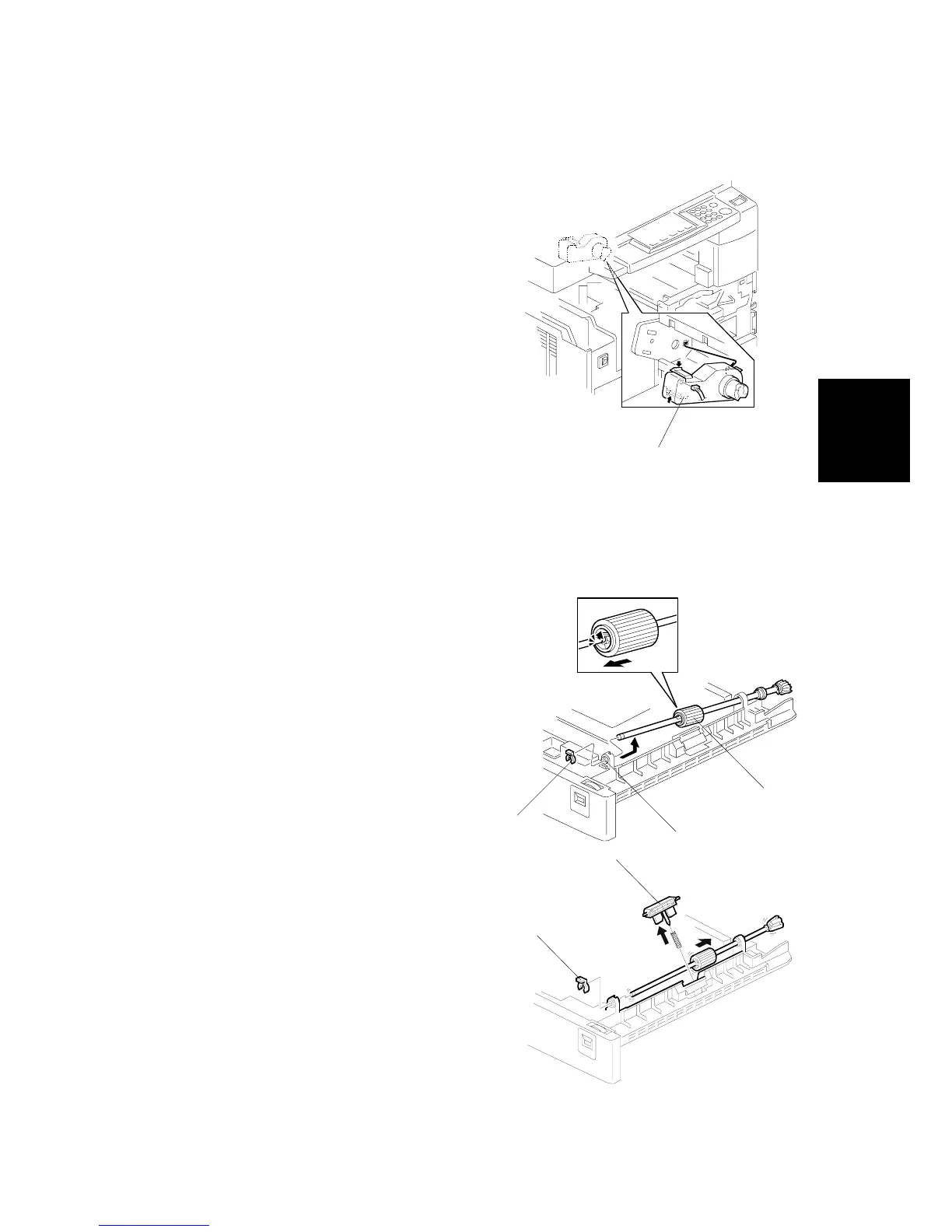

4. Toner supply motor [A] ( x 1)
3.8 PAPER FEED SECTION
3.8.1 PAPER FEED ROLLER
1. Paper cassette
2. Clip [A]
3. Push the shaft back through the opening,
and tilt it up.
NOTE: If the black plastic bushing [B]
comes off, be sure to remount it
when reinstalling the shaft.
4. Paper feed roller [C]
3.8.2 FRICTION PAD
1. Paper cassette
2. Clip [D]
3. Push the shaft back through the opening,
so that the roller moves clear of the
friction pad.
4. Friction pad [E]
