SCANNING
SM 6-9 B121 Series/B259 Series
Detailed
Descriptions
6.4 SCANNING

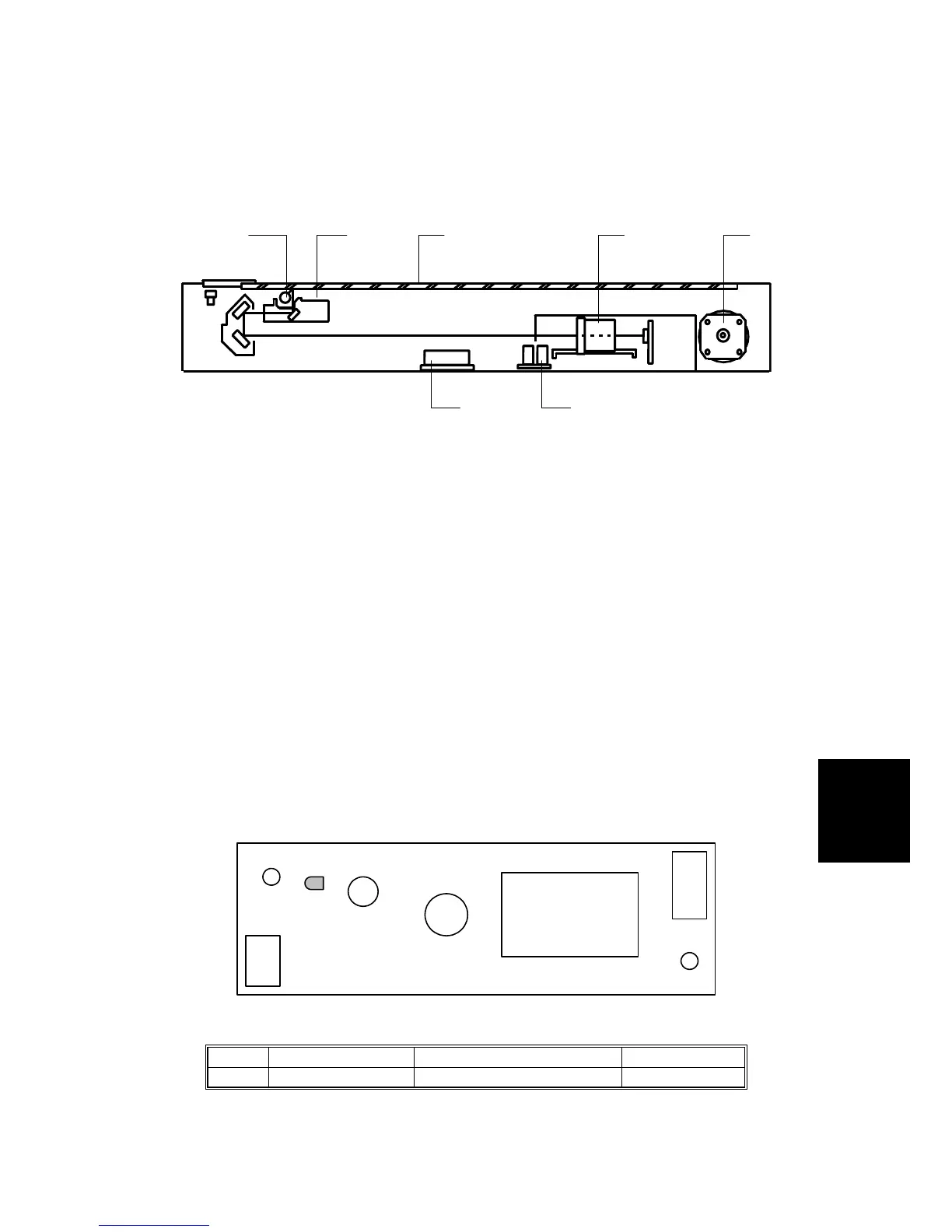

6.4.1 OVERVIEW
1. Exposure Lamp
2. 1st Scanner
3. Exposure Glass
4. Lens Block
5. Scanner Motor
6. Original Length Sensor
7. Original Width Sensors
8. Scanner H.P. Sensor
The original is illuminated by the exposure lamp (a xenon lamp). The image is
reflected onto a CCD (charge coupled device) on the lens block via the 1st, 2nd,
and 3rd mirrors, and through the lens on the lens block.
The 1st scanner consists of the exposure lamp, a reflector, and the 1st mirror.
A lamp stabilizer energizes the exposure lamp. The light reflected by the reflector is
of almost equal intensity, to reduce shadows on pasted originals.
An optics anti-condensation heater is available as an option. It can be installed on
the left side of the scanner. It turns on whenever the power cord is plugged in.
Lamp Stabilizer Fuse
Rating Manufacturer Type No.
ICP1 DC50 V/1.5 A ROHM CO.,LTD ICP–N38
B121D907.WMF
ICP1
B121D928.WMF
1 2 3 4 5
7 6
