Ricoh B121 - Drive Mechanism

DUPLEX UNIT
B121 Series/B259 Series 6-68 SM
6.14.2 DRIVE MECHANISM

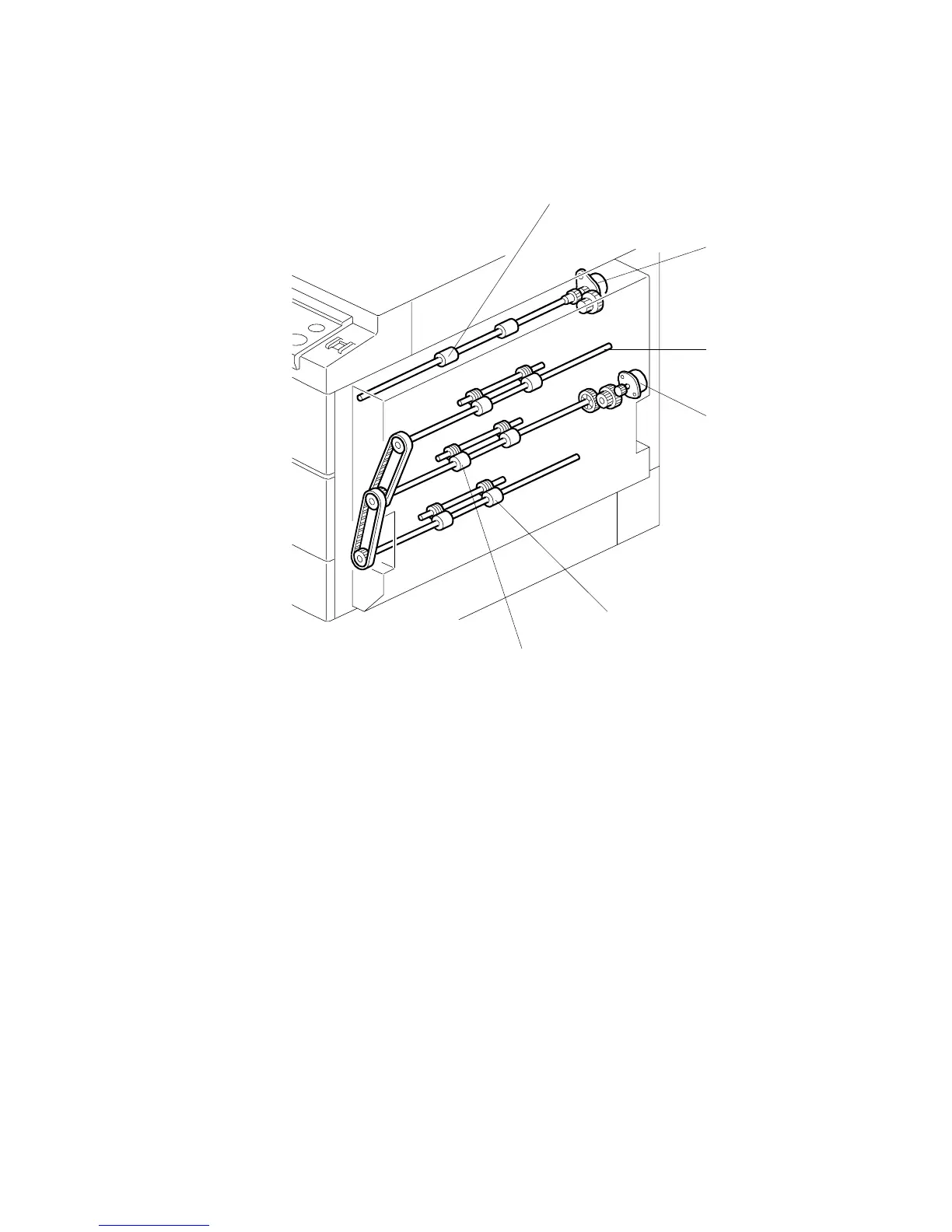

1. Duplex Inverter Roller
2. Duplex Inverter Motor
3. Upper Transport Roller
4. Duplex Transport Motor
5. Lower Transport Roller
6. Middle Transport Roller
B121D969.WMF
6
5
4
3
2
1
