Ricoh B121 - By-Pass Feed Roller and Paper End Sensor

PAPER FEED SECTION
SM 3-29 B121 Series/B259 Series
Replacement
Adjustment

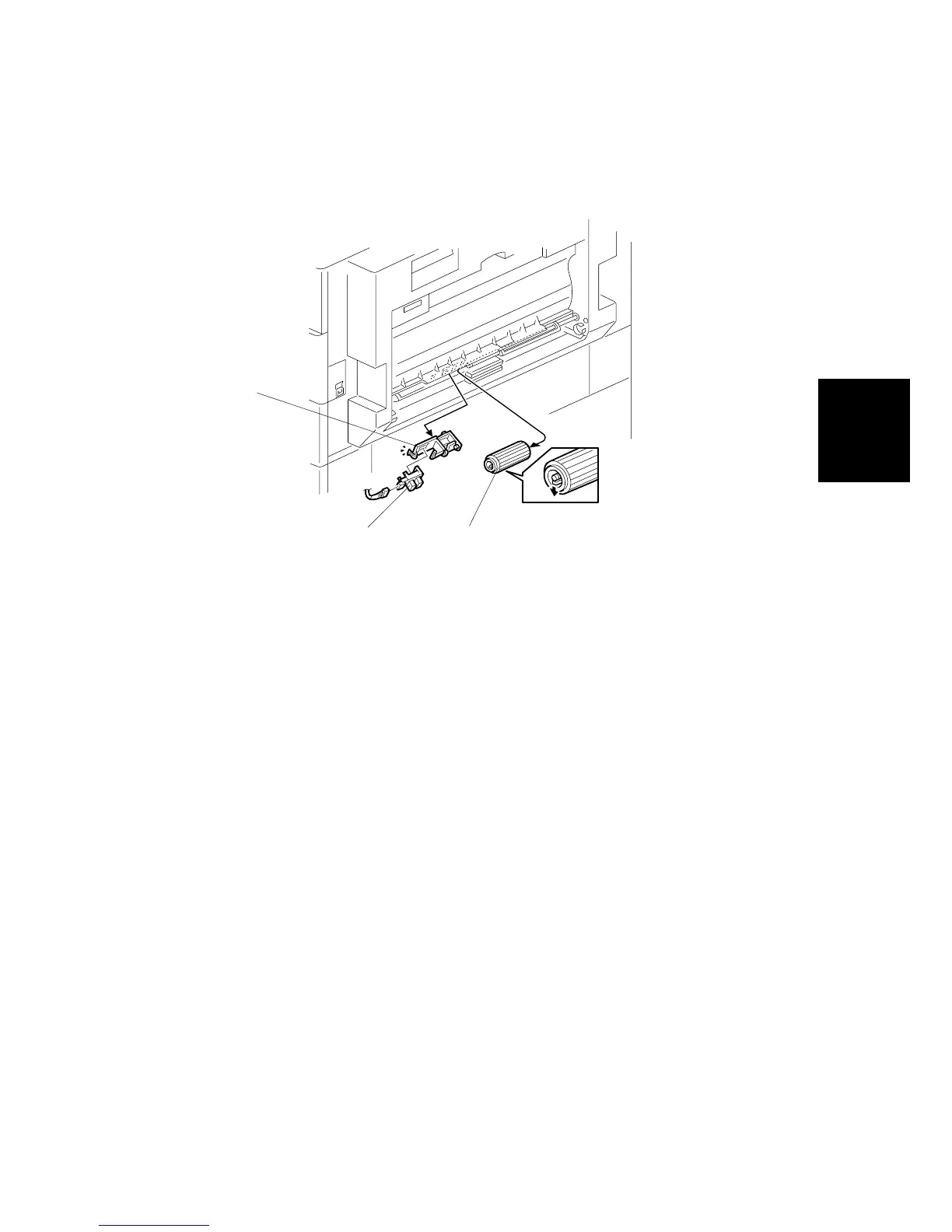

3.8.5 BY-PASS FEED ROLLER AND PAPER END SENSOR
1. By-pass tray ( 3.3.10)
NOTE: If you have a support to keep the by-pass tray within the reach of the
connector cable, you do not need to disconnect the connector. When
you do so, use caution not to place too much load on the cable.
2. Sensor holder [A]
3. By-pass paper end sensor [B] ( x 1)
4. By-pass feed roller [C]
B121R981.WMF
[B]
[C]
[A]
