4.5 IEEE1394 INTERFACE
4.5.1 SPECIFICATIONS
Hardware Specification
Interface: IEEE1394 (6 pins)
(no power supply, cable power repeated, IEEE1394a-2000 compliant)
Ports: 2 ports
Data rates: 400Mbps/200Mbps/100Mbps
System Requirements
PC: Windows PC with IEEE1394 port
OS: Microsoft Windows 2000 upgraded with service pack 1
Cable length: 4.5m (15ft)
4.5.2 IEEE1394
IEEE1394, also known as FireWire (a name patented by Apple), is an easy-to-use
peer-to-peer networking technology allowing speeds of up to 400 Mbps.
The current standard contains the following features, which are supported in most
devices:
• Hot swapping (cables can be connected and disconnected while the
computer and other devices are switched on)
• Peer-to-peer networking (no hub required)
• No terminator or device ID is required, unlike SCSI
• Automatic configuration of devices upon start-up, or “plug and play.”
• Real-time data transfer at 100, 200, and 400 Mbps
• Common connectors for different devices
The cable length is limited to 4.5 m (15ft). However, up to 16 cables and 63
devices can be connected to an IEEE1394 network.
IEEE1394 cables can be either 4-pin (data only) or 6-pin (data and power).
IEEE1394 allows either 6-pin or 4-pin connectors. However, this machine only uses
the 6-pin connectors. The machine has two 6-pin ports.

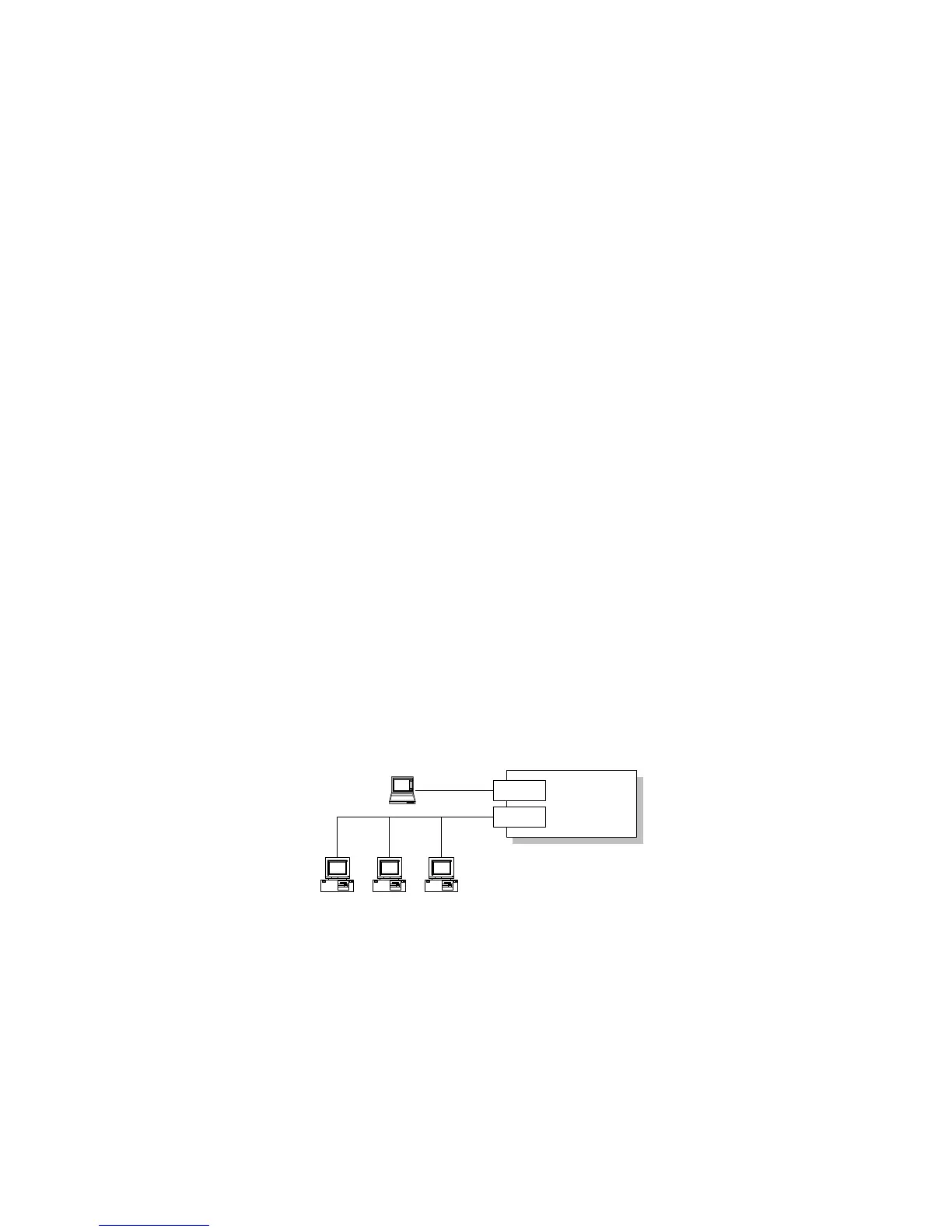

IEEE1394 Board
IEEE1394 I/F
IEEE1394 I/F
B622D911.WMF
