Ricoh B121 - Fusing Lamps; Hot Roller Stripper Pawls

FUSING
SM 3-37 B121 Series/B259 Series
Replacement
Adjustment

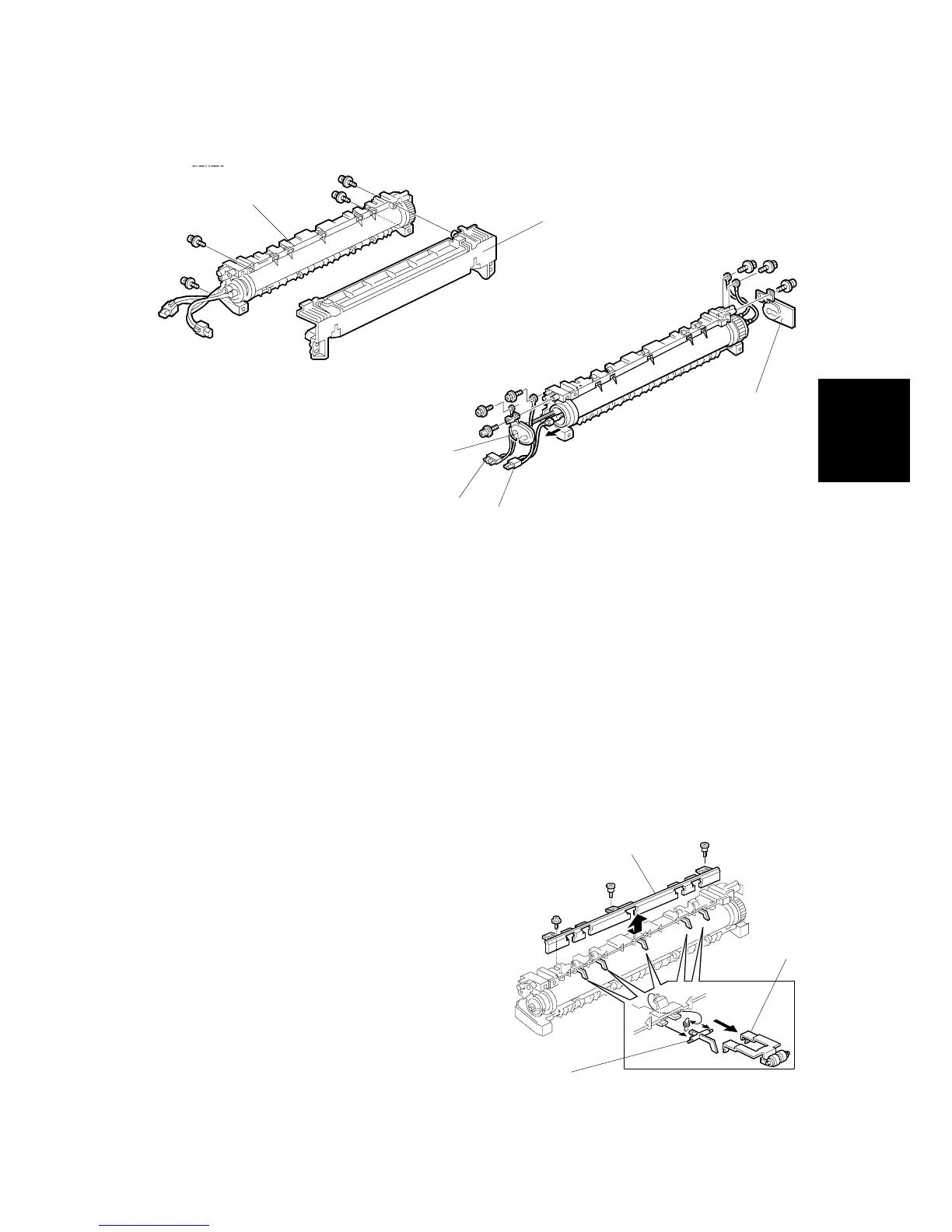

3.10.3 FUSING LAMPS
1. Fusing unit ( 3.10.1)
2. Separate the hot roller section [A] from the pressure roller section [B] ( x 4).
3. Front holding plate [C] ( x 1)
4. Rear holding plate [D] ( x 1)
5. Fusing lamp with the connector (600W) [E] ( x 2)
6. Fusing lamp with the connector (550W) [F] ( x 2)
When reassembling, check that the front ends of the two lamps fit in the front
holding plate. They do not fit in there if you install the two lamps incorrectly.
3.10.4 HOT ROLLER STRIPPER PAWLS
1. Hot roller ( 3.10.5)
2. Roller guard [A] ( x 3)
3. Metal holders [B] (1 holder for each)
4. Hot roller stripper pawls [C]
(1 spring for each)
B121R927.WMF
B121R926.WMF
B121R928.WMF
[C]
[D]
[F]
[E]
[A]
[B]
[A]
[B]
[C]
