REGISTRATION SENSOR
B387 20 SM

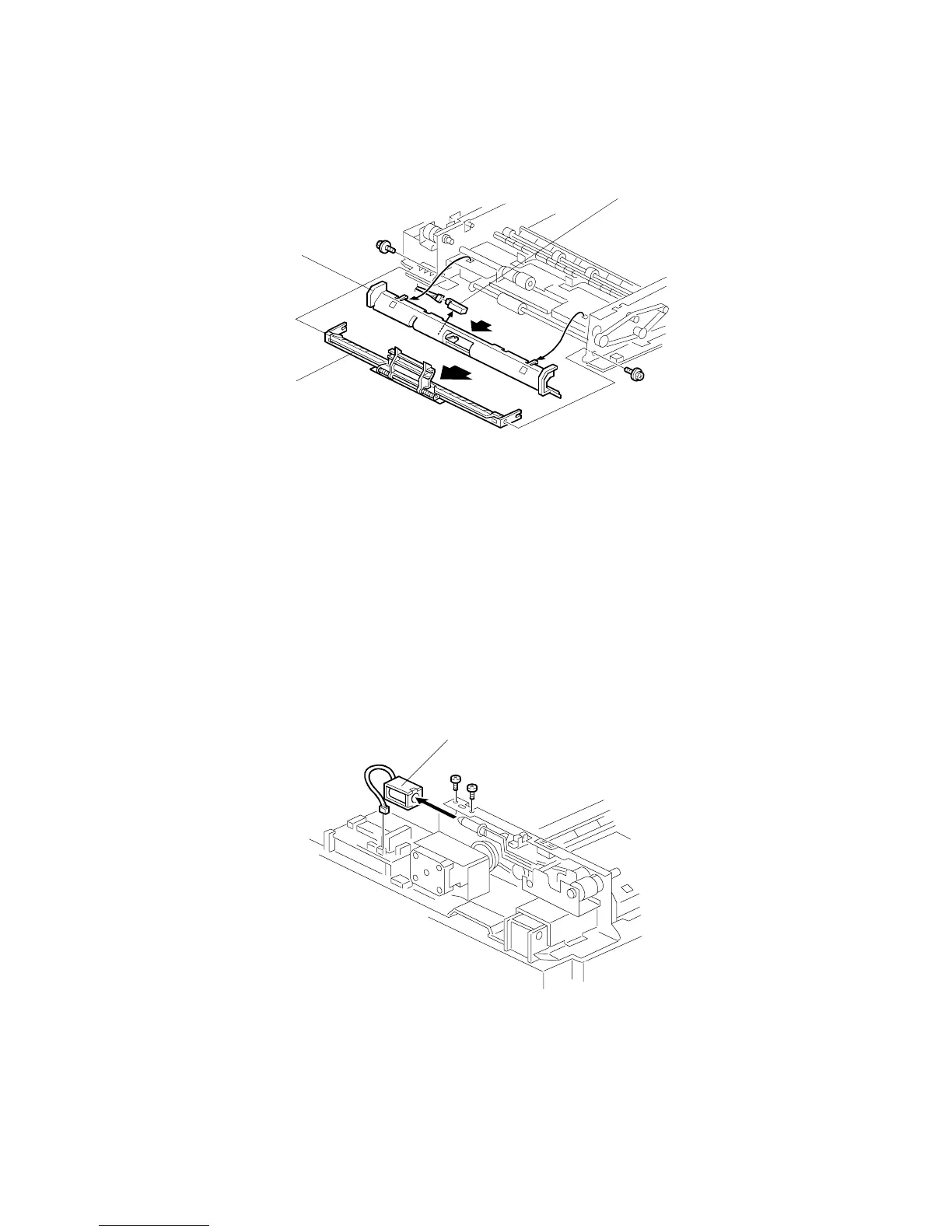

3.10 REGISTRATION SENSOR
1. DF feed cover ( 1.1.5)
2. Original entrance guide ( 1.1.4)
3. Outer turn guide [A] ( x 2)
4. Pop out the inner turn guide [B], and remove the registration sensor [C] ( x
1)
3.11 PICK-UP SOLENOID
1. Rear cover ( 3.1.1)
2. Pick-up solenoid [D] ( x 2,  x 1)
