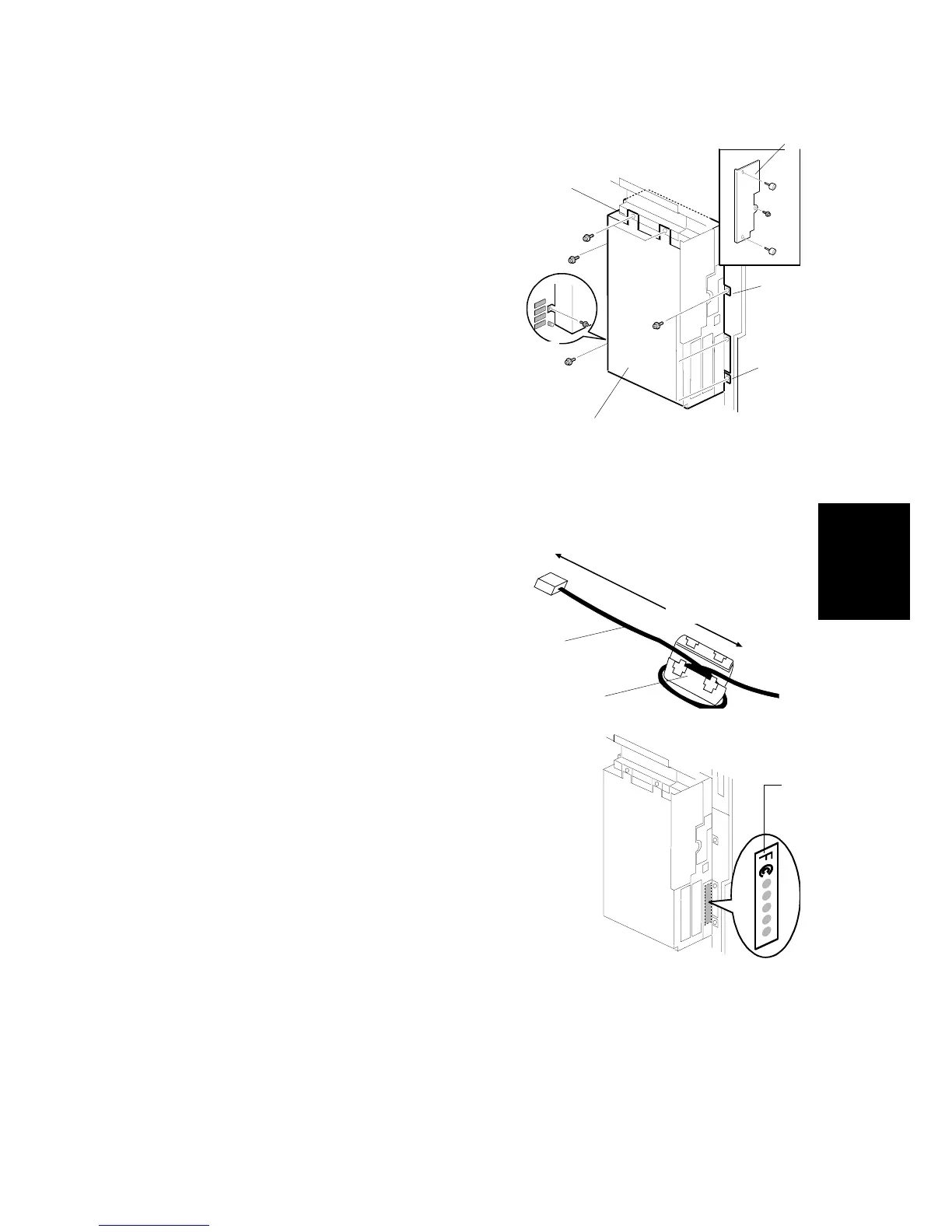

4. Connect the controller box [D] to the
BICU. Make sure that the BICU is not
damaged [E] and that the three openings
[F][G][H] hold the controller box.
5. Fasten the screws (7 screws [including
the screw [C]]).
6. Remove the FCU cover [I] 3 screws).
1.2 INSTALLING PRINTER/SCANNER (B263)
1. Attach the ferrite core [A] to the network
cable [B]. The end of the ferrite core must
be about 15 cm (6") from the end of the
cable [C].
2. Attach the FCC label [D] at the right-hand side of
the USB connector on the controller box (for the
USA model only).
B658I902.WMF
B658I904.WMF
[D]
[F]
[G]
[E]
[H]
[I]
[D
[A]
[B]
[C]
