ANTI-CONDENSATION HEATER INSTALLATION
SM 1-25 B121 Series/B259 Series
Installation
1.9 ANTI-CONDENSATION HEATER INSTALLATION
CAUTION
Unplug the machine power cord before starting the following procedure.
1. Remove the exposure glass ( 3.4.1).
2. Remove the left cover ( 3.3.8).
3. Pass the connector [A] through the opening [B].
4. Install the anti-condensation heater [C], as shown.
5. Join the connectors [A, D].
6. Clamp the harness with the clamp [E].
7. Reinstall the left cover and exposure glass.

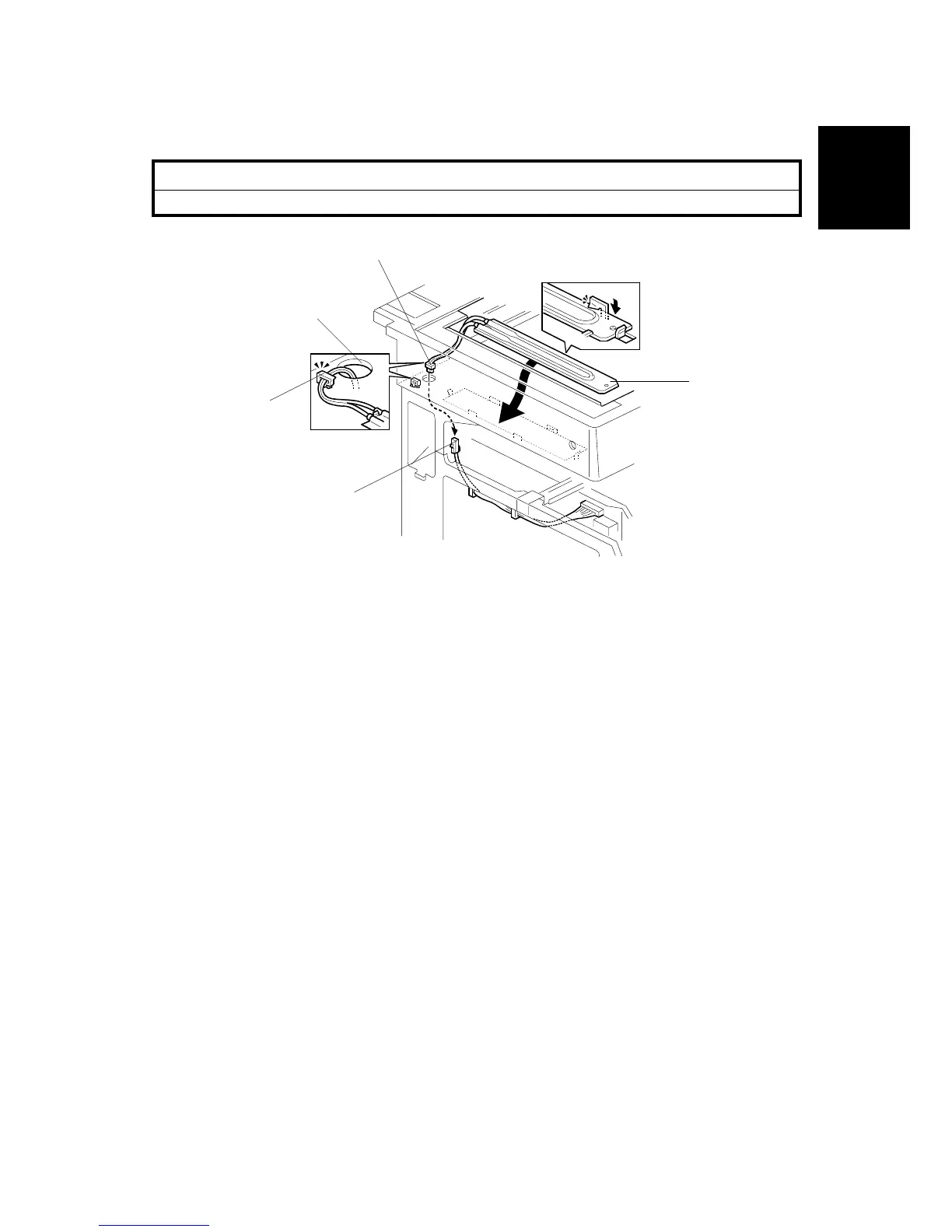

B121I127.WMF
[E]
[B]
[D]
[C]
[A]
