EXTERIOR COVERS & OPERATION PANEL
B121 Series/B259 Series 3-10 SM

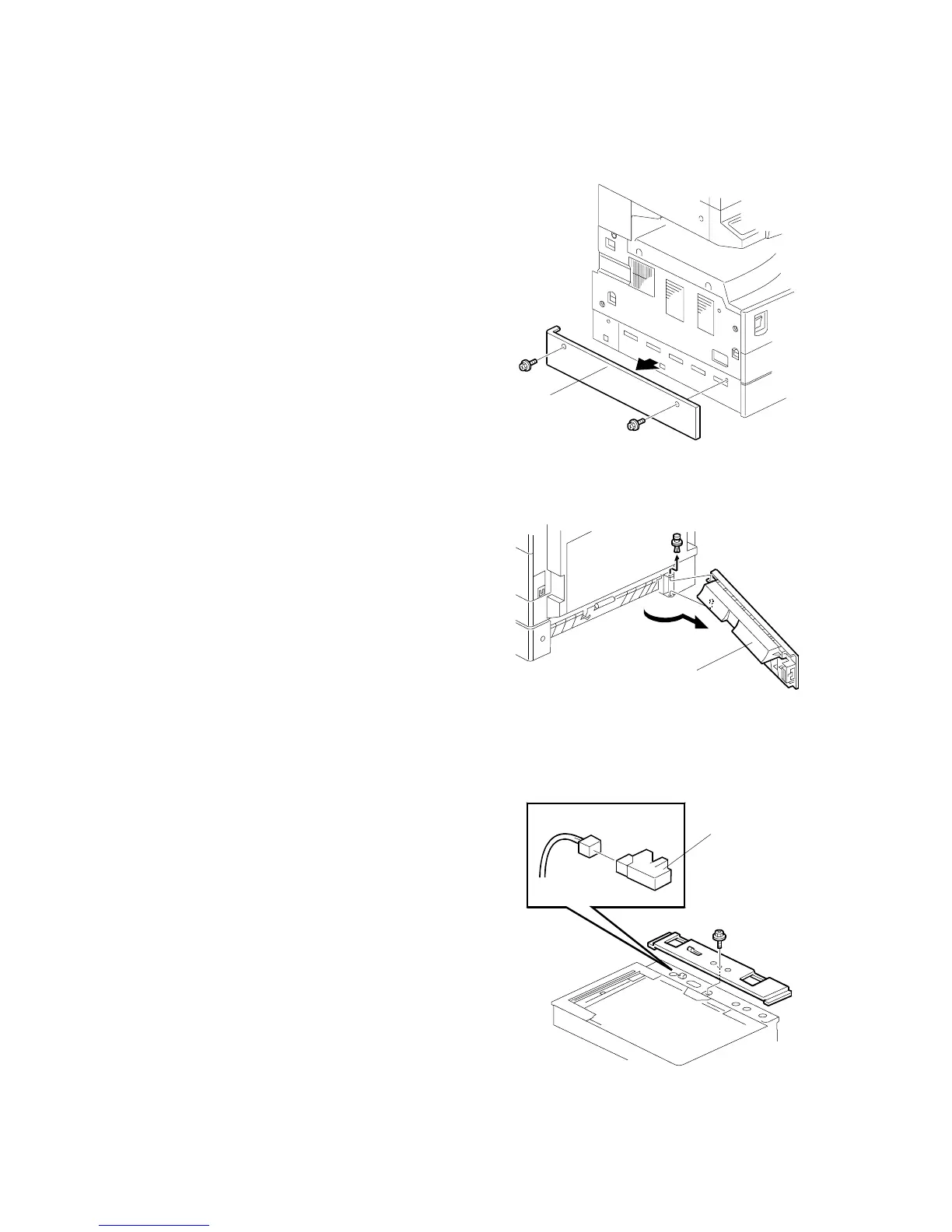

3.3.11 LEFT LOWER COVER (TWO-TRAY MODELS ONLY)
1. Left lower cover [A] ( x 2)
3.3.12 RIGHT LOWER COVER (TWO-TRAY MODELS ONLY)
1. Open the right lower cover [A].
2. Right lower cover (1 rivet)
3.3.13 PLATEN COVER SENSOR
1. Top rear cover ( 3.3.4)
2. Platen cover sensor [A] ( x 1)
B121R908.WMF
B121R949.WMF
B121R909.WMF
[A]
[A]
[A]
