Ricoh B121 - Right Door (B121;B122);Duplex Unit (B123)

EXTERIOR COVERS & OPERATION PANEL
B121 Series/B259 Series 3-8 SM
3.3.9 RIGHT DOOR (B121/B122)/DUPLEX UNIT (B123)
1. Right rear cover ( 3.3.8)
2. Open the right door [A].
3. Open the clamps [B] and disconnect the two connectors (B121/B122) [C] or
three connectors (B123).
4. Right Door.

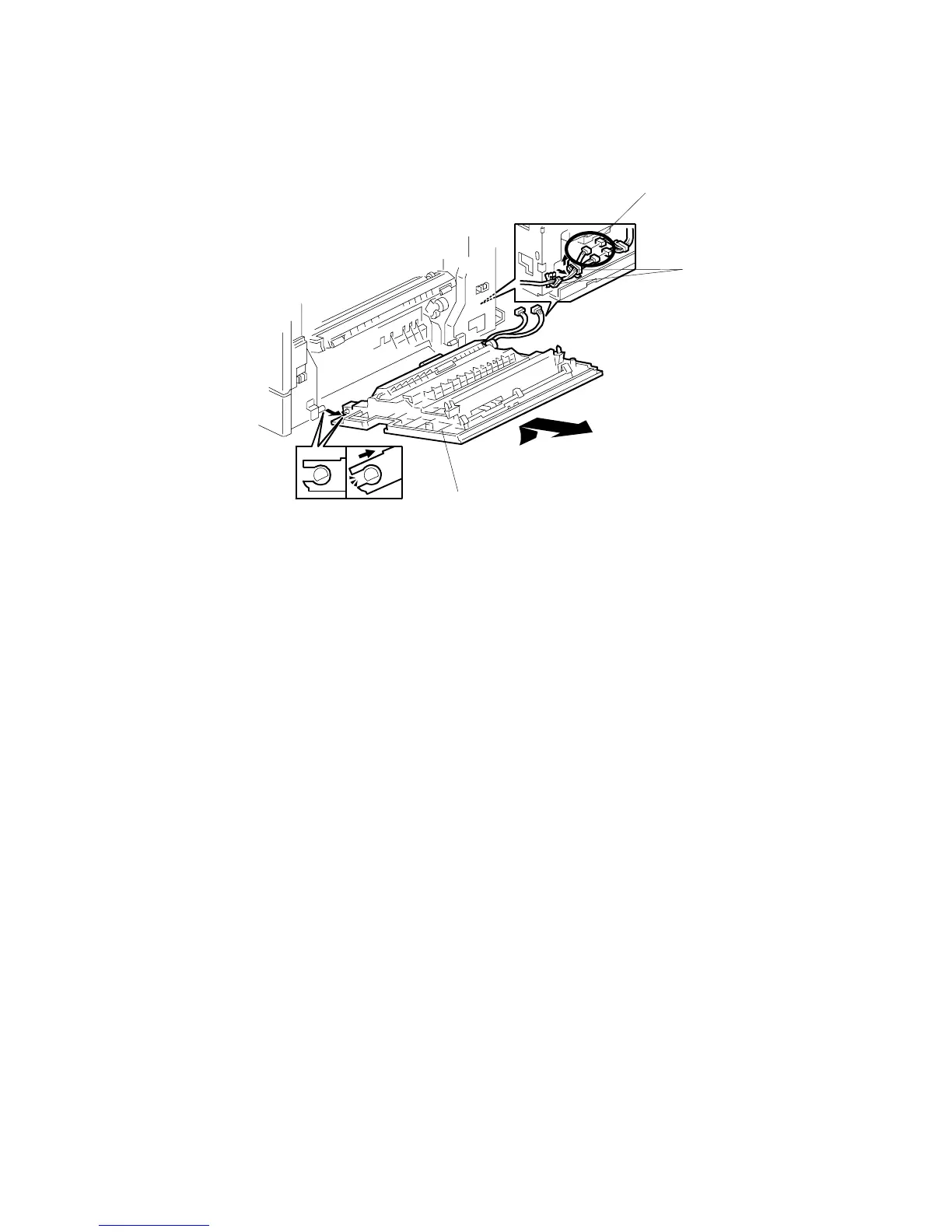

B121R917.WMF
[B]
[C]
[A]
