Ricoh B121 - Tray Heaters for the Optional Paper Feed Units

TRAY HEATERS
B121 Series/B259 Series 1-28 SM

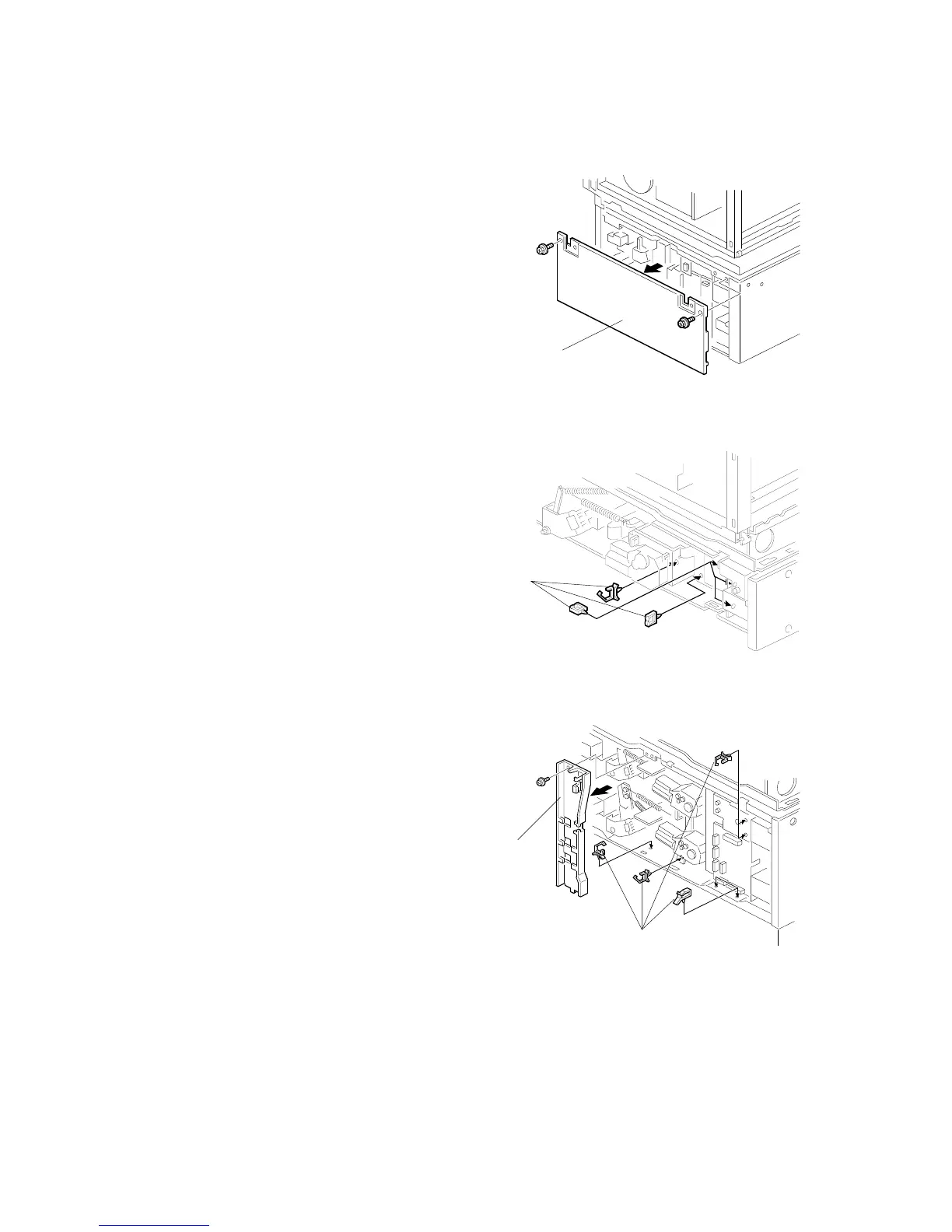

1.10.3 TRAY HEATERS FOR THE OPTIONAL PAPER FEED UNITS
1. Remove the rear cover for the paper tray
unit [A] ( x 2).
2. Two-tray unit only: Remove the cable
guide [B] ( x 1).
3. Install the clamps [C].
B121I202.WMF
B121I007.WMF
B121I004.WMF
[A]
[C]
- One-tray paper feed unit -
[C]
- Two-tray paper feed unit -
[B]
