IMAGE TRANSFER
SM 3-35 B121 Series/B259 Series
Replacement
Adjustment
3.9 IMAGE TRANSFER

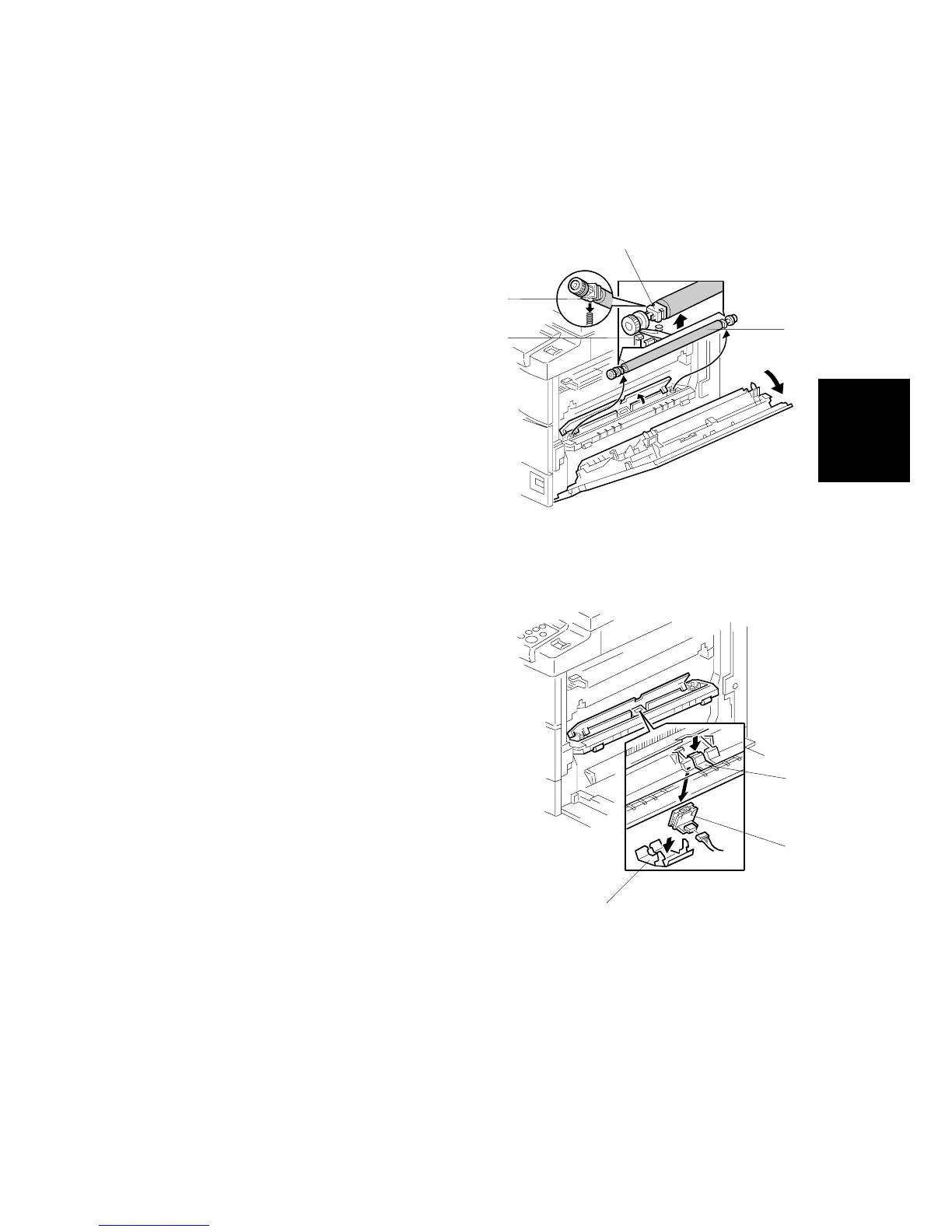

3.9.1 IMAGE TRANSFER ROLLER
CAUTION: Do not touch the transfer roller surface with bare hands
1. Open the right door.
2. Lift the plastic holders [A] with the
image transfer roller [B].
NOTE: Leave the springs under the
holders. When reassembling,
ensure that the pegs [C] on the
holders [D] engage with the
springs.
3.9.2 IMAGE DENSITY SENSOR
1. Open the right door.
2. Plastic cover [E]
3. Image transfer roller ( 3.9.1)
4. Push down on the notch [F] to free
the sensor.
5. Image density sensor [G] ( x 1)
B121R992.WMF
B121R993.WMF
[D]
[G]
[B]
[C]
[A]
[F]
[E]
