OTHER REPLACEMENTS
SM 3-45 B121 Series/B259 Series
Replacement
Adjustment
3.12 OTHER REPLACEMENTS

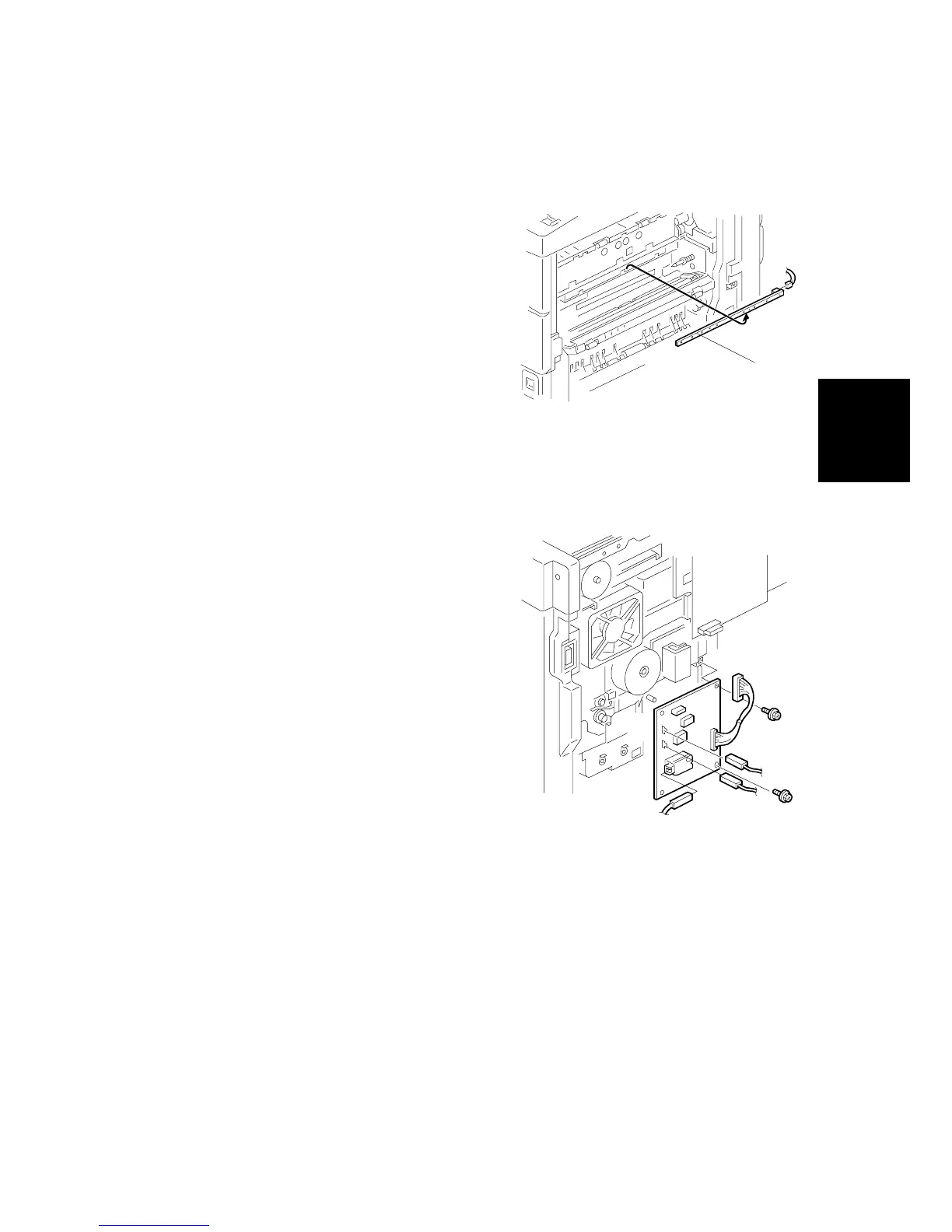

3.12.1 QUENCHING LAMP
1. PCU ( 3.6.1)
2. Quenching lamp [A] ( x 1)
3.12.2 HIGH-VOLTAGE POWER SUPPLY BOARD
4. Rear cover ( 3.3.1)
5. High-voltage power supply board [B]
( x 2, 3 standoffs, all connectors)
B121R502.WMF
B121R932.WMF
[A]
