IMAGE FUSING AND PAPER EXIT
B121 Series/B259 Series 6-62 SM

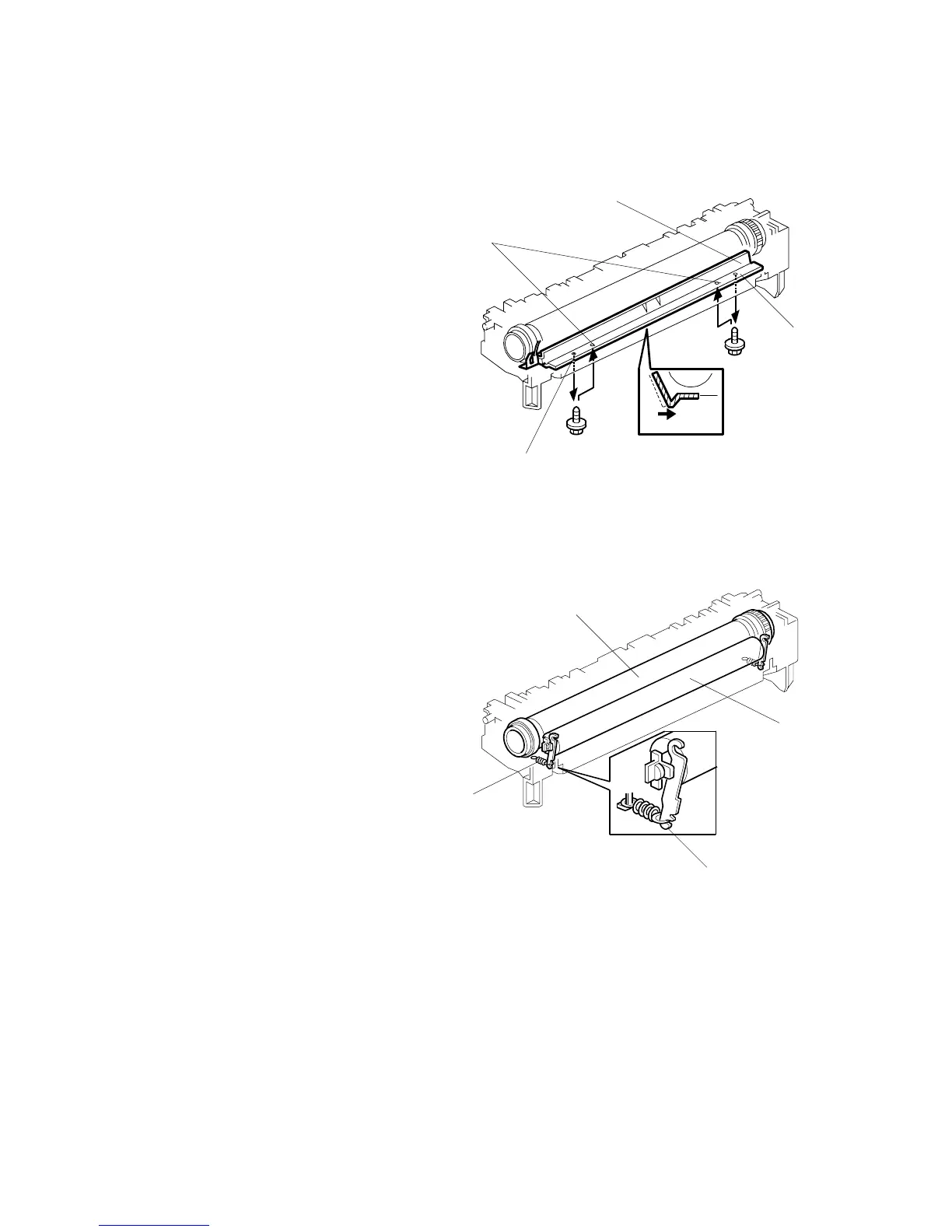

6.13.3 FUSING ENTRANCE GUIDE SHIFT
The entrance guide [A] is adjustable
for paper thickness to prevent
creasing. The outer screw holes [B]
on each side are used as the default
setting.
If creasing occurs frequently in the
fusing unit, adjust the entrance guide
to the right, by securing it with the
inner holes [C]. This allows more
direct access to the gap between the
hot roller and the pressure roller.
6.13.4 PRESSURE ROLLER
The pressure springs [A] constantly
apply pressure between the hot roller
[B] and the pressure roller [C].
Applied pressure can be changed by
adjusting the position of the pressure
springs. The spring is positioned at
the end [D] as the default setting.
B121D967.WMF
B121D968.WMF
[B]
[B]
[A]
[C]
[D]
[A]
[C]
[B]
