TRAY HEATERS
B121 Series/B259 Series 1-26 SM
1.10 TRAY HEATERS

CAUTION
Unplug the machine power cord before starting the following procedure.

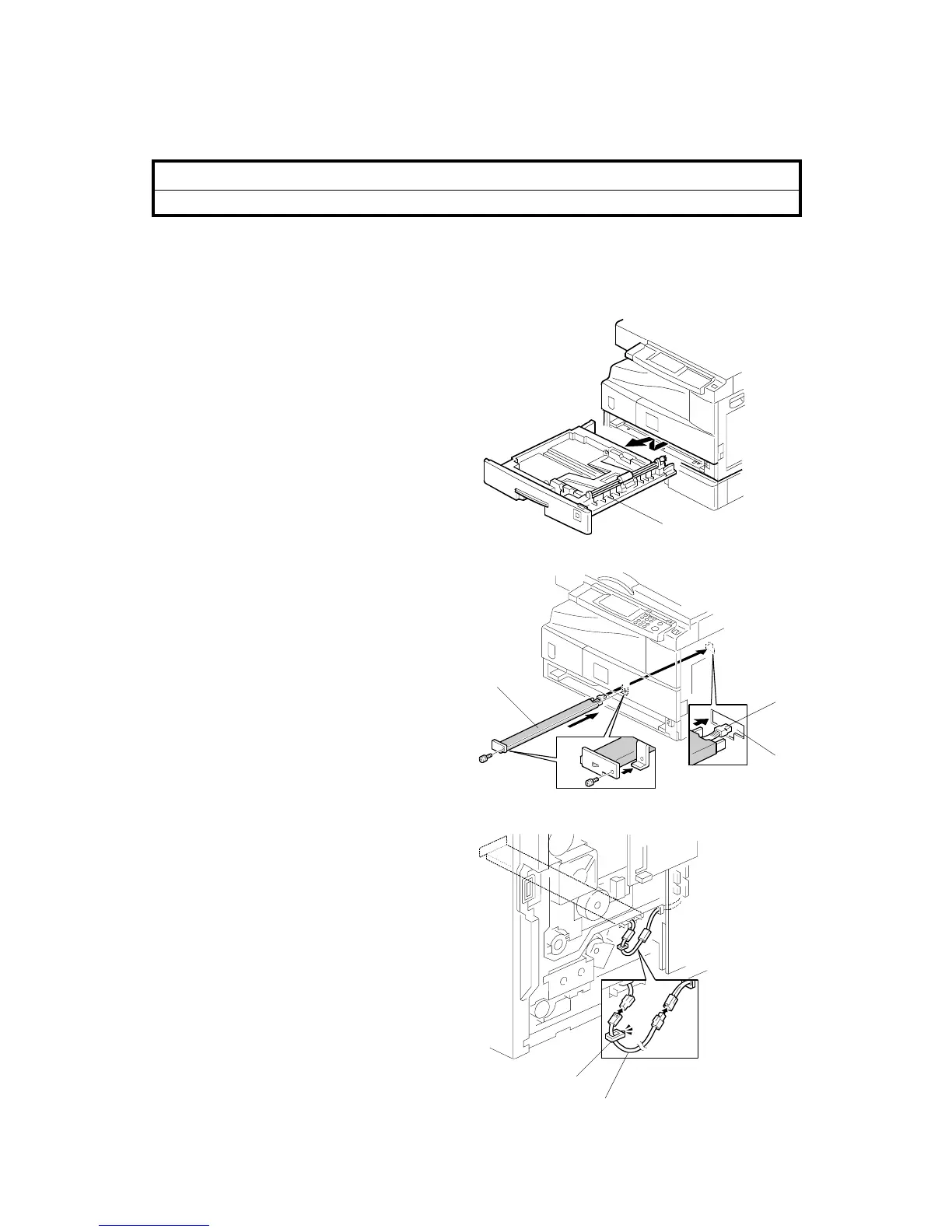

1.10.1 UPPER TRAY HEATER
1. Remove the 1st tray cassette [A].
2. Remove the rear cover ( 1.12).
3. Pass the connector [B] through the
opening [C] and install the tray
heater [D] ( x 1).
4. Install the relay cable [E].
5. Fix the cable with the clamp [F].
6. Reinstall the 1st tray cassette and
the rear cover.
B121I020.WMF
B121I121.WMF
B121I126.WMF
[E]
[F]
[D]
[B]
[C]
[A]
