ADF INSTALLATION
B121 Series/B259 Series 1-12 SM
1.5 ADF INSTALLATION

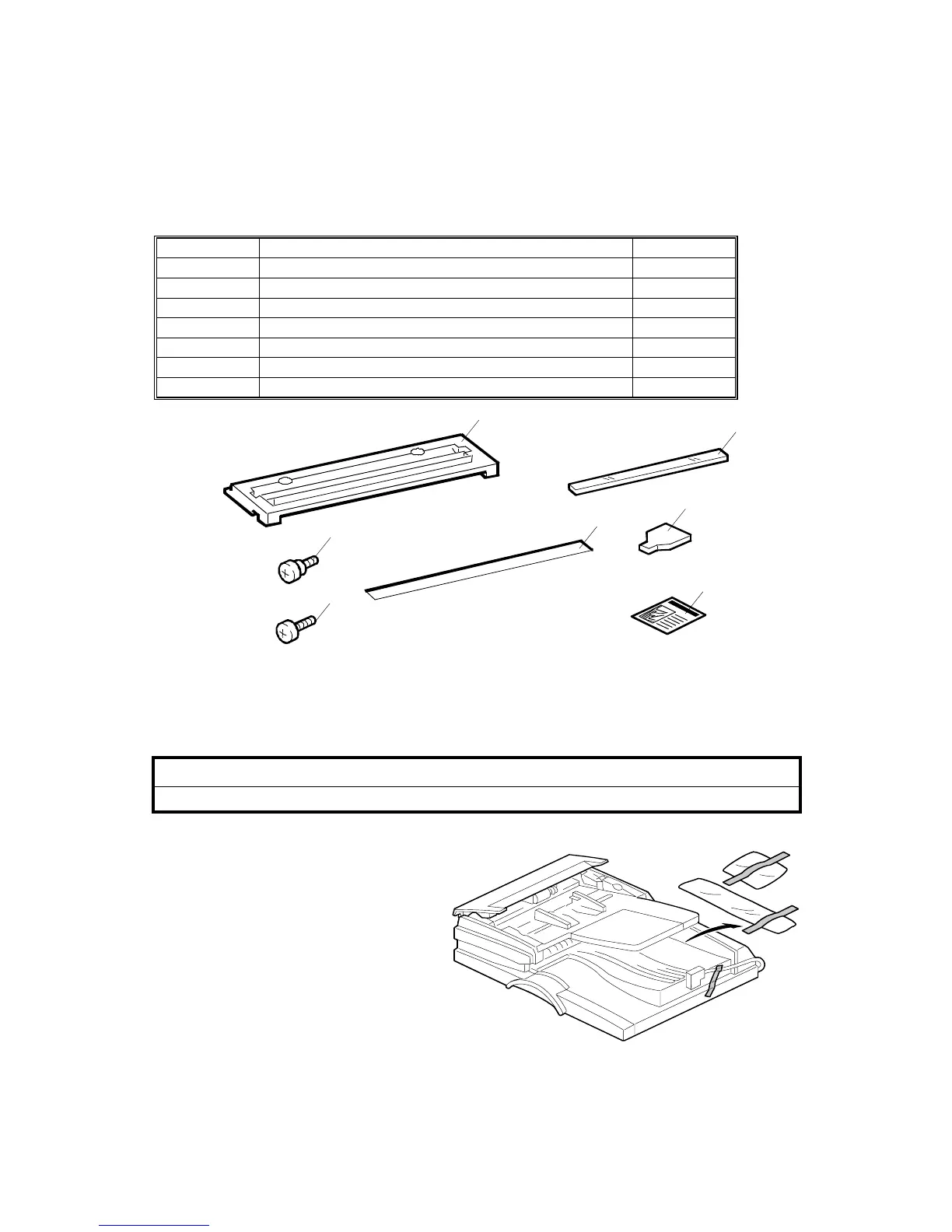

1.5.1 ACCESSORY CHECK
Check the quantity and condition of the accessories against the following list.
No. Description Q’ty
1 Scale Guide 1
2 DF Exposure Glass 1
3 Stud Screw 2
4 Fixing Screw 2
5 Original Size Decal 2
6 Screwdriver Tool 1
7 Attention Decal—Top Cover
1.5.2 INSTALLATION PROCEDURE
CAUTION
Unplug the machine power cord before starting the following procedure.
1. Remove the strips of tape.
B387I901.WMF
B387I151.WMF
1
2
3
4
5
6
7
