ADF INSTALLATION
SM 1-13 B121 Series/B259 Series
Installation

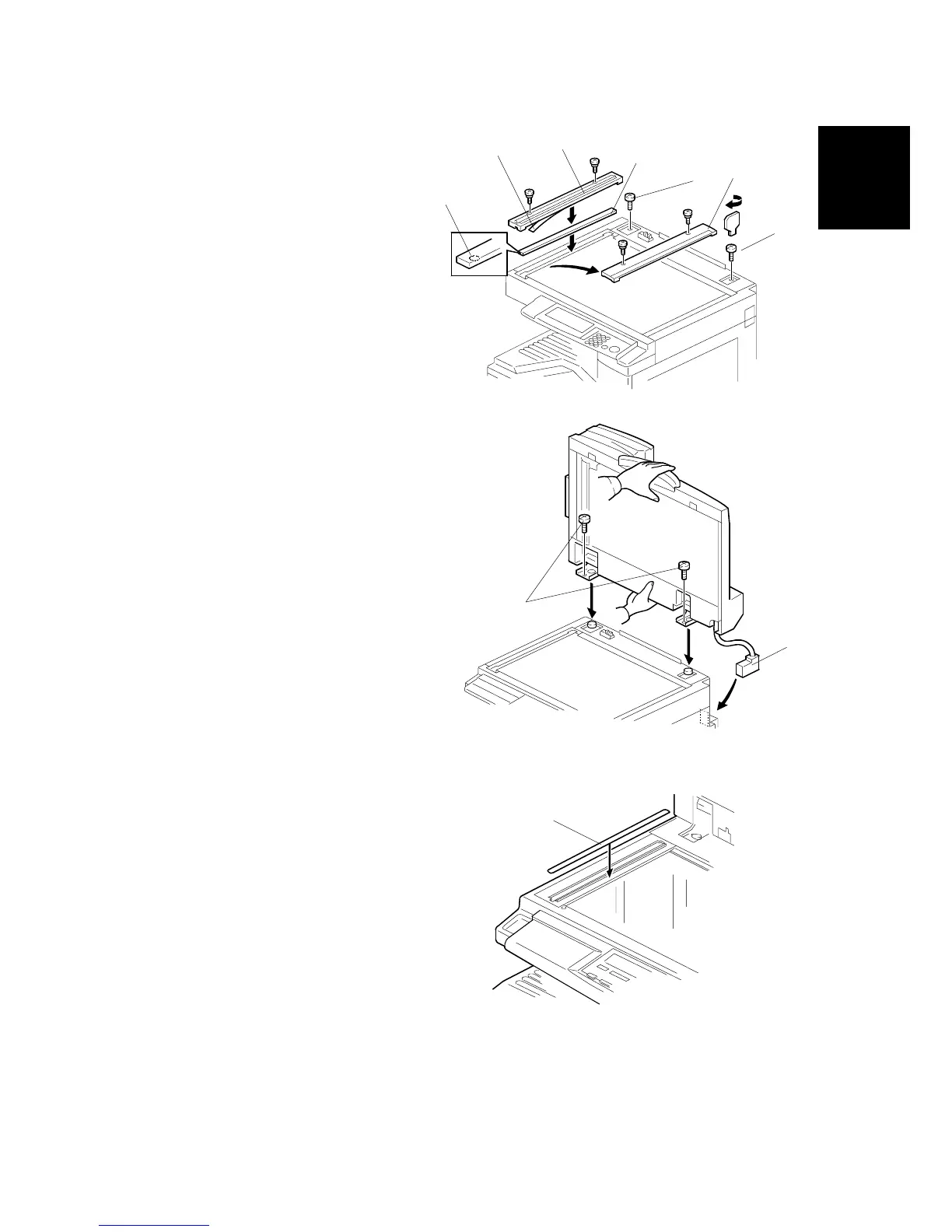

2. Remove the left scale [A]
( x 2).
3. Place the DF exposure glass
[B] on the glass holder. Make
sure that the white mark [C] is
on the bottom at the front end.
4. Peel off the backing [D] of the
double-sided tape attached to
the rear side of the scale guide
[E], then install the scale guide
( x 2 [removed in step 2]).
5. Install the two stud screws [F].
6. Mount the ADF on the copier,
then slide it to the front.
7. Secure the ADF unit with the
fixing screws [G].
8. Connect the cable [H] to the
copier.
9. Attach the appropriate scale
decal [I] as shown.
