Ricoh B121 - Lower Tray Heater (Two-Tray Model Only)

TRAY HEATERS
SM 1-27 B121 Series/B259 Series
Installation

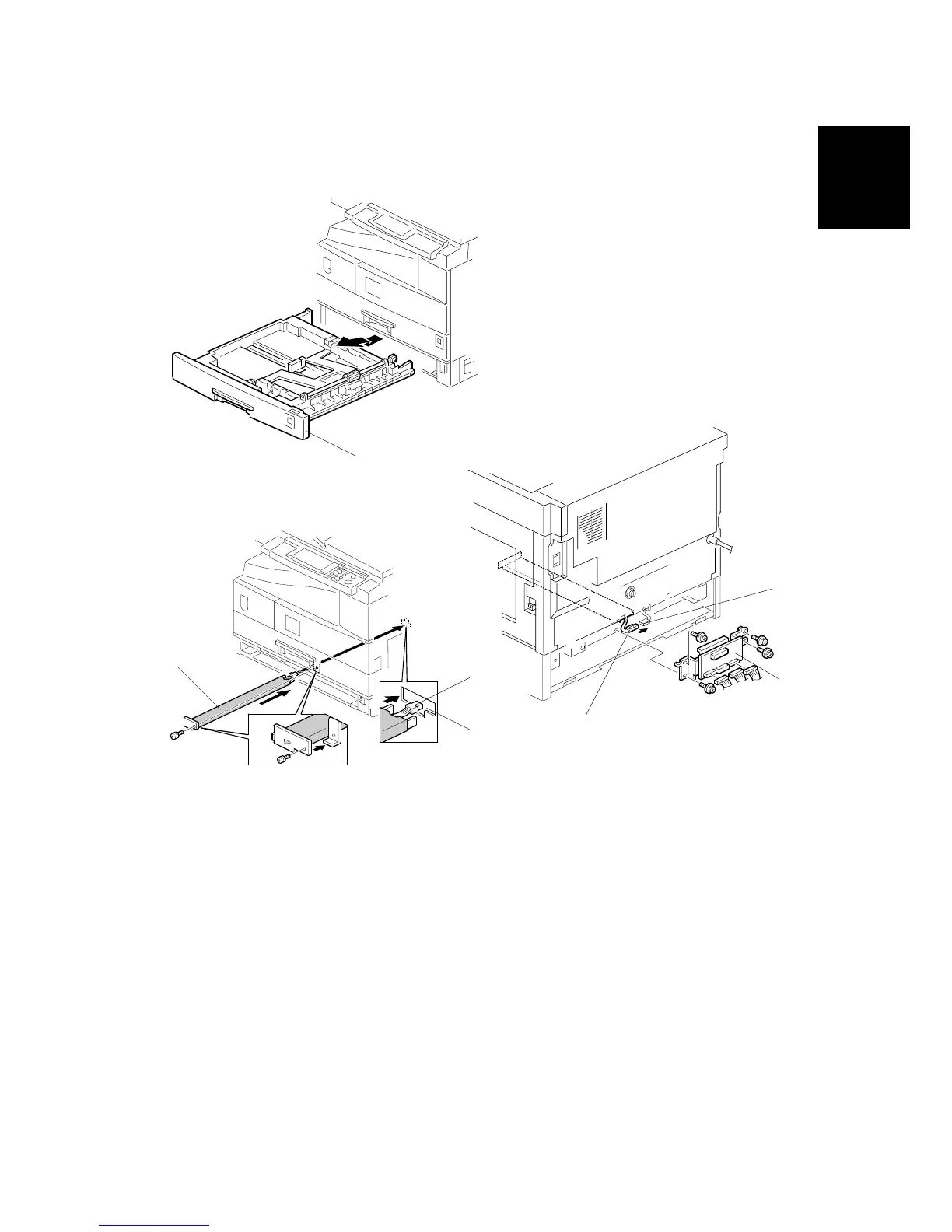

1.10.2 LOWER TRAY HEATER (TWO-TRAY MODEL ONLY)
1. Remove the 2nd tray cassette [A].
2. Remove the rear lower cover ( 3.3.2).
3. B123 only:
Remove the DCB [B] with bracket ( x 4,  x 3).
4. Pass the connector [C] through the opening [D] and install the tray heater [E]
( x 1).
5. Join the connectors [F, G].
6. Reinstall the 2nd tray cassette, DCB, and rear lower cover.
B121I129.WMF
B121I930.WMF
B121I122.WMF
[E]
[B]
[G]
[F]
[A]
[C]
[D]
