TRAY OPEN SWITCH
B621 8 SM
2.5 TRAY OPEN SWITCH

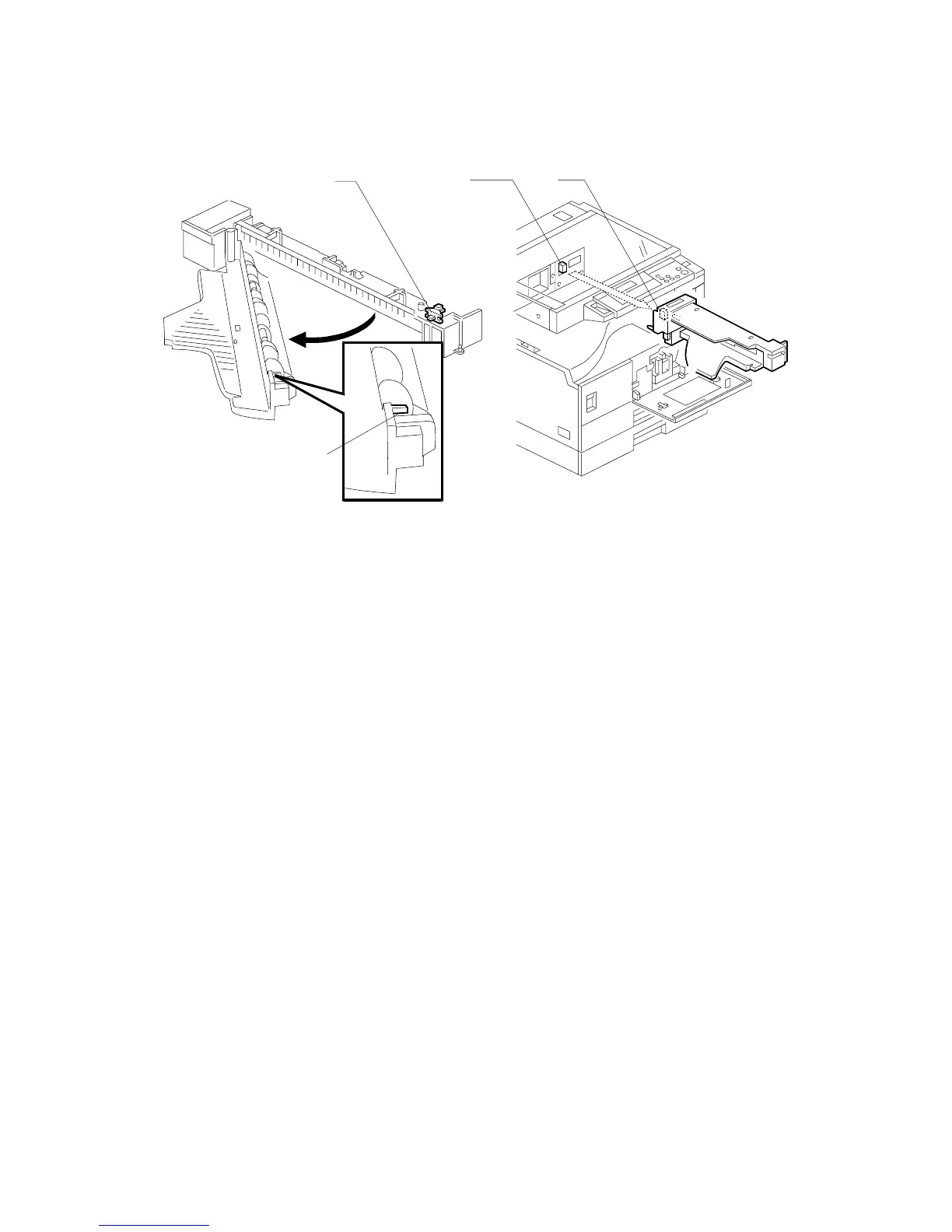

The tray open switch [A] detects the mechanical link [B] at the front end. When you
open the base unit, the message "Cover Open" is displayed with a diagram
indicating the location.
The message "Cover Open" is also displayed when the connector of the one-bin
tray base unit [C] disconnects from the connector of the copier [B]. In this case, the
message is not cleared until you install the base unit correctly.
