COPY ADJUSTMENTS: PRINTING/SCANNING
B121 Series/B259 Series 3-52 SM

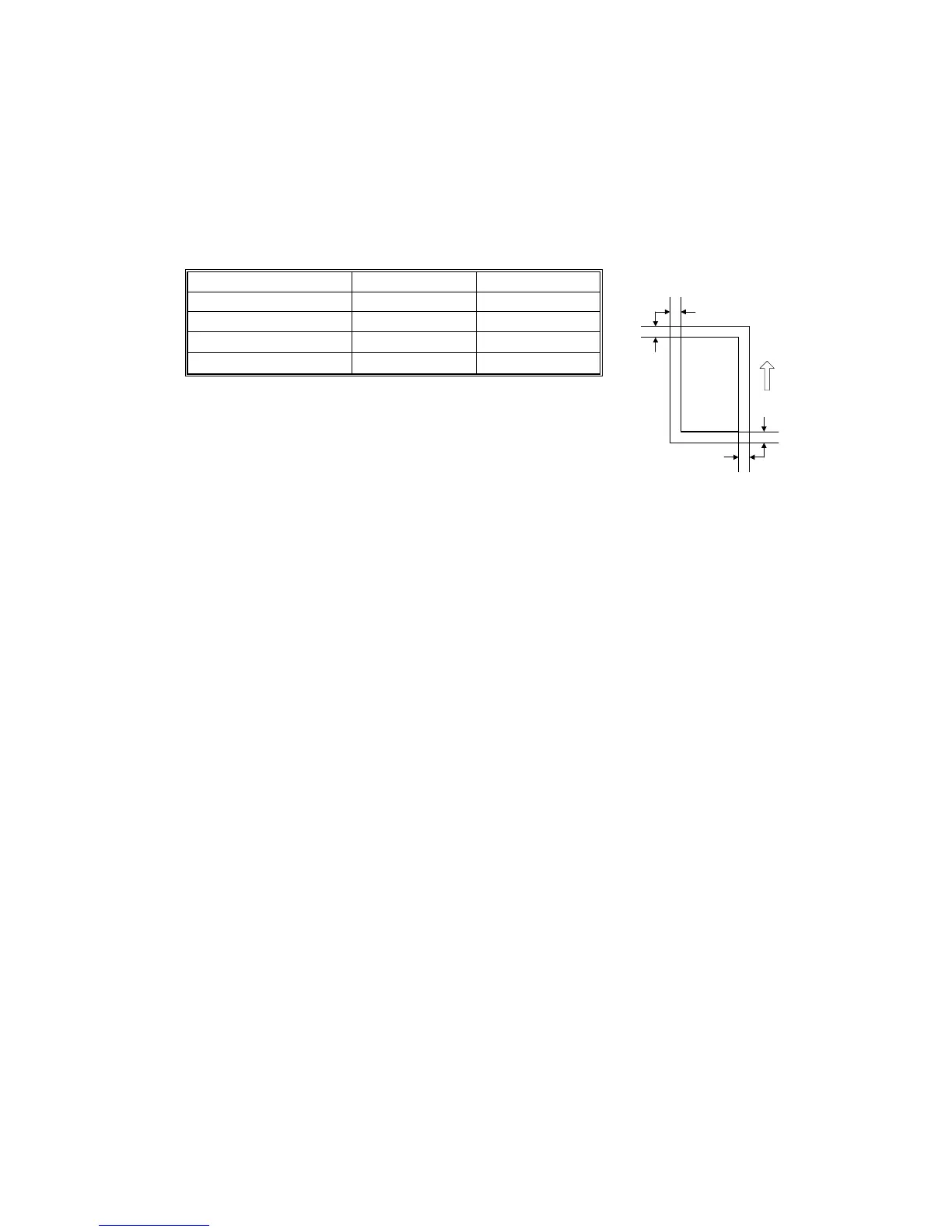

Blank Margin
NOTE: If the leading edge or side-to-side registration cannot be adjusted to within
the specification, then adjust the leading-edge blank margin or the left-side
blank margin.
1. Check the trailing edge and right side edge blank margins, and adjust them
using the following SP modes.
SP mode Specification
Trailing edge SP2-101-2 2 +2.5/–1.5 mm
Right edge SP2-101-4 2 +2.5/–1.5 mm
Leading edge
SP2-101-1
2 ± 1.5 mm
Left edge
SP2-101-3
2 ± 1.5 mm
Main Scan Magnification
1. Print the single-dot grid pattern (SP5-902-5).
2. Check the magnification (the grid size should be 2.7 x 2.7 mm), and if
necessary use SP2-998 to adjust it. The specification is 100 ± 1%.
D
C
B
A
B121R506.WMF
A: Trailing Edge Blank Margin
B: Right Edge Blank Margin
C: Leading Edge Blank Margin
D: Left Edge Blank Margin
