FIRMWARE UPDATE PROCEDURE FOR MFP MACHINES
B121 Series/B259 Series 5-92 SM
5.2.3 FIRMWARE UPDATE PROCEDURE FOR MFP MACHINES
The following is the revised procedure for firmware update on the MFP model using
an SD card.
Before beginning the following, first confirm
which firmware version(s) are currently installed
in the machine with SP7-801-255.Print the
firmware list with SP5-990-005, and retain this
printout for reference.
1. Turn off the main power switch.

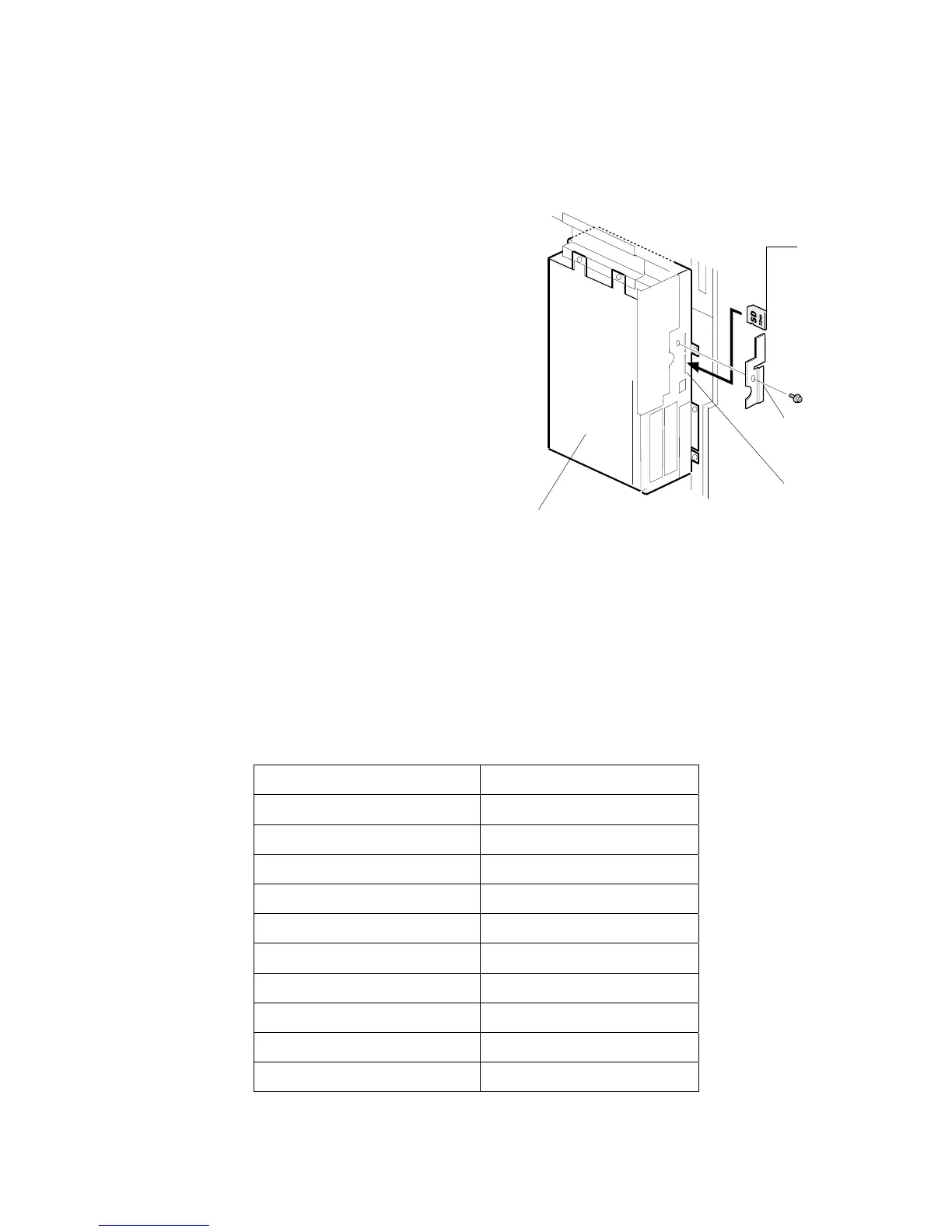

2. Remove the slot cover [A] ( x 1)
3. With the label on the SD card [B] facing as
shown in the diagram, insert the SD card
into the lower slot [C] on the controller box
[D]. Slowly push the SD card into the slot so
it locks in place.
4. Make sure the SD card is locked in place.
NOTE: To remove the SD, push it in to unlock
the spring lock and then release it so it pops out of the slot.
5. Disconnect the network cable or wireless option from the copier if it is
connected.
6. Disconnect the Fax cable from the copier if it is connected.
7. Switch the main power switch on.
• After about 5 seconds, the LCD will display “Please wait…” Then, about 60
seconds later, the LCD will display “Program Update Menu P.01” on the
first line and the name of the firmware on the second line (e.g.
System/Copy).
NOTE: The following are the display names for each type of firmware.
Firmware Name LCD Display Name
BICU Engine
FCU GWFCU3-1 (WW)-1
ServiceCardCopyEXP System/Copy
ServiceCardNetFile Network DocBox
ServiceCardNIB Network Support
ServiceCardFAX Fax
ServiceCardWebSystem Web Support
Scanner SD#1 Scanner
Printer SD#1 Printer
SecurityModule_NRS Security Module
B121S915.WMF
[B]
[C]
[D]
[A]
Rev. 09/2004
⇒
