EXTERIOR COVERS & OPERATION PANEL
B121 Series/B259 Series 3-4 SM
3.3 EXTERIOR COVERS & OPERATION PANEL

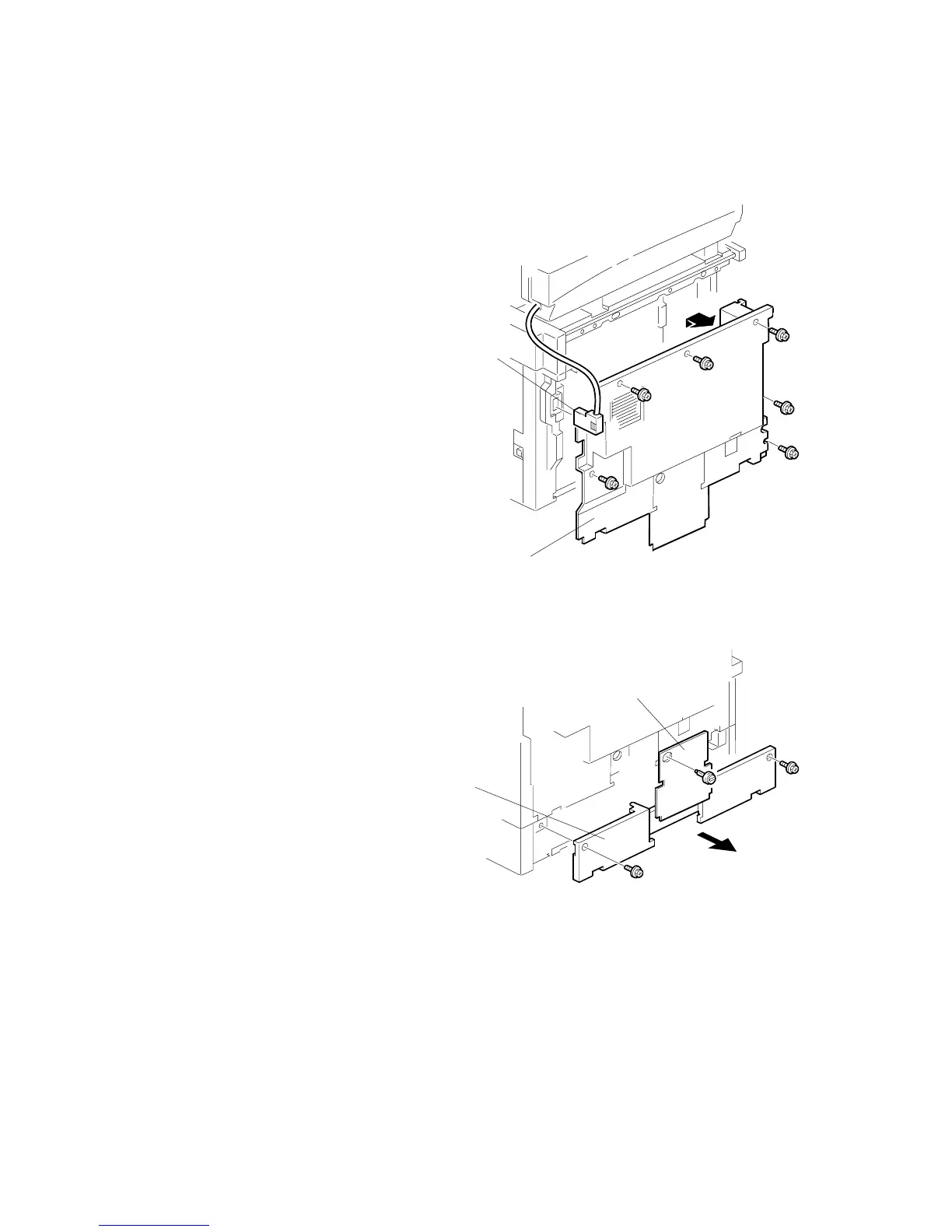

3.3.1 REAR COVER
1. Unplug the DF cable [A] (if installed).
2. Rear cover [B] ( x 6)
3.3.2 REAR LOWER COVER (TWO-TRAY MODELS ONLY)
1. Rear cover ( 3.3.1) or tray
harness cover [A] (1 rivet).
2. Rear lower cover [B] ( x 2)
B121R901.WMF
B121R902.WMF
