ARDF
B379
ORIGINAL TRANSPORT AND EXIT
SM 7 B379
2.3 ORIGINAL TRANSPORT AND EXIT
2.3.1 SINGLE-SIDED ORIGINALS

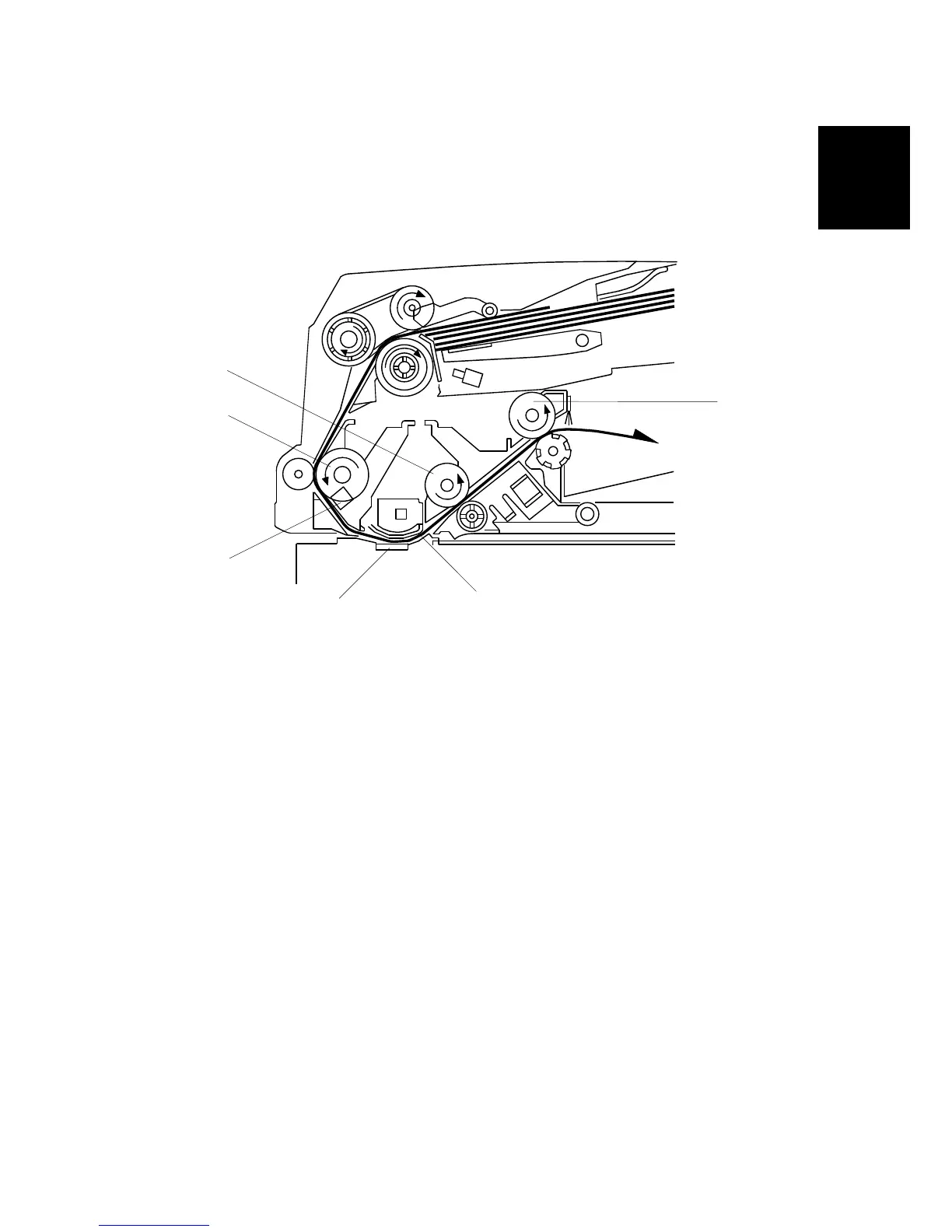

The DF feed motor feeds the separated original to the first transport roller [A] at
maximum speed. When the registration sensor [B] detects the leading edge, the
motor stops for a short while. Then the feed and transport motors turn on again,
and feed the original through the scanning area at a lower speed (the scanning
area contains the original exposure guide [D] and DF exposure glass [C]). After
scanning, the original is fed out by the second transport roller [E] and exit roller [F].
B379D506.WMF
[A]
[C]
[D]
[F]
[E]
[B]
