DUPLEX UNIT (DUPLEX MODELS ONLY)
B121 Series/B259 Series 3-44 SM

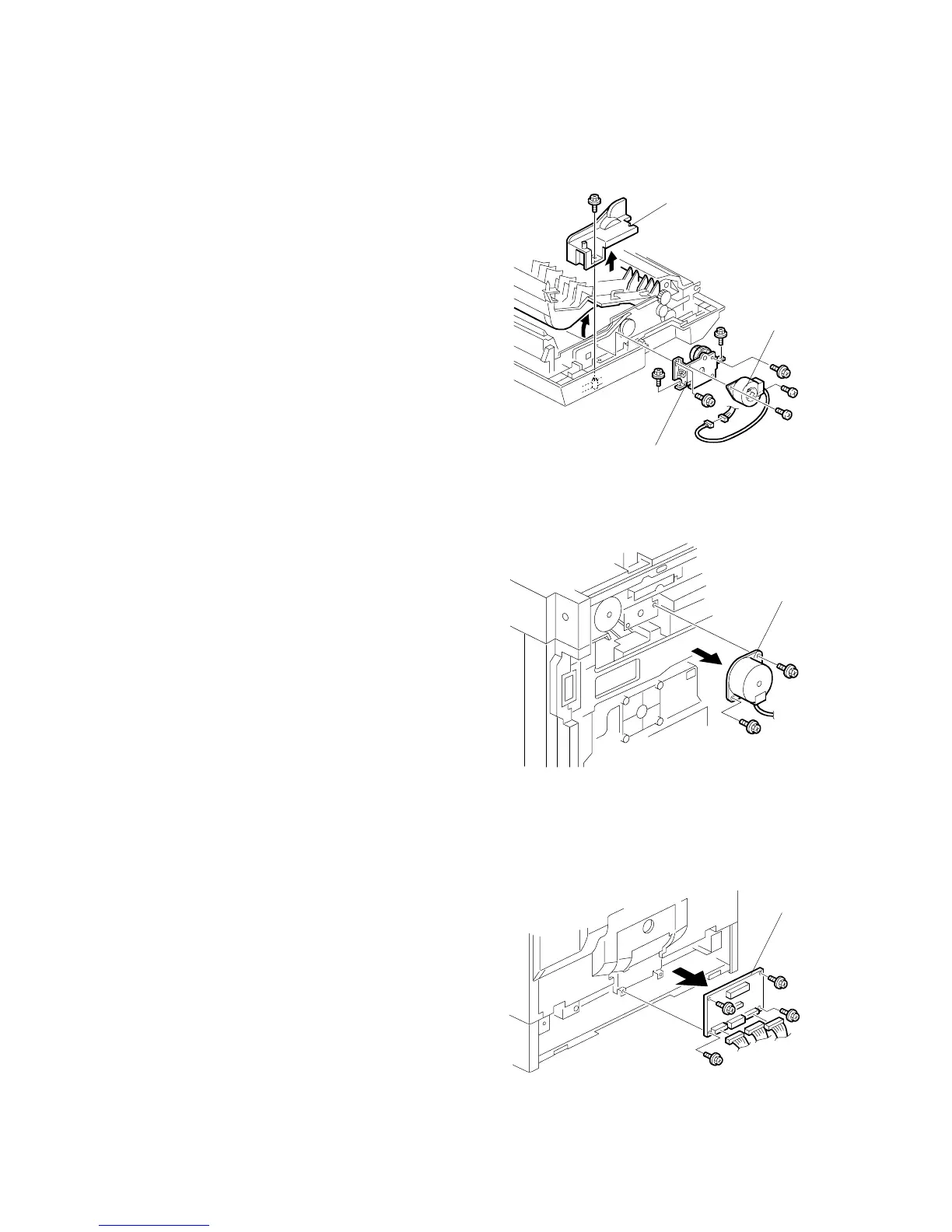

3.11.4 DUPLEX TRANSPORT MOTOR
1. Open the right door.
2. Detach the chain and spring from the
frame, and lower the right door.
3. Cover [A] ( x 1)
4. Motor bracket [B] ( x 4,  x 1).
5. Duplex transport motor [C] ( x 2)
3.11.5 DUPLEX INVERTER MOTOR
1. Rear cover
2. Exhaust fan ( 3.12.5)
3. Duplex inverter motor [A]
( x 2,  x 1)
3.11.6 DUPLEX CONTROL BOARD
1. Rear lower cover (3.3.2)
2. Duplex control board [A]
( x 4 , all connectors)
B121R942.WMF
B121R999.WMF
B121R501.WMF
