PAPER FEED SECTION
B121 Series/B259 Series 3-28 SM

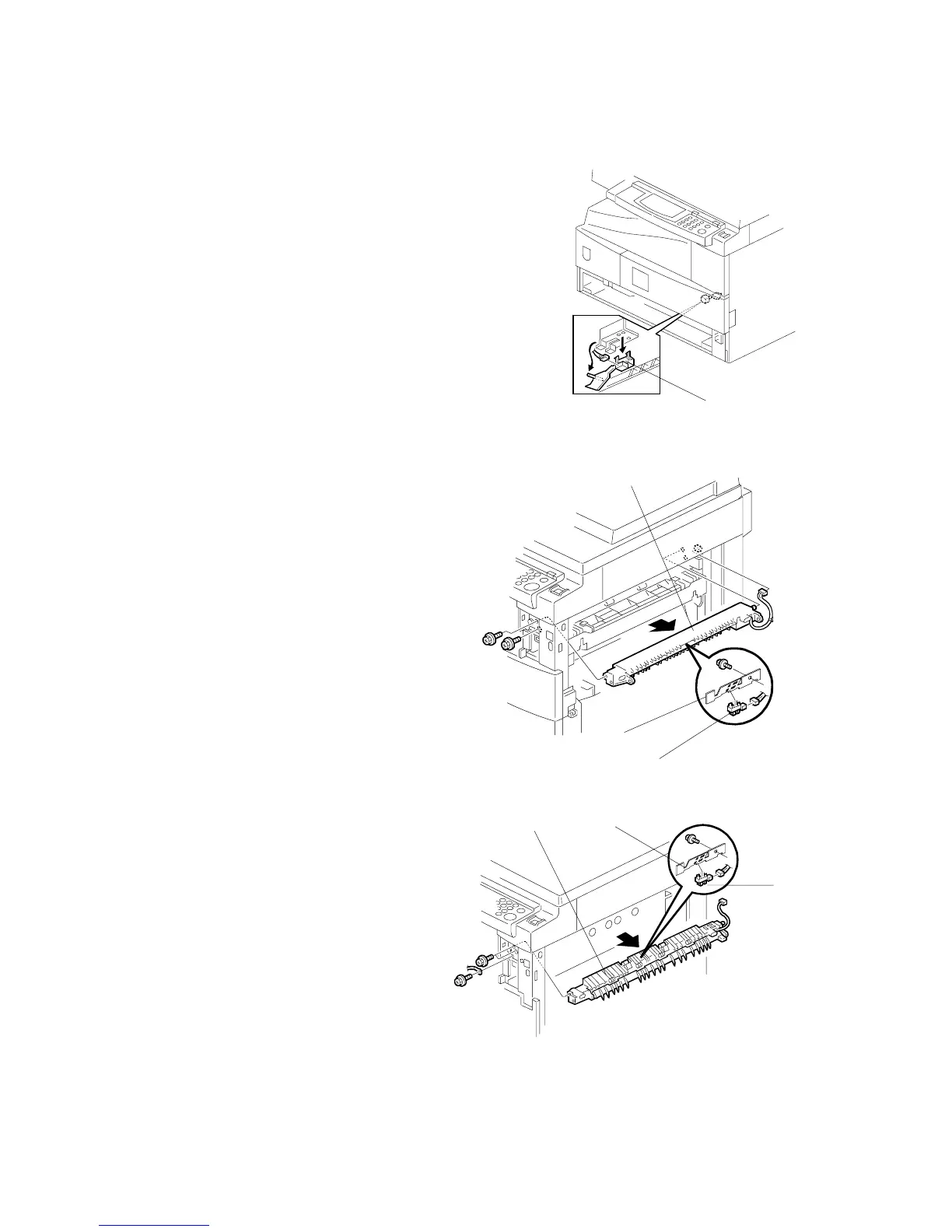

3.8.3 PAPER END SENSOR
1. Paper cassette
2. Paper end sensor [F] ( x 1)
3.8.4 EXIT SENSOR
Non-duplex Models
1. Open the right door.
2. Front right cover ( 3.3.7)
3. Guide [A] ( x 2)
4. Exit sensor bracket [B] ( x 1)
5. Exit sensor [C] ( x 1)
Duplex Models
1. Open the right door.
2. Front right cover ( 3.3.7)
3. Upper guide [D] ( x 2)
4. Exit sensor bracket [E] ( x 1)
5. Exit sensor [F] ( x 1)
B121R980.WMF
B121R920.WMF
B121R919.WMF
[F]
[F]
[D]
[B]
[A]
[C]
[E]
