OTHER REPLACEMENTS
B121 Series/B259 Series 3-50 SM

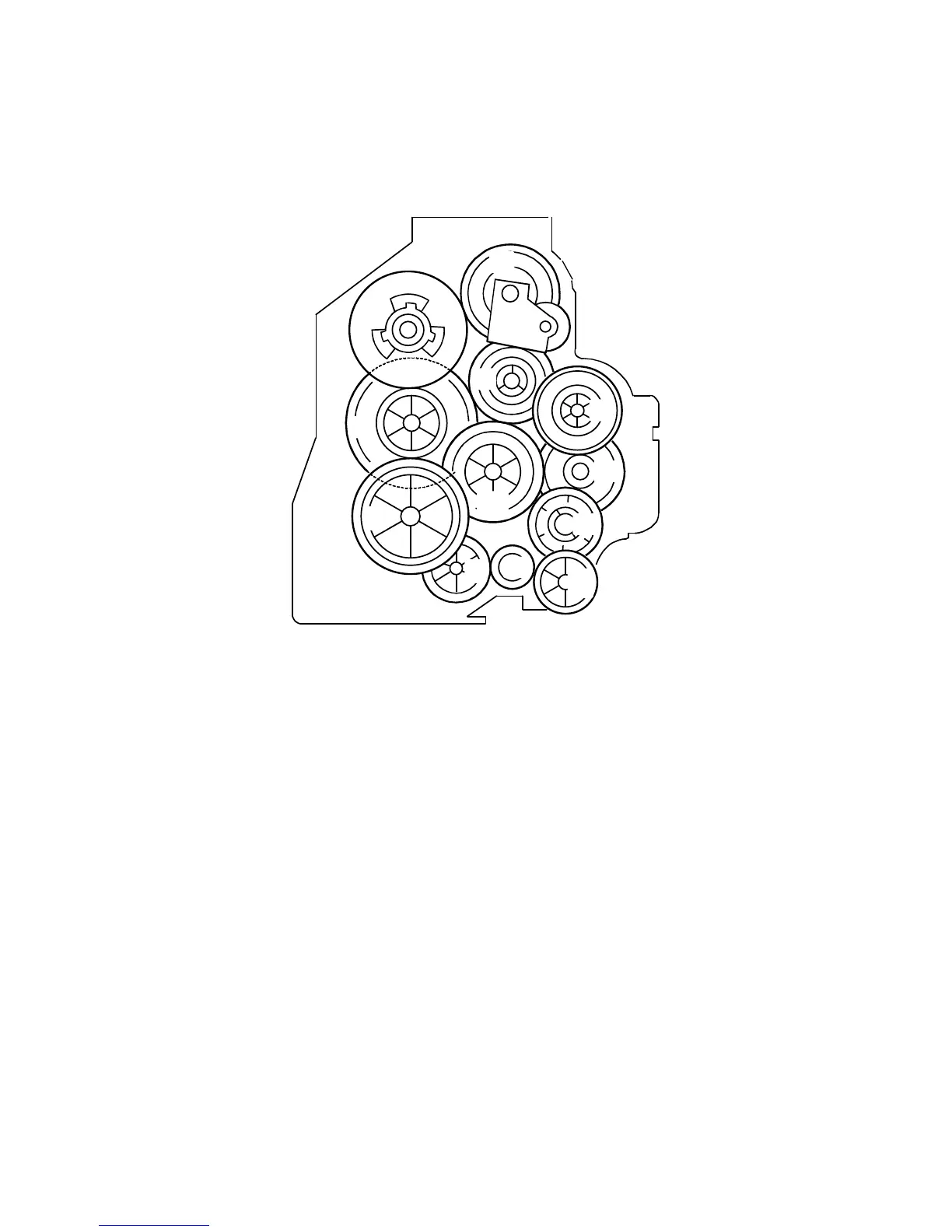

Gear Arrangement in the Gearbox
The gears are numbered 1 to 12 in the order in which they are to be installed in the
gearbox. These numbers appear both on the gearbox and on the front (exposed)
surface of each gear. If the gears fall out, start by finding gear number 1 and
installing it onto location number 1 (setting it into place so that the side with the
printed number remains visible). Then install the remaining gears (2 to 12) in the
same way.
11
08
07
09
10
02
03
01
05
12
06
04
B121R944.WMF
