Ricoh B121 - Original Set Sensor; Transport Motor

ORIGINAL SET SENSOR
B387 18 SM

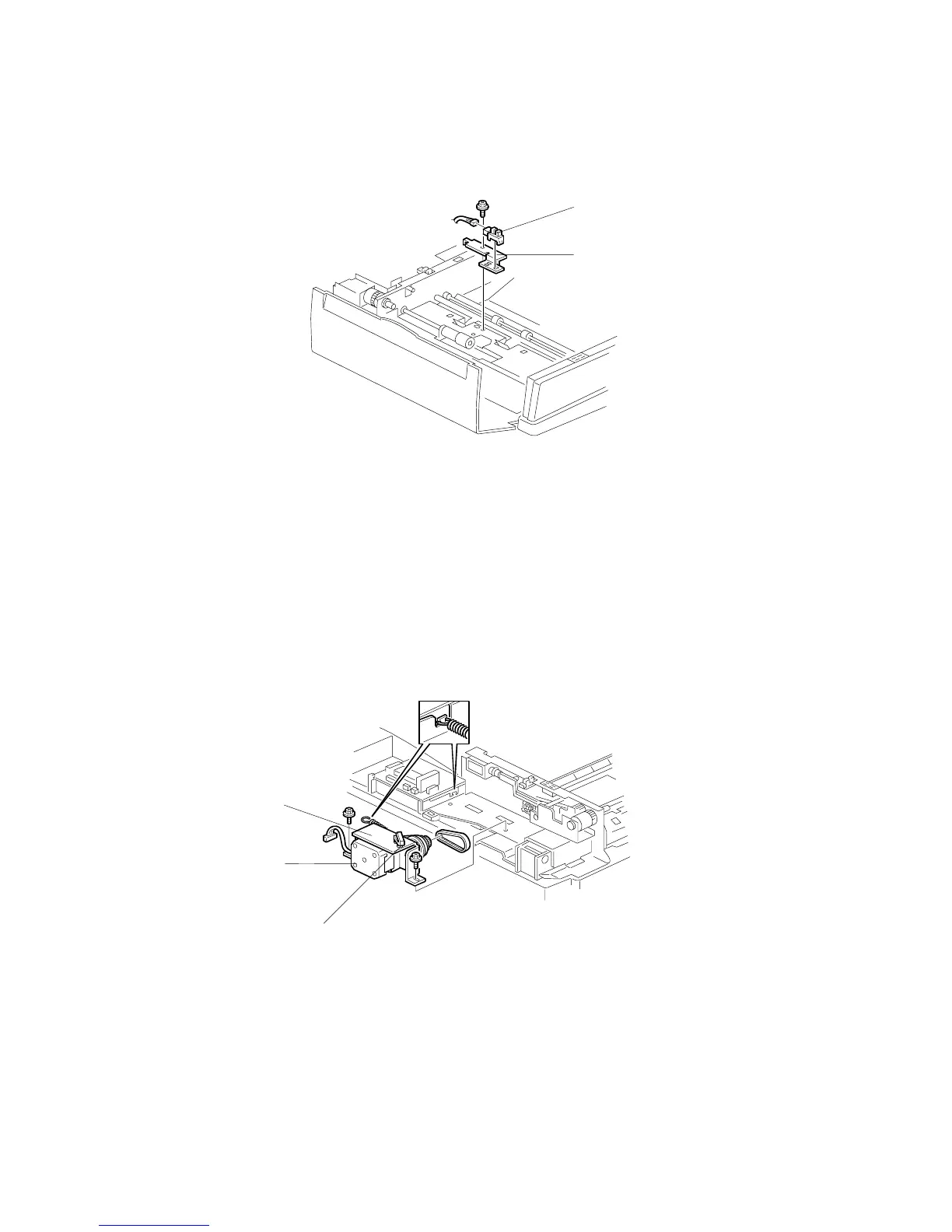

3.7 ORIGINAL SET SENSOR
1. Original entrance guide ( 1.1.4)
2. Sensor bracket [A] ( x 1)
3. Original set sensor [B] ( x 1)
3.8 TRANSPORT MOTOR
1. Rear cover ( 3.1.1)
2. Open the wire clamp [C] at the top of the motor bracket [D].
3. Motor bracket [D] ( x 2 , 1 spring)
NOTE: Unhook the spring at the board side.
4. Transport motor [E] ( x 2,  x 1)
B387R109.WMF
B387R111.WMF
[A]
[B]
[C]
[E]
[D]
