ONE-BIN TRAY INSTALLATION
B121 Series/B259 Series 1-24 SM
12. Reattach the front right cover [A].
13. Close the front cover [B].
14. Install the exit tray [C] as follows:
Keep the front end higher than the rear end.
Push the left hook into the opening in the copier.
Push the right hook into the opening in the copier.
15. Pull the support [D] out of the left end of the exit tray.
16. Insert the support into the left end of the paper exit tray [E] (of the copier).
17. Turn the main switch on.
18. Check the operation.

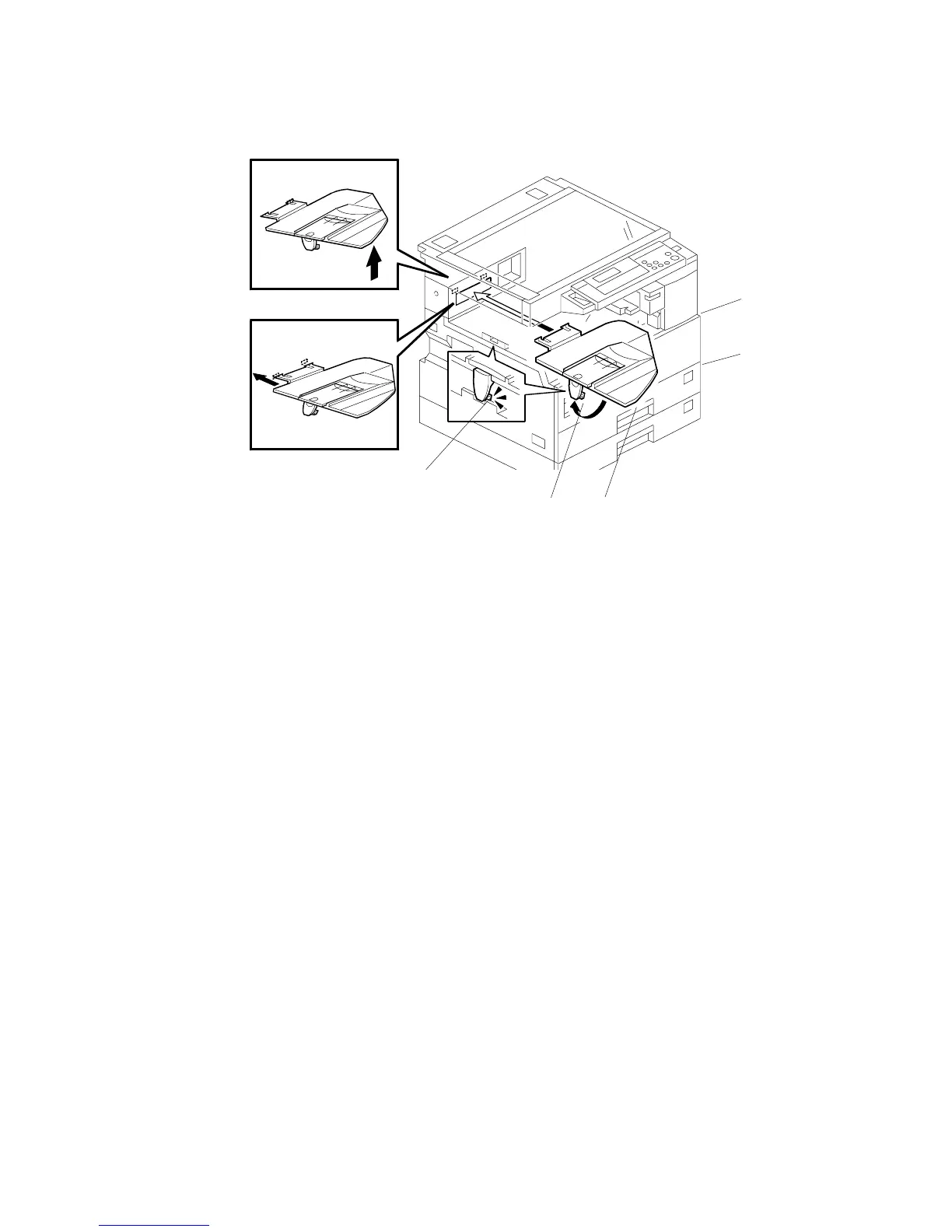

B621I903.WMF
[A]
[B]
[C]
[D]
[E]
