ONE-BIN TRAY INSTALLATION
SM 1-23 B121 Series/B259 Series
Installation

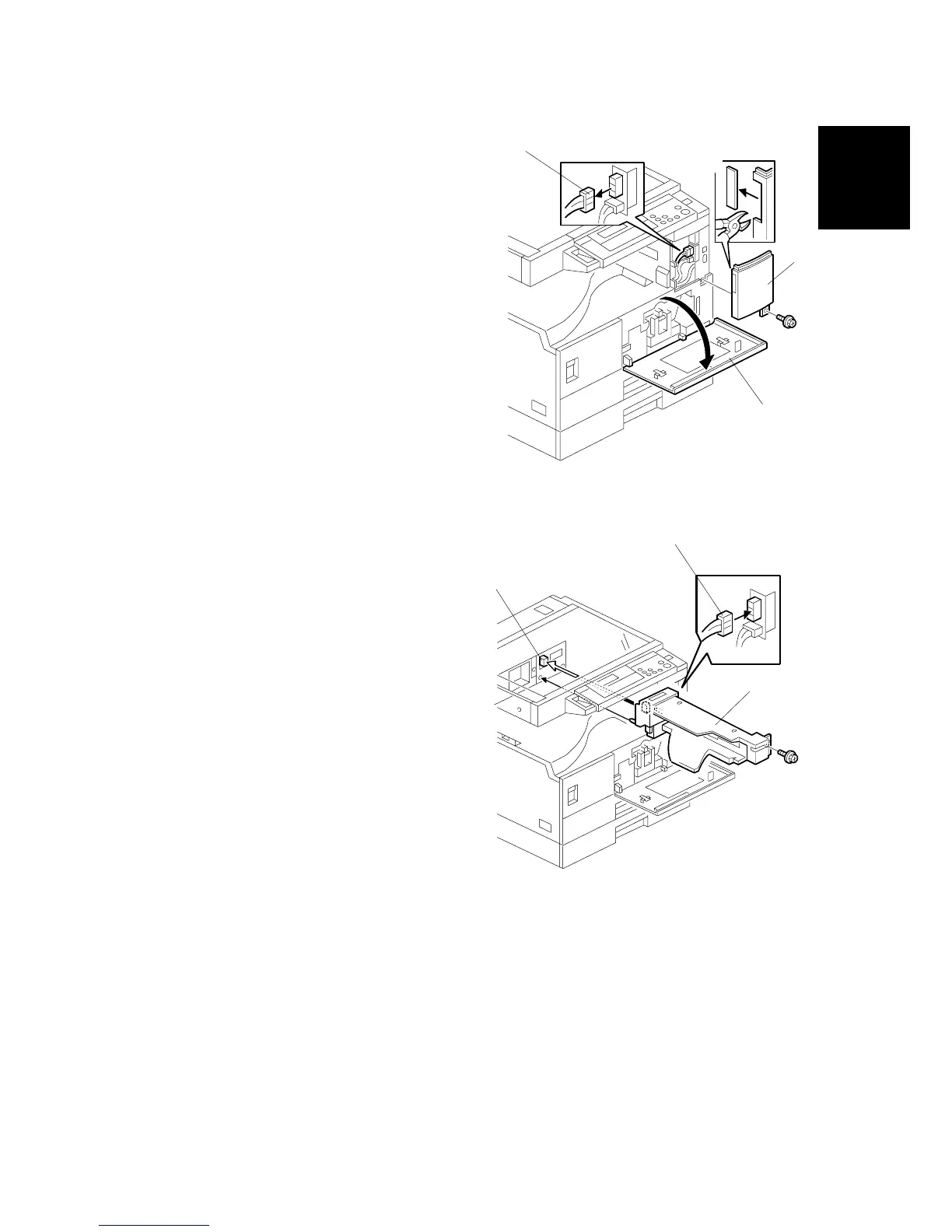

4. Open the front cover [A].
5. Remove the front right cover [B]
( x 1).
6. Disconnect the connector [C].
7. Cut the front cover as shown, to make
an opening [D] for the 1-bin tray.
8. Install the 1-bin tray [E].
9. Make sure the connectors [F] are
connected firmly.
10. Fasten the screw.
11. Connect the connector [G] that you
removed in step 6.
NOTE: Make sure that the connector
is connected.
B621I002.WMF
B621I904.WMF
[A]
[B]
[C]
[D]
[E]
[F]
[G]
