COPIER INSTALLATION
SM 1-5 B121 Series/B259 Series
Installation
1.2.3 INSTALLATION PROCEDURE
CAUTION
Unplug the machine power cord before starting the following procedure.

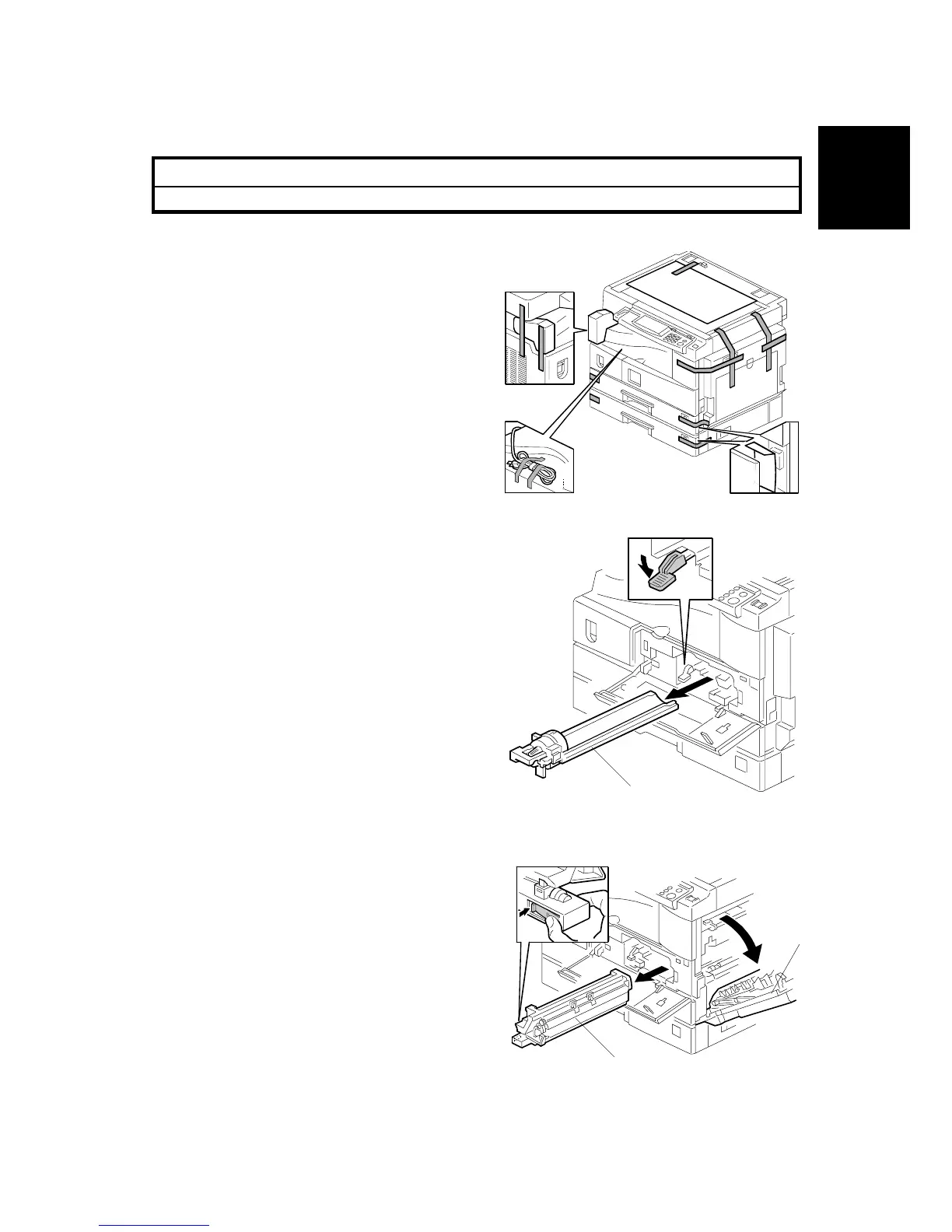

1. Remove filament tape and other
padding.
2. Open the front door and remove the
toner bottle holder [A].
3. Open the right door [B], and remove
the PCU (photoconductor unit) [C].
NOTE: The PCU is locked when the
right door is closed.
B121I904.WMF
B121I912.WMF
B121I913.WMF
[A]
[C]
[B]
To Next Page
