TRAY OPEN SWITCH
B621 2 SM

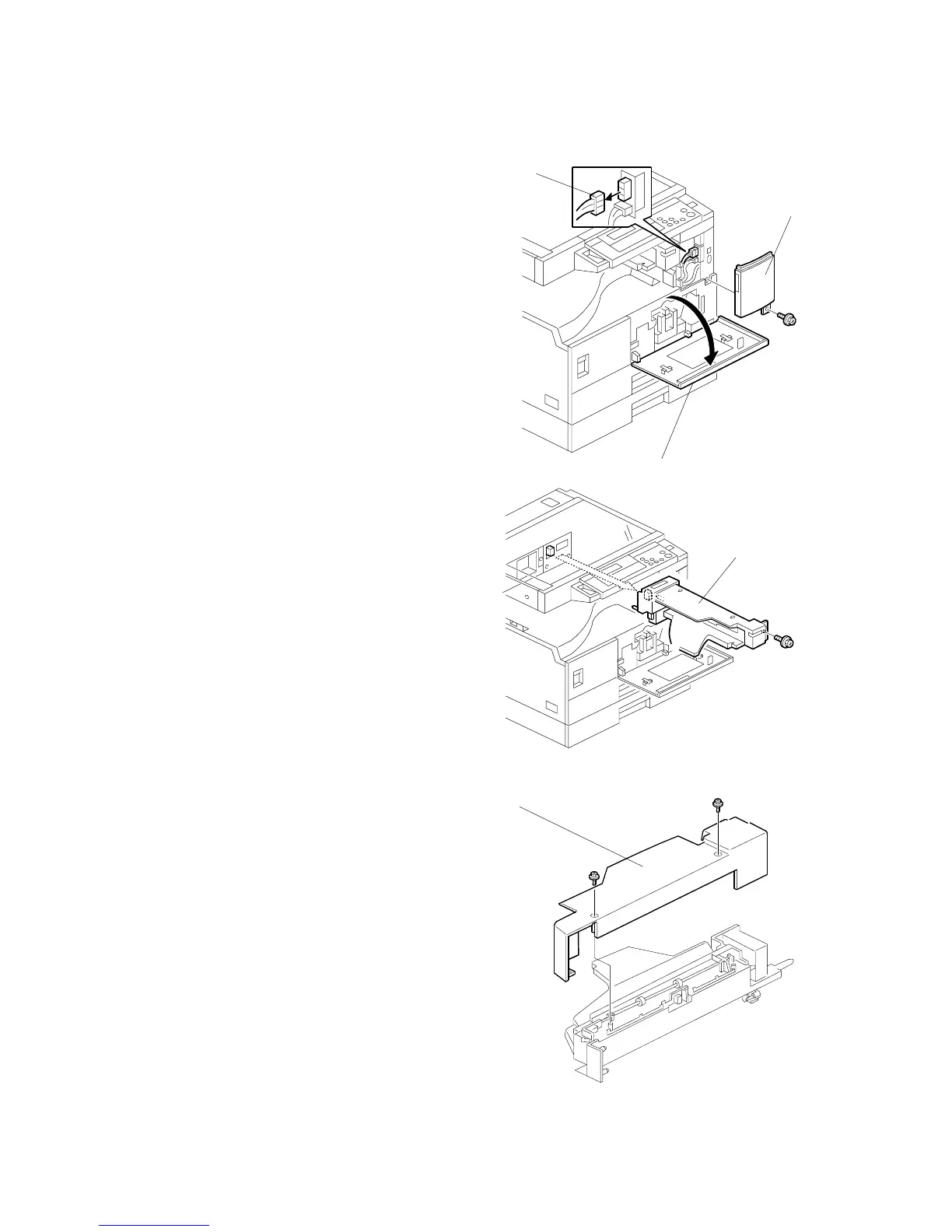

2. Open the front cover [A].
3. Front right cover [B] ( x 1)
4. Disconnect the connector [C].
5. Base unit [D] ( x 1)
6. Top cover [E] ( x 2)
B621R902.WMF
B621R903.WMF
B621R905.WMF
[A]
[B]
[C]
[D]
[E]
