ARDF INSTALLATION
B121 Series/B259 Series 1-10 SM

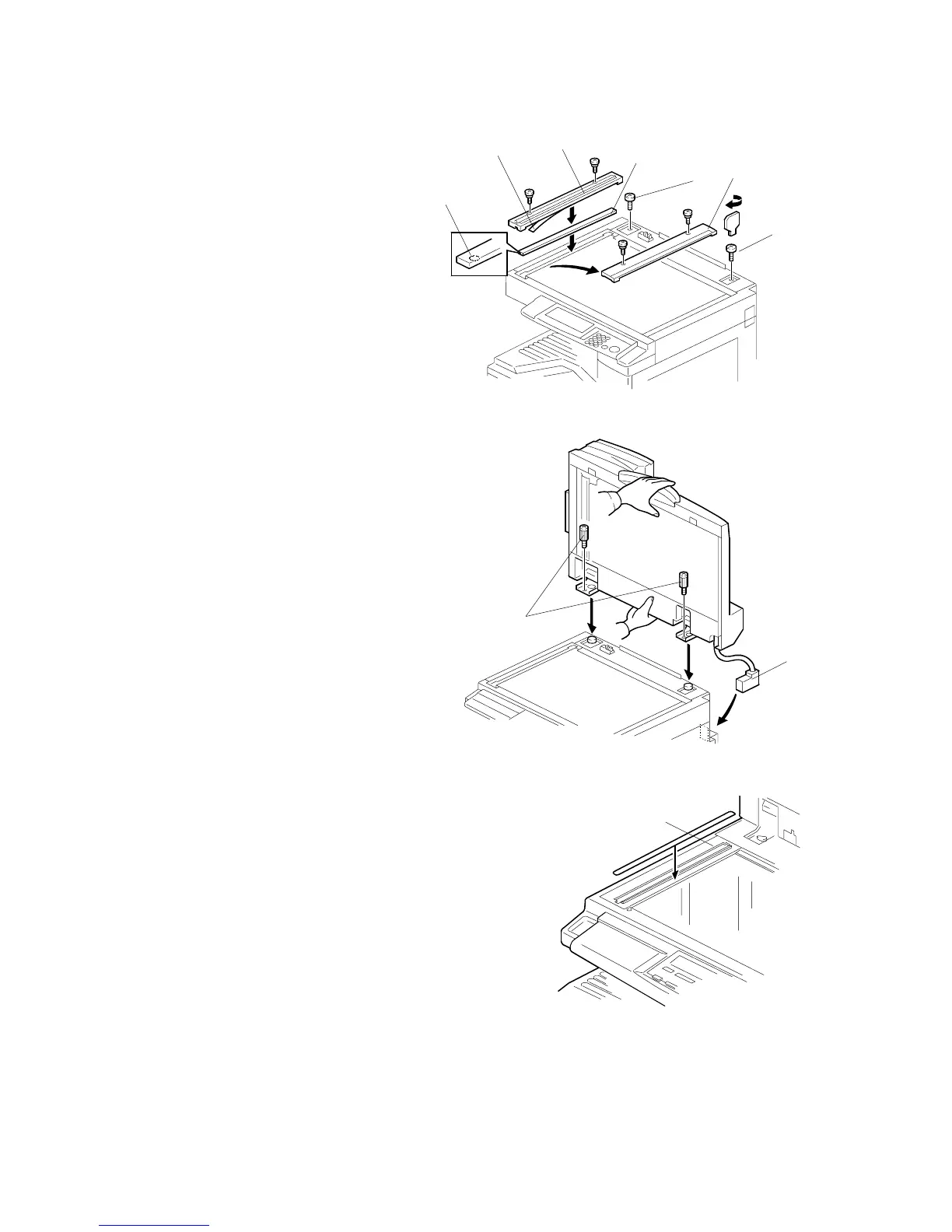

2. Remove the left scale [A]
( x 2).
3. Place the DF exposure glass
[B] on the glass holder. Make
sure that the white mark [C] is
on the bottom at the front end.
4. Peel off the backing [D] of the
double-sided tape attached to
the rear side of the scale guide
[E], then install the scale guide
( x 2 [removed in step 2]).
5. Install the two stud screws [F].
6. Mount the ARDF on the copier,
then slide it to the front.
7. Secure the ARDF unit with the
knob screws [G].
8. Connect the cable [H] to the
copier.
9. Attach the appropriate original size decal [I]
as shown.
