PICK-UP ROLLER
B387 16 SM

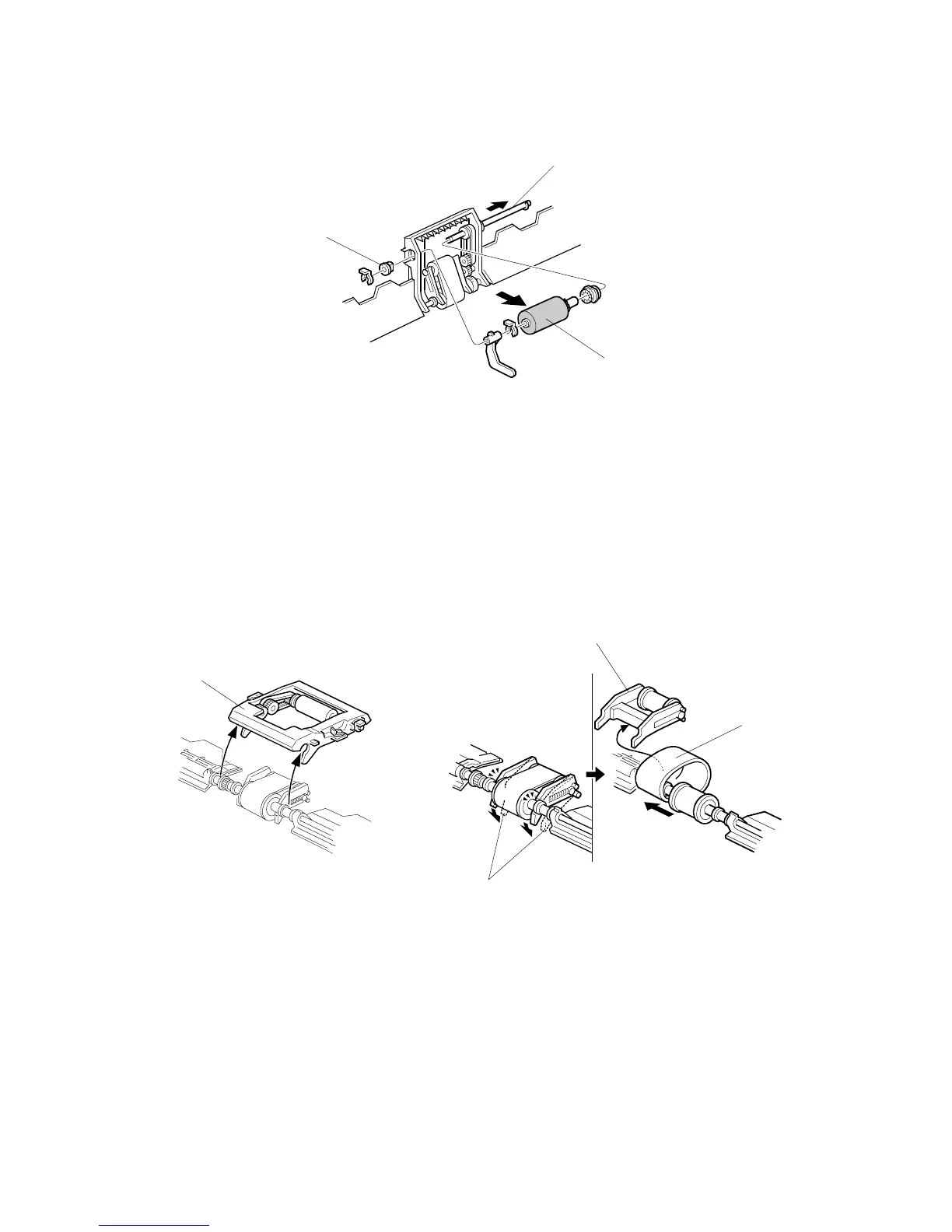

3.4 PICK-UP ROLLER
1. Feed unit ( 1.2)
2. Remove 2 clip rings and 1 bushing [A]
3. Pull the shaft [B] part way out at the gear end, so that the pick-up roller [C] can
be taken off.
3.5 FEED BELT
1. Feed unit ( 1.2)
2. Pick-up roller housing [D]
3. Push down on the lower wings [E] of the tensioning piece [F], so that the
tensioning piece comes free of the shaft.
4. Take the tensioning piece out, and then remove the belt [G].
