INSTALLATION
SM 5 B620
Fax Option
B620
10. When installing the optional fax with the optional printer/scanner, install the
keys as follows:
NOTE: See step 9 when installing the optional fax without the optional
printer/scanner.
1) Remove the dummy cover (from the basic operation panel) and install the
copy key [A] or [a].
2) Remove the dummy panel (from the basic operation panel) and install the
fax panel [B].
3) Install the scanner key [C] or [c] on the optional operation panel.
4) Install the fax panel [D] on the optional operation panel.
5) Install the fax key [E] or [e] on the optional operation panel.
6) Remove the dummy panel (from the basic panel) and install the printer panel
[F].
7) Install the printer key [G] or [g] on the basic operation panel.

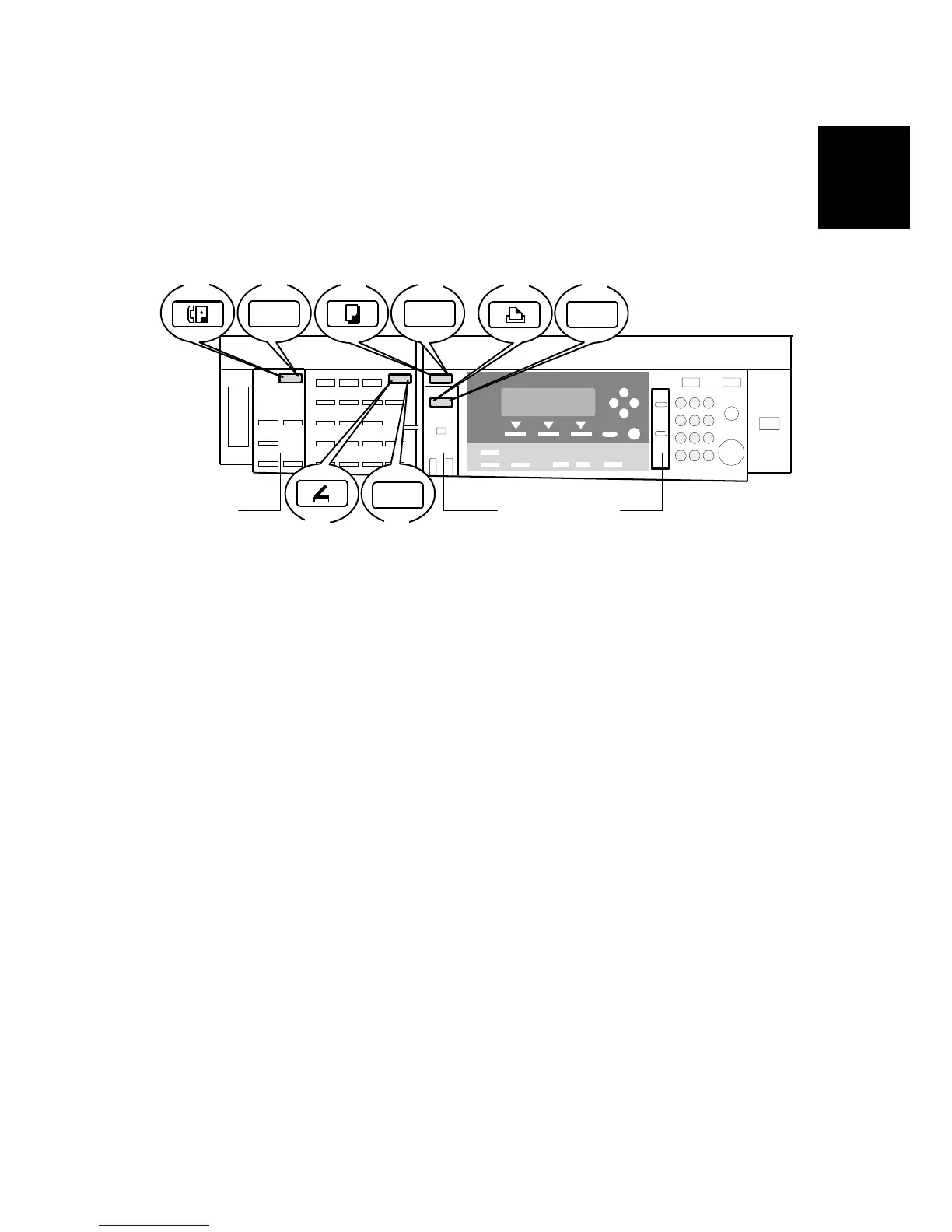

Copy
Scanner
PrinterFacsimile
B620I902.WMF
[A]
[a]
[G]
[g]
[E]
[e]
[C] [c]
[D] [B][F]
