Chapter 9 EtherNet/IP Communications

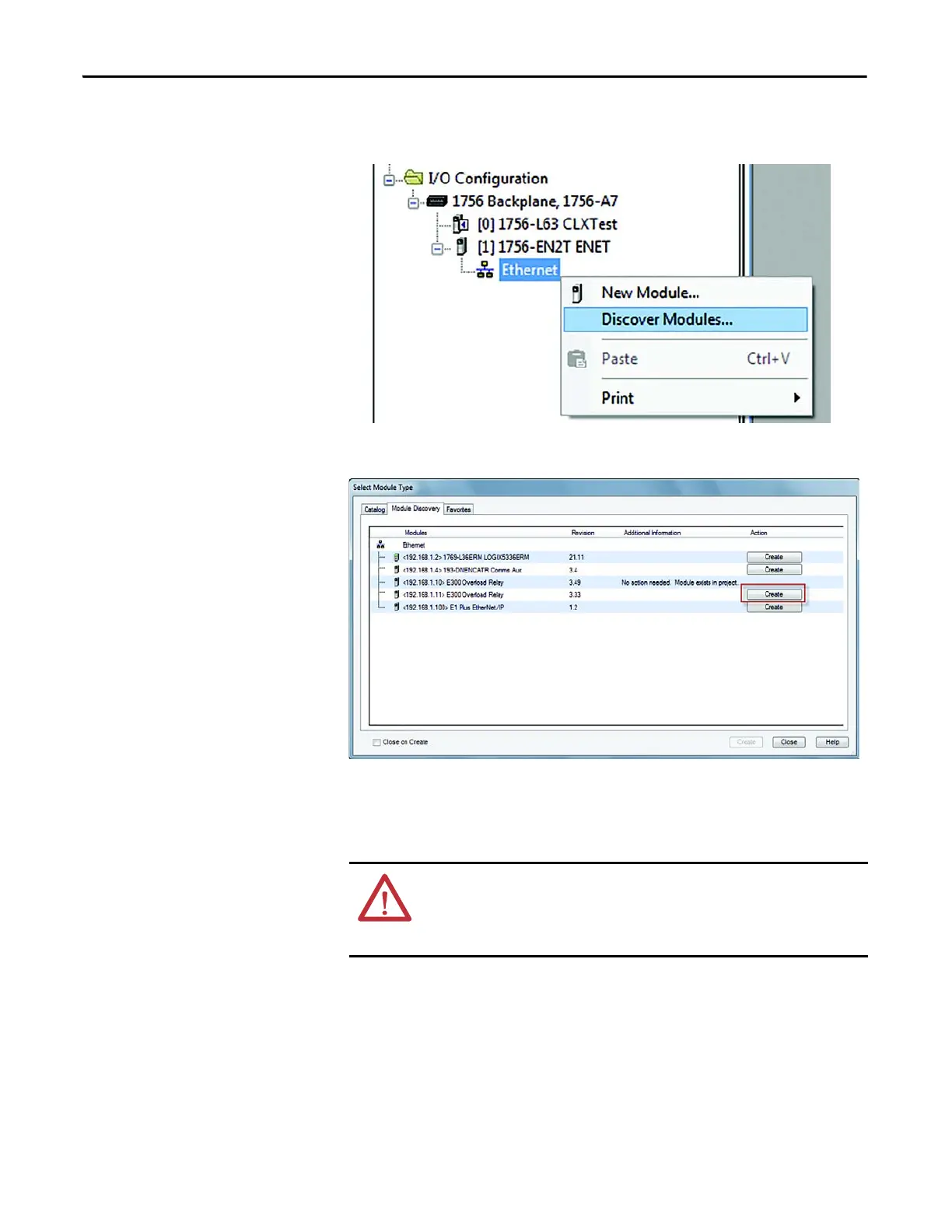

2. Right click on the Ethernet tree of the EtherNet/IP scanner that is in the
ControlLogix chassis and select Discover Modules.
3. Choose the E300 Electronic Overload Relay to be added to the EtherNet/
IP scanner’s scan list and press Create.
4. You will be prompted whether you would like to upload the configuration
settings from the E300 Electronic Overload Relay. Press Upload to read the
configuration settings from the E300 Electronic Overload Relay.
ATTENTION: If an Upload command is not performed during Module
Discovery, any preconfigured E300 Electronic Overload Relay configuration data
will not be retained when adding an E300 Electronic Overload Relay online to a
ControlLogix project.
